Noga AD4000 Quick Release

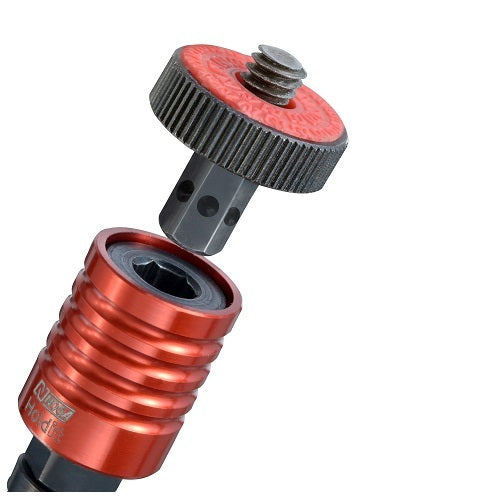

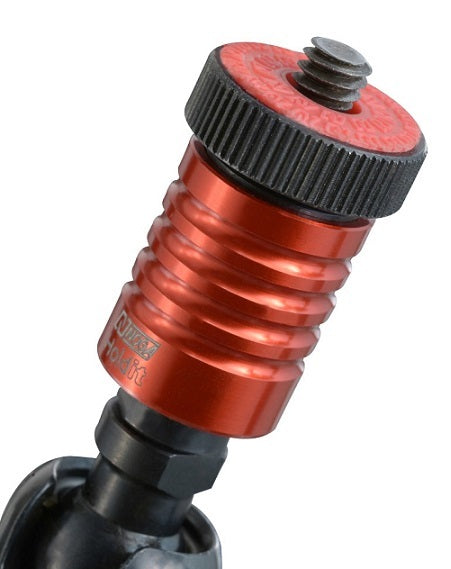

Noga AD4000 is a quick release attachment for Noga arms: pull back the red sleeve and slot the arm into the attachment.

It enables a quick change of equipment without having to fiddle with screws and threads, and that a range of Noga arms can hold it. It has an external M6 thread at the bottom and an external 1/4" UNC thread at the top.

Where this product is used

• Quick change of equipment on a Noga arm without screws or threads

Features

• Red sleeve: pull back and slot in the Noga arm
• Bottom external thread M6
• Top external thread 1/4" UNC
• Can be held by a range of Noga arms

Key specifications

Choosing the right option

Check the threads before choosing: the AD4000 has an external M6 thread at the bottom and an external 1/4" UNC thread at the top. For other thread combinations see the Noga AD6060 M6 x M6 Adaptor, Noga AD6080 M6 x M8 Adaptor, Noga AD8030 3/8" x M8 Adaptor and Noga AD8080 M8/M8 Adaptor.

Noga thread adaptors: Noga AD6060 M6 x M6 Adaptor, Noga AD6080 M6 x M8 Adaptor, Noga AD8030 3/8" x M8 Adaptor.
