Noga CM1404 5.3mm HSSE-Cobalt 3 Flute 90° Countersink, TiAlN Coated
Available

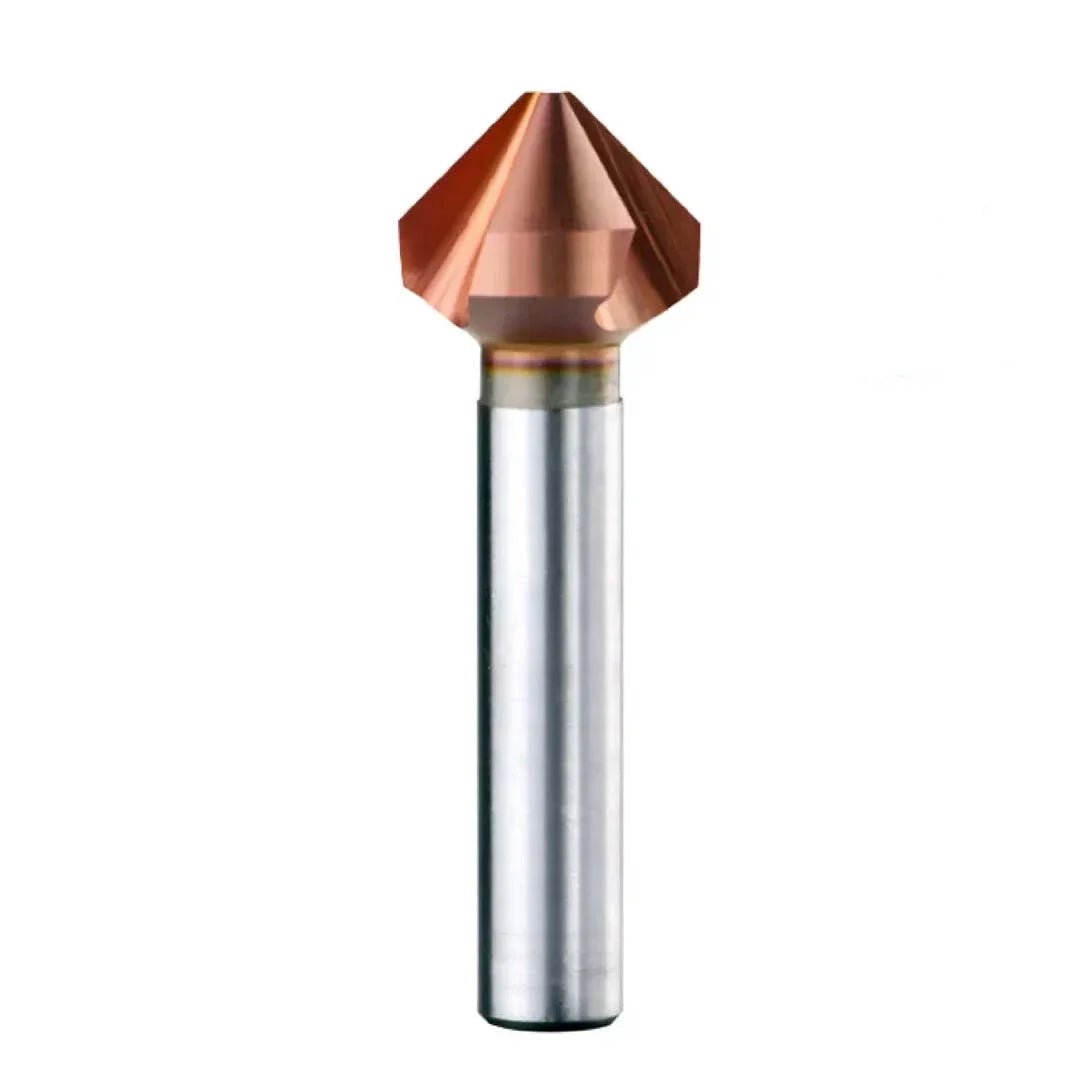

Noga HSSE-Cobalt 3 flute 90° countersinks with TiAlN coating, in head diameters from 5.3mm to 31mm (CM1404 to CM1442). Noga designs its 3 flute machining countersinks for countersinking and deburring (manufacturer-stated).
Noga describes the flutes as wide, for chip evacuation, and says lubrication is recommended while working (manufacturer-stated). Noga marks its 3 flute 90° countersinks with DIN 335C (manufacturer-stated).
Where this product is used
- Countersinking and deburring (manufacturer-stated)
- Noga's material chart gives steel of 1000 - 1300 N/mm2 as first choice for HSSE with TiAlN, with steel of 800 - 1000 N/mm2 and cast aluminium as second choice (manufacturer-stated)
Features
- HSSE (cobalt) with TiAlN coating (manufacturer-stated)
- 3 flutes and a 90° angle (manufacturer-stated)
- Wide flutes for chip evacuation (manufacturer-stated)
- Open groove geometry (manufacturer-stated)
- Lubrication recommended while working (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Type | 3 flute 90° countersink |
| Material and coating | HSSE (cobalt) with TiAlN coating (manufacturer-stated) |
| Flutes | 3 (manufacturer-stated) |
| Angle | 90° (manufacturer-stated) |
| Standard marking | DIN 335C (manufacturer-stated) |
| Head diameters (D) | 5.3 to 31mm |
Key specifications
| Part number (model) | Head diameter D | Tip diameter max d1 | Shank diameter d2 | Overall length L |
|---|---|---|---|---|
| CM1404 | 5.3mm | 1.5mm | 4mm | 40mm |
| CM1409 | 6.3mm | 1.5mm | 5mm | 45mm |
| CM1411 | 6.35mm | 1.5mm | 6.35mm | 45mm |
| CM1414 | 7.93mm | 2mm | 6.35mm | 45mm |
| CM1416 | 8.3mm | 2mm | 6mm | 50mm |
| CM1419 | 9.52mm | 2.5mm | 6.35mm | 50mm |
| CM1421 | 10.4mm | 2.5mm | 6mm | 50mm |
| CM1424 | 12.4mm | 2.8mm | 8mm | 56mm |
| CM1425 | 12.7mm | 2.9mm | 6.35mm | 50mm |
| CM1428 | 15mm | 3.2mm | 10mm | 60mm |
| CM1430 | 15.87mm | 3.2mm | 9.52mm | 60mm |
| CM1431 | 16.5mm | 3.2mm | 10mm | 60mm |
| CM1434 | 19.05mm | 3.5mm | 9.52mm | 60mm |
| CM1437 | 25mm | 3.8mm | 10mm | 67mm |
| CM1438 | 25.4mm | 3.8mm | 9.52mm | 70mm |
| CM1442 | 31mm | 4.2mm | 12mm | 71mm |
Dimensions as printed by Noga for each part number, in mm: D is the head diameter, d1 the maximum tip diameter, d2 the shank diameter and L the overall length. The Diameter (mm) option is the head diameter D.
Selecting the right option
Choose by head diameter D, then check that the shank d2 suits your chuck or holder. Noga's material chart marks abrasive tough steel, hard bronze and treated steel of 60 HRC and over as not suitable for HSSE with TiAlN (manufacturer-stated). For countersink blades for hand deburring tools see the Noga C12 Deburring Countersink Blade; for sets of Noga countersinks see the Noga HSSE-Cobalt Countersink Set - 5 Piece and Noga Solid Carbide Countersink Set - 3 Piece.
Related products
Countersink sets: Noga HSSE-Cobalt Countersink Set - 5 Piece and Noga Solid Carbide Countersink Set - 3 Piece.
