Noga LC6200 Mini Articulated Arm Holder Small Round Magnet
Available

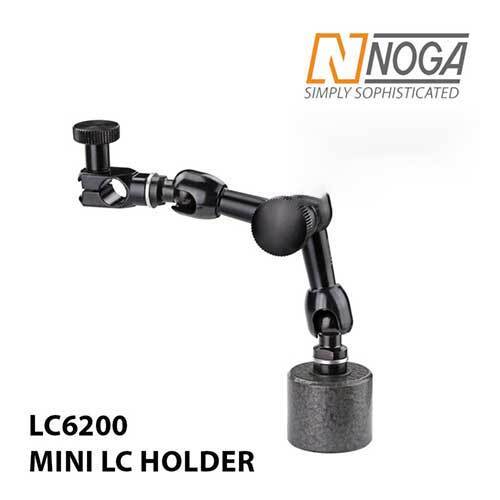

Noga LC6200 is a mini articulated arm holder with a small round permanent magnetic base and an 8mm standard clamp (FA1100). It has a magnet force of 200 N.
The bottom arm is 38mm and the top arm 38mm, 87.5mm overall (L1 + L2 + L3). The round magnet measures ø30 x 25mm and the holder weighs 0.28kg. Noga marks an M5 thread. It is a five axis holder with a central locking mechanism using a Noga designed spring loaded bearing.
Where this product is used
- Holding an 8mm stem and dovetail, instantly and easily fastened in any position
- Setting up dial indicators and test gauges
Features
- Round permanent magnetic base, 200 N magnet force
- Five axis holder
- Central locking mechanism with a Noga designed spring loaded bearing
- Instantly and easily fastens in any position
- Black finished arms
Key specifications
| Specification | Detail |
|---|---|
| Brand | Noga |
| Part number | LC6200 |
| Holder type | Mini articulated arm holder, round permanent magnet |
| Standard clamp | FA1100, 8mm |
| Magnet force | 200 N |
| Magnet size (diameter x height) | ø30 x 25mm |
| Bottom arm (L1) | 38mm |
| Top arm (L2) | 38mm |
| Overall arm length (L1 + L2 + L3) | 87.5mm |
| Thread | M5 (marked by Noga) |
| Weight | 0.28kg |
Choosing the right option
For a longer reach with an on/off magnet see the Noga NF1021 8mm NF Holder (128.5mm overall, 8mm clamp). The LC6200 has a round permanent magnetic base, while the NF1021 has an on/off magnetic base.
Longer NogaFlex mini holder with an on/off magnet, 8mm clamp: Noga NF1021 8mm NF Holder.
Arm only, no magnet: Noga LC6100 Dial Gauge Arm.
8mm clamp: Noga FA1100 Top Attachment With No Fine Adjustment M6 Thread W/ 8mm Clamp.
