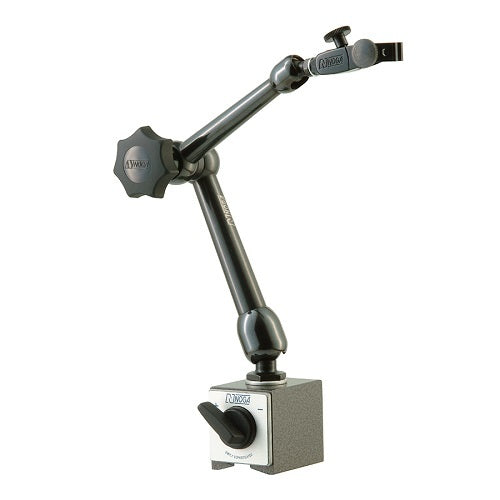

Noga MG61003 Dial Gauge Holder with Articulated Fine Adjustment
Available
It has a magnet force of 800 N. This listing is the Noga MG61003 Dial Gauge Holder with Articulated Fine Adjustment: bottom thread External M8, overall arm length 317mm, magnet force 800 N.
The bottom arm is 133mm and the top arm 113mm, 317mm overall (L1 + L2 + L3). The magnet measures 50 x 60 x 55mm (W x L x H) and the holder weighs 1.9kg. MG6150 Heavy Duty Holder Set with this holder and a DG1000 indicator.
Where this product is used
- Holding a dial or test indicator on an articulated arm with fine adjustment
- Setting up dial indicators and test gauges
Features
- Magnet force 800 N
- External M8 bottom thread
- 317mm overall arm length
- Part of Noga Heavy Duty Holder Set MG6150 with a DG1000 indicator
Key specifications
| Specification | Detail |
|---|---|
| Brand | Noga |
| Part number | MG61003 |
| Range | Fine Adjustment Top |
| Bottom thread | External M8 |
| Magnet force | 800 N |
| Magnet size (W x L x H) | 50 x 60 x 55mm |
| Bottom arm (L1) | 133mm |
| Top arm (L2) | 113mm |
| Overall arm length (L1 + L2 + L3) | 317mm |
| Weight | 1.9kg |
Choosing the right option
The MG61003 has 133mm and 113mm arms (317mm overall) and an 800 N magnet. The Noga DG61003 Dial Gauge Holder with Articulated Fine Adjustment is shorter (282mm overall) and the Noga MG71003 Dial Gauge Holder with Articulated Fine Adjustment longer (347.5mm), both with the same size of magnet. The Noga MG6150 Heavy Duty Holder Set pairs this holder with a DG1000 indicator, and the Noga MG6161 MG Holder with Double Fine Adjustment is the Fine Adjustment Top & Base version with the same arm lengths. For the arm alone see the Noga MG60103 Articulated Arm Only 133mm & 113mm (No Magnet) Suits MG61003.
Set with a DG1000 indicator: Noga MG6150 Heavy Duty Holder Set.
Same arm without a magnet: Noga MG60103 Articulated Arm Only 133mm & 113mm (No Magnet) Suits MG61003.
Other lengths: Noga DG61003 Dial Gauge Holder with Articulated Fine Adjustment, Noga MG71003 Dial Gauge Holder with Articulated Fine Adjustment.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Noga MG61003 Dial Gauge Holder with Articulated Fine Adjustment
SKU: A0112619 | Model: MG61003
Noga MG61003 is a dial gauge holder. Magnet force: 800 N. Bottom thread: External M8.
