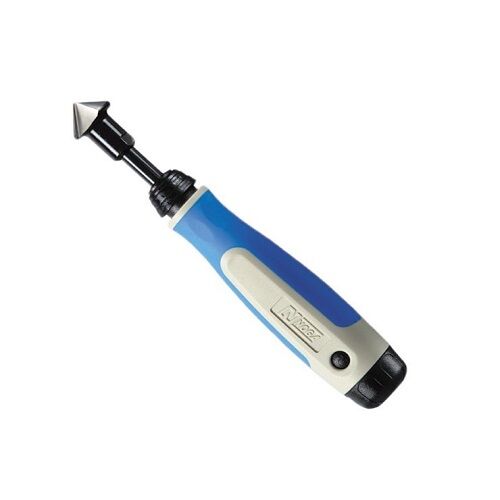

Noga NG3100 Countersink Deburring Tool
Available
Noga NG3100 is a countersink deburring tool: an NG-3 handle with a C holder and a C20 countersink (20mm).
It is useful for chamfering deep holes. The C20 blade has a 3-20mm range and a 90° angle, and the C holder (CH3000) holds C12, C20 and C30 countersinks on an M7 external thread, length 131mm.
Where this product is used
- Countersinking and chamfering deep holes
Features
- NG-3 handle with C holder and C20 countersink
- C20 range 3-20mm, 90°
- C holder holds C12, C20 and C30 countersinks
- Handle: NG-3 (NogaGrip-3)
Key specifications
| Specification | Detail |
|---|---|
| Brand | Noga |
| Part number | NG3100 |
| Handle | NG-3 (NogaGrip-3) |
| Holder | C holder CH3000, M7 external thread, length 131mm |
| Countersink | C20 (20mm), range 3-20mm, 90° |
| Blade material | H.S.S., hardness 62-64Rc |
Choosing the right option
The NG3100 comes with the C20. The C holder is holding the C12 (1-12mm), C20 (3-20mm) and C30 (3-30mm) countersinks, so the range can be changed by changing the blade. Replacement blade and holder: Noga C20 Deburring Countersink Blade and Noga CH3000 Countersink Blade C Holder M7 x 131mm.
Replacement blade and holder: Noga C20 Deburring Countersink Blade, Noga CH3000 Countersink Blade C Holder M7 x 131mm.
Handle only: Noga NG3000 NG-3 Handle (Holds All Blade Holders).
Power tool countersink set: Noga CS7000 Countersink Power Tool Set.
