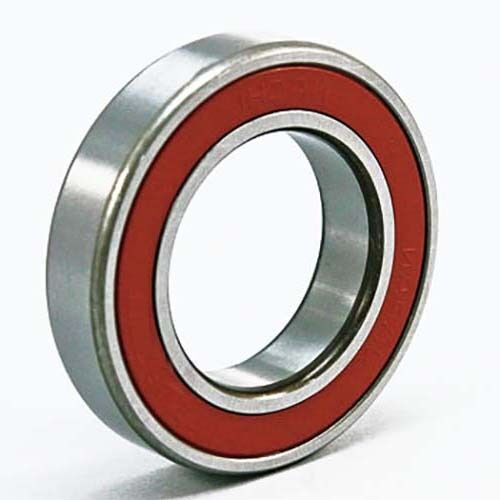

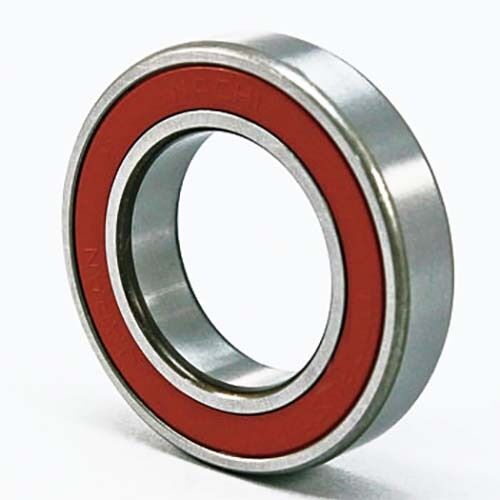

NTN 6013-2NSE Deep Groove Ball Bearing Rubber Seal 65 x 100 x 18mm
Available
This is a clearance sale and there are no returns. Please contact us if you need more details or to inspect the item before purchase.
NTN 6013-2NSE. Deep Groove Ball Bearings. Deep Groove Ball Bearings use balls to maintain separation between the inner and out bearing races. Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements. Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.
Key Specifications
| Bore x Outer Diameter x Width | 65 x 100 x 18mm |
| Width B (mm) | 18 |
| Basic Load Rating Dynamic Cr (kN) | 30.5 |
| Basic Load Rating Static C0r (kN) | 25.2 |
| Limiting Speed, Grease (rpm) | 4000 |
| Limiting Speed, Oil (rpm) | 8000 |

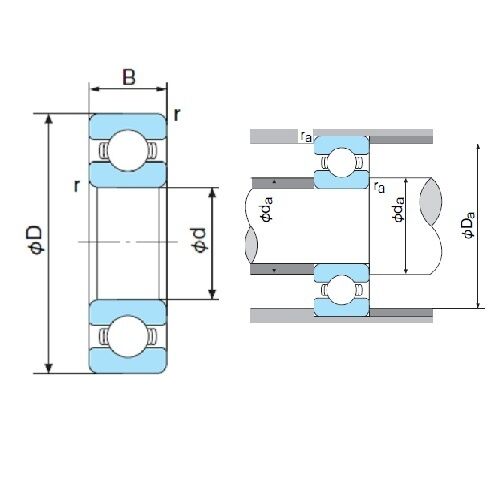

| r min (mm) | 1.1 |
| Abutment/Fillet Dimension (mm) | 71 |
| Measurement System | Metric |
Where This Is Used
- Industrial Machinery
- Mining
- Agriculture
- Manufacturing
- Conveyor Systems
Features
- NTN deep groove ball bearing with rubber seals provides reliable radial and axial load support with contact-seal contamination protection
- Electric motors, pumps, and fans requiring reliable, low-noise bearing support in dusty or contaminated environments
- Gearboxes, conveyors, and material handling equipment exposed to dirt, dust, or moisture
- Automotive, agricultural, and construction equipment rotating assemblies
- Rubber contact seals exclude contaminants and retain lubricant better than an open or shielded bearing, at the cost of slightly higher running friction
- Specify the bore diameter, outer diameter, and width to match the shaft and housing before ordering
