Finer Power one Piece Split Clamp Rigid Coupling MCLX-6-6
Available

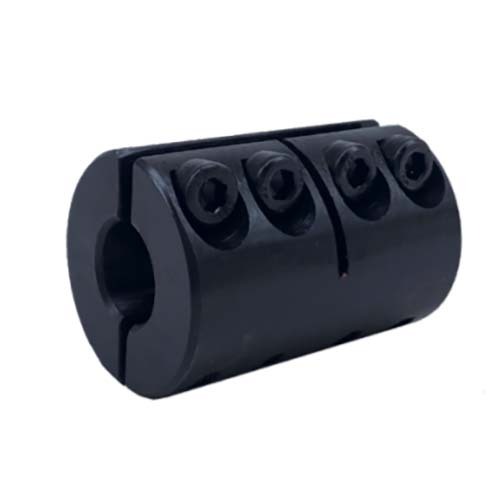

These are one-piece split rigid couplings, clamp type, metric, steel with a black oxide finish, in sizes MCLX-6-6 to MCLX-50-50 with bores of 6 to 50mm. Clamp style rigid couplings wrap around the shaft and give high torsional holding power without the shaft damage and fretting that occurs when set screw style couplings are used.
The one-piece split design is a single clamp body that is slit and closed onto the shaft by the clamp screw.
Where this product is used
- Joining two shafts of the same diameter end to end
- Joining small and medium shafts in drives and machinery
- Light drives where a rigid connection is needed
- Replacing set screw couplings where shaft damage and fretting are a concern
Features
- Clamp type rigid coupling with high torsional holding power
- No set screw damage or fretting on the shaft
- One-piece split design
- Metric sizes, bores 6 to 50mm
- Steel with a black oxide finish
Key specifications
| Specification | Detail |
|---|---|
| Sizes | MCLX-6-6 to MCLX-50-50 (13 models) |
| Type | Clamp type rigid coupling, one piece split |
| System | Metric |
| Bore range | 6 to 50mm |
| Material | Steel, black oxide finish |
| A | 18 to 85mm |
| B | 30 to 124mm |
| C | 21.5 to 94.2mm |
Sizes available

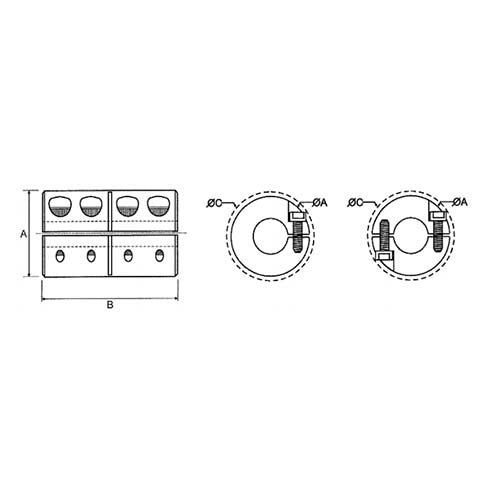

| Part number | Bore (mm) | Split pieces | A (mm) | B (mm) | C (mm) |
|---|---|---|---|---|---|
| MCLX-6-6 | 6 | 1 | 18 | 30 | 21.5 |
| MCLX-8-8 | 8 | 1 | 24 | 35 | 27.1 |
| MCLX-10-10 | 10 | 1 | 29 | 45 | 33 |
| MCLX-12-12 | 12 | 1 | 29 | 45 | 33 |
| MCLX-14-14 | 14 | 1 | 34 | 50 | 39.4 |
| MCLX-15-15 | 15 | 1 | 34 | 50 | 39.4 |
| MCLX-16-16 | 16 | 1 | 34 | 50 | 39.4 |
| MCLX-20-20 | 20 | 1 | 42 | 65 | 48.9 |
| MCLX-25-25 | 25 | 1 | 45 | 75 | 51.5 |
| MCLX-30-30 | 30 | 1 | 53 | 83 | 58.7 |
| MCLX-35-35 | 35 | 1 | 67 | 95 | 74.7 |
| MCLX-40-40 | 40 | 1 | 77 | 108 | 84 |
| MCLX-50-50 | 50 | 1 | 85 | 124 | 94.2 |
Choosing the right option
Choose the bore to match the shaft.
Fit the coupling over both shaft ends with the shafts aligned, and tighten the clamp screws evenly. Align the two shafts as closely as you can before fitting the coupling, and check the alignment again once the coupling is fitted. Good alignment gives the longest life, whatever the coupling type.
| Option | Part number | SKU |
|---|---|---|
| 6 | MCLX-6-6 | A0150933 |
| 8 | MCLX-8-8 | A0150934 |
| 10 | MCLX-10-10 | A0150935 |
| 12 | MCLX-12-12 | A0150936 |
| 14 | MCLX-14-14 | A0150937 |
| 15 | MCLX-15-15 | A0150938 |
| 16 | MCLX-16-16 | A0150939 |
| 20 | MCLX-20-20 | A0150940 |
| 25 | MCLX-25-25 | A0150941 |
| 30 | MCLX-30-30 | A0150942 |
| 35 | MCLX-35-35 | A0150943 |
| 40 | MCLX-40-40 | A0150944 |
| 50 | MCLX-50-50 | A0150945 |
