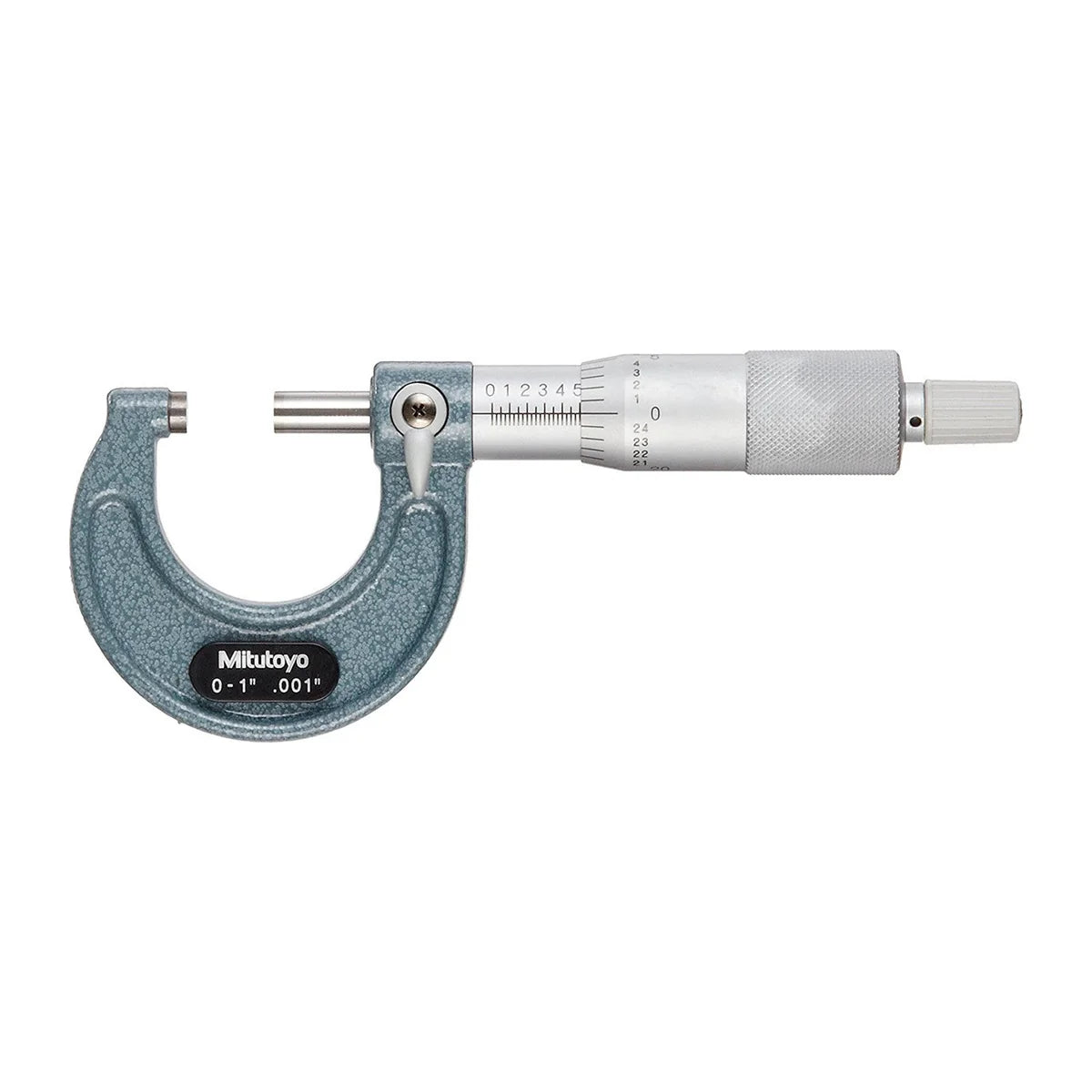

Mitutoyo 103-177 Inch Outside Micrometer 0-1"

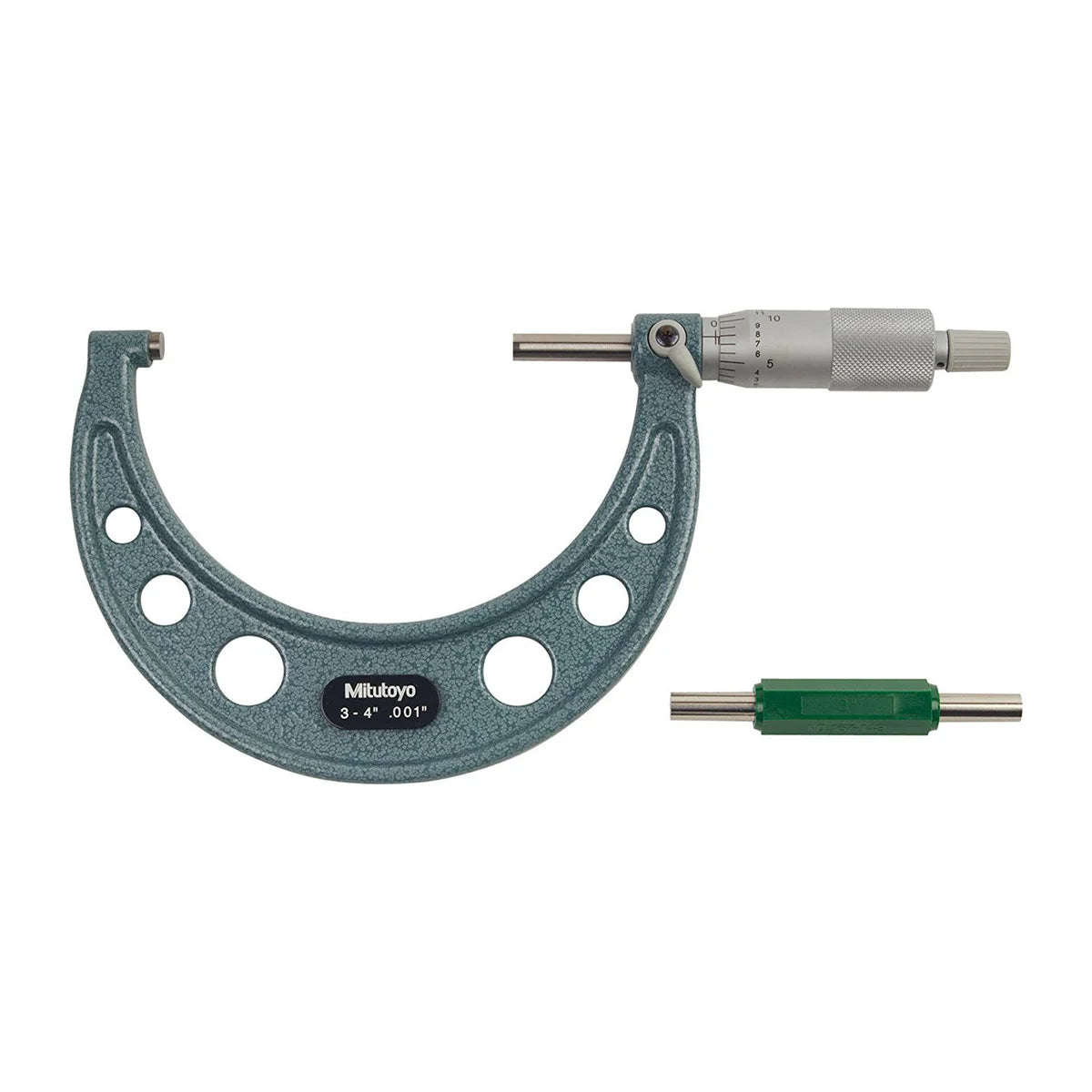

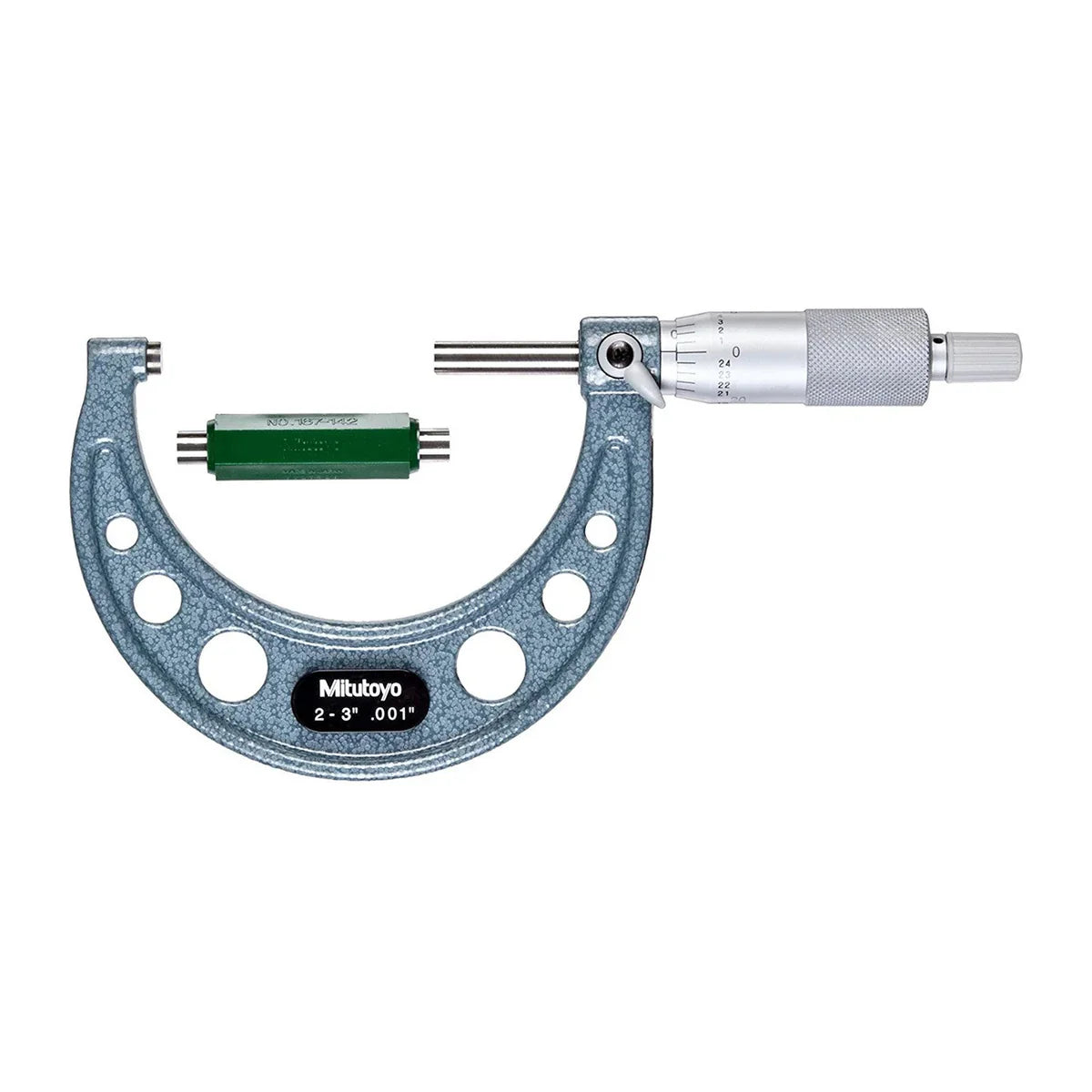

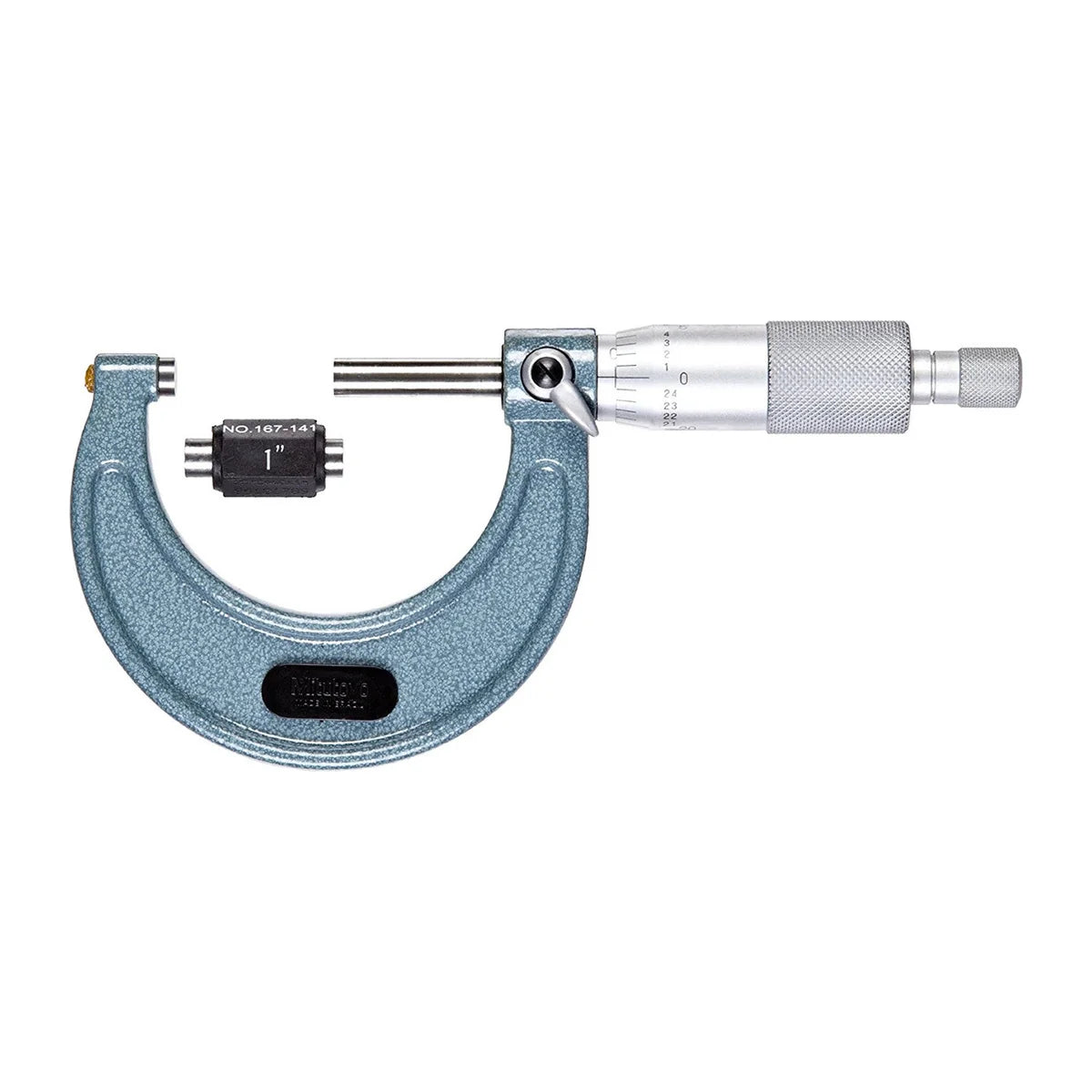

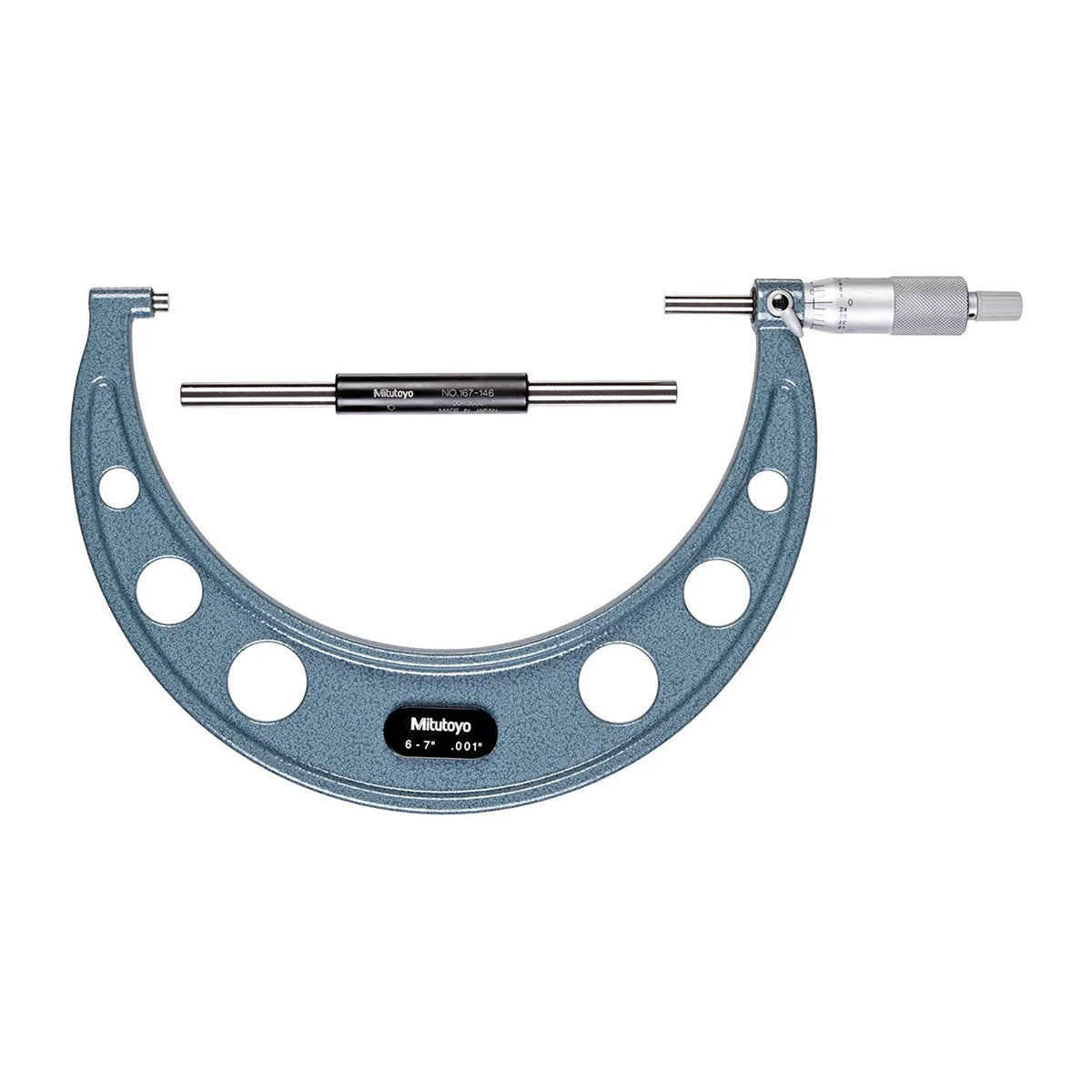

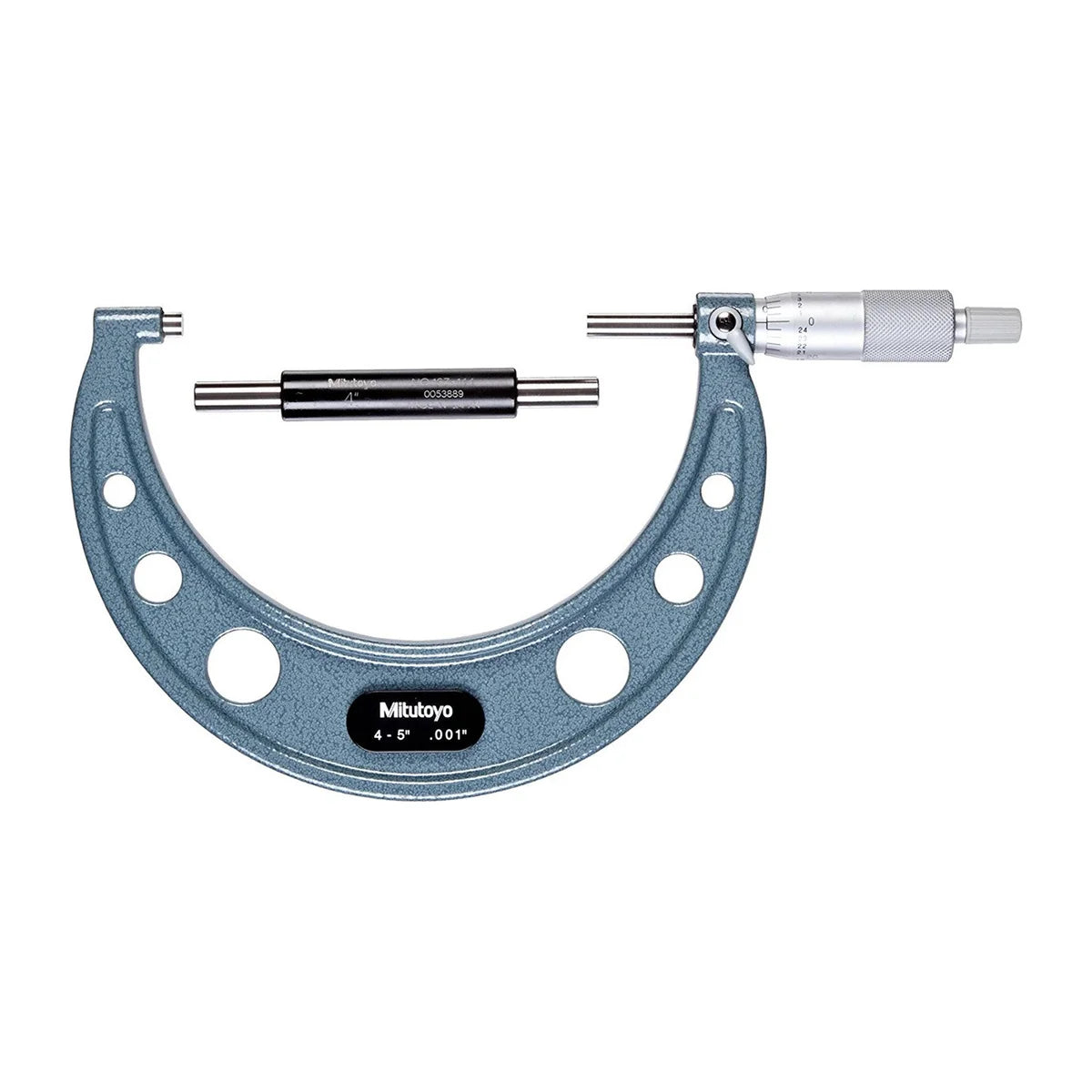

The Mitutoyo Series 103 inch outside micrometer measures the outside diameter or thickness of a part to 0.001". It suits toolrooms, quality control, machinists and fitters who work from inch drawings. It has carbide-tipped measuring faces and a ratchet stop, which gives the same measuring force each time. It comes in six sizes, from 0 to 1" up to 5 to 6".

Graduation is the smallest step you can read on the scale. Accuracy is a separate figure. It is the maximum permissible error, which is the most the reading is allowed to be out. On these six sizes the maximum permissible error is ±0.0001" up to 3" and ±0.00015" from 3 to 6". Pick the size whose range covers your part. If you need to read finer than 0.001", separate 0.0001" models under other part numbers.

Where this product is used

• Measuring outside diameters and thicknesses from inch drawings
• Checking turned, ground and machined parts in a workshop or toolroom

Features

• Graduation of 0.001" on all six sizes
• Carbide-tipped measuring faces
• Ratchet stop for a constant measuring force of 5 to 10 N
• Maximum permissible error of ±0.0001" up to 3" and ±0.00015" from 3 to 6"
• Flatness of 0.000024"
• Parallelism of 0.00008" up to 3" and 0.00012" from 3 to 6"
• Lightweight workshop design with a baked-enamel-finished frame

Key specifications

Supplied with

• Outside micrometer
• Spanner (301336)
