Mitutoyo 103-904-10 Inch Micrometer Set 0-6"

The Mitutoyo 103-904-10 is a set of six Series 103 analog inch outside micrometers that together measure from 0 to 6". It suits a toolroom, inspection bench or machine shop that works in inches and wants every size from 0 to 6" on hand. Each micrometer reads to 0.001" and has carbide-tipped faces and a ratchet stop.

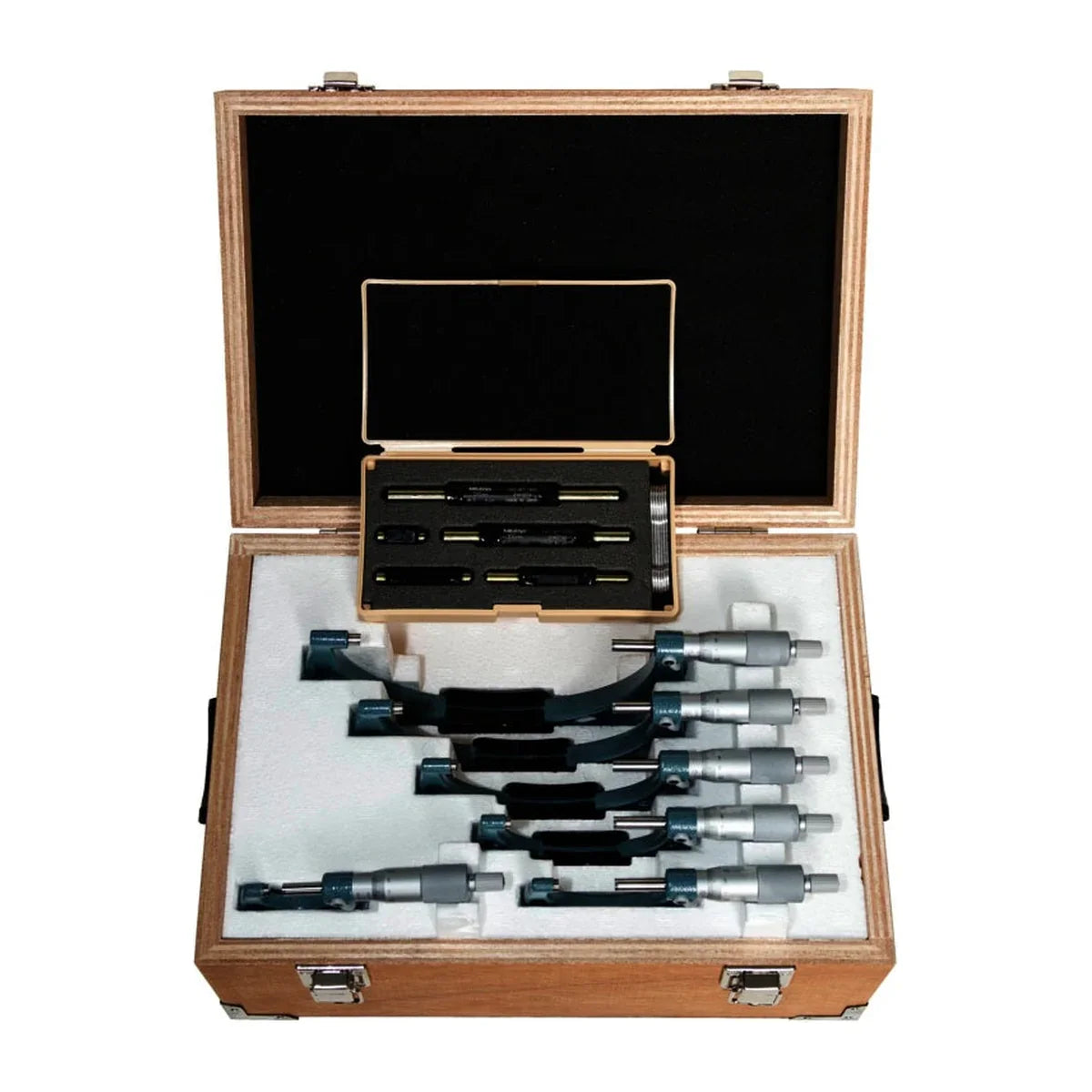

The set holds the 0 to 1", 1 to 2", 2 to 3", 3 to 4", 4 to 5" and 5 to 6" micrometers (103-177 to 103-182). The set also includes 5 micrometer standards. Graduation is the smallest step you can read on the scale. Accuracy is a separate figure. It is the maximum permissible error, which is the most the reading is allowed to be out. The first three micrometers are ±0.0001" and the last three are ±0.00015".

Where this product is used

• Covering every inch size from 0 to 6" with one purchase
• Toolroom and inspection benches that measure inch parts every day

Features

• Six micrometers covering 0 to 6"
• Graduation of 0.001" on every micrometer
• Carbide-tipped measuring faces and a ratchet stop on each
• Maximum permissible error of ±0.0001" up to 3" and ±0.00015" from 3 to 6"
• Flatness of 0.000024" and a measuring force of 5 to 10 N
• The set also includes 5 micrometer standards

Key specifications

Supplied with

• Six micrometers: 103-177, 103-178, 103-179, 103-180, 103-181, 103-182
• 5 micrometer standards
