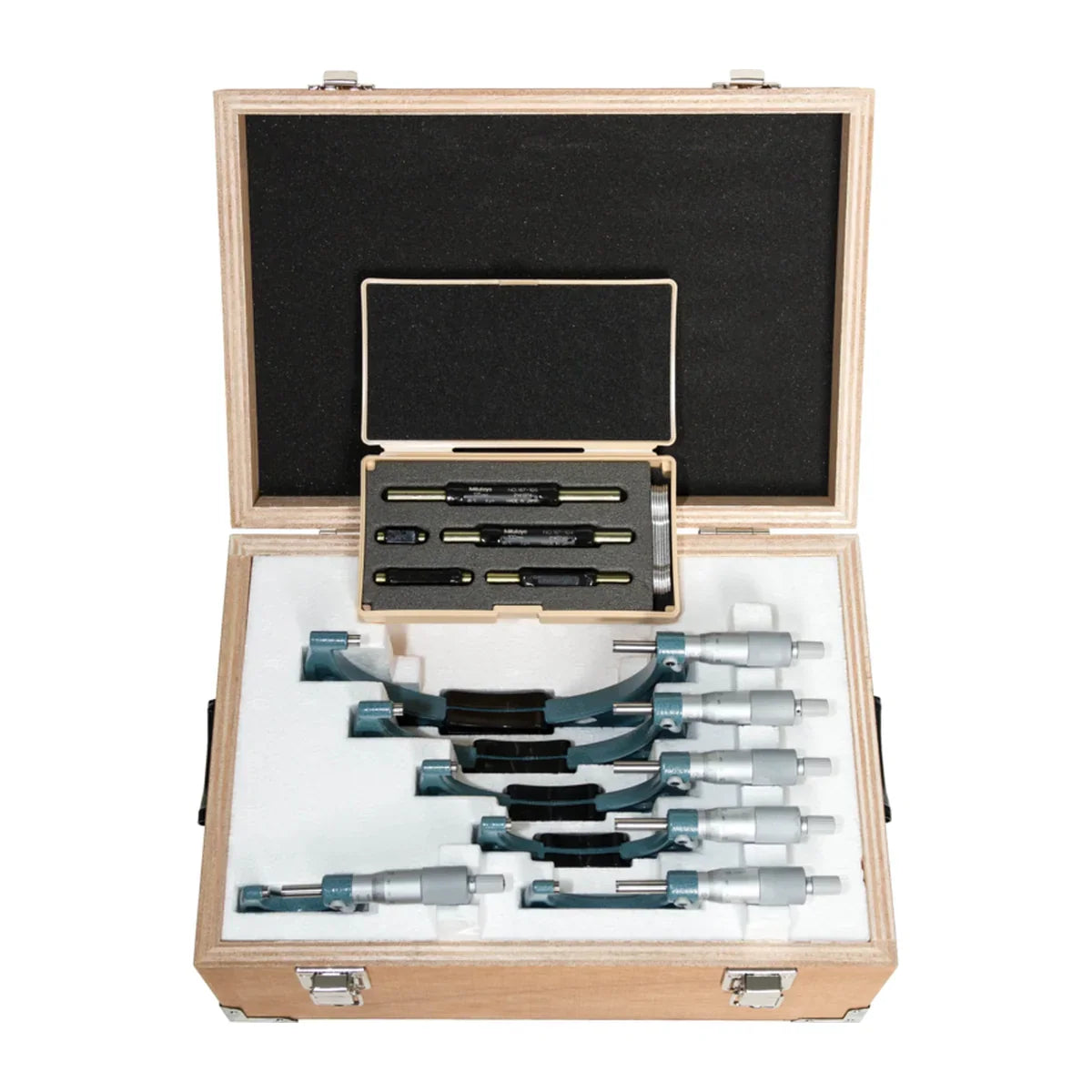

Mitutoyo 103-913-50 Micrometer Set, 0 - 150mm

Mitutoyo Series 103 outside micrometer sets put a full run of sizes in one box. Each set holds ordinary analog micrometers with a baked-enamel-finished frame, carbide-tipped measuring faces and a ratchet stop. The ratchet stop gives a constant measuring force, so a reading repeats whoever turns the thimble. Toolrooms, quality control, machinists and fitters use sets like this to check outside diameters and thicknesses across a wide range.

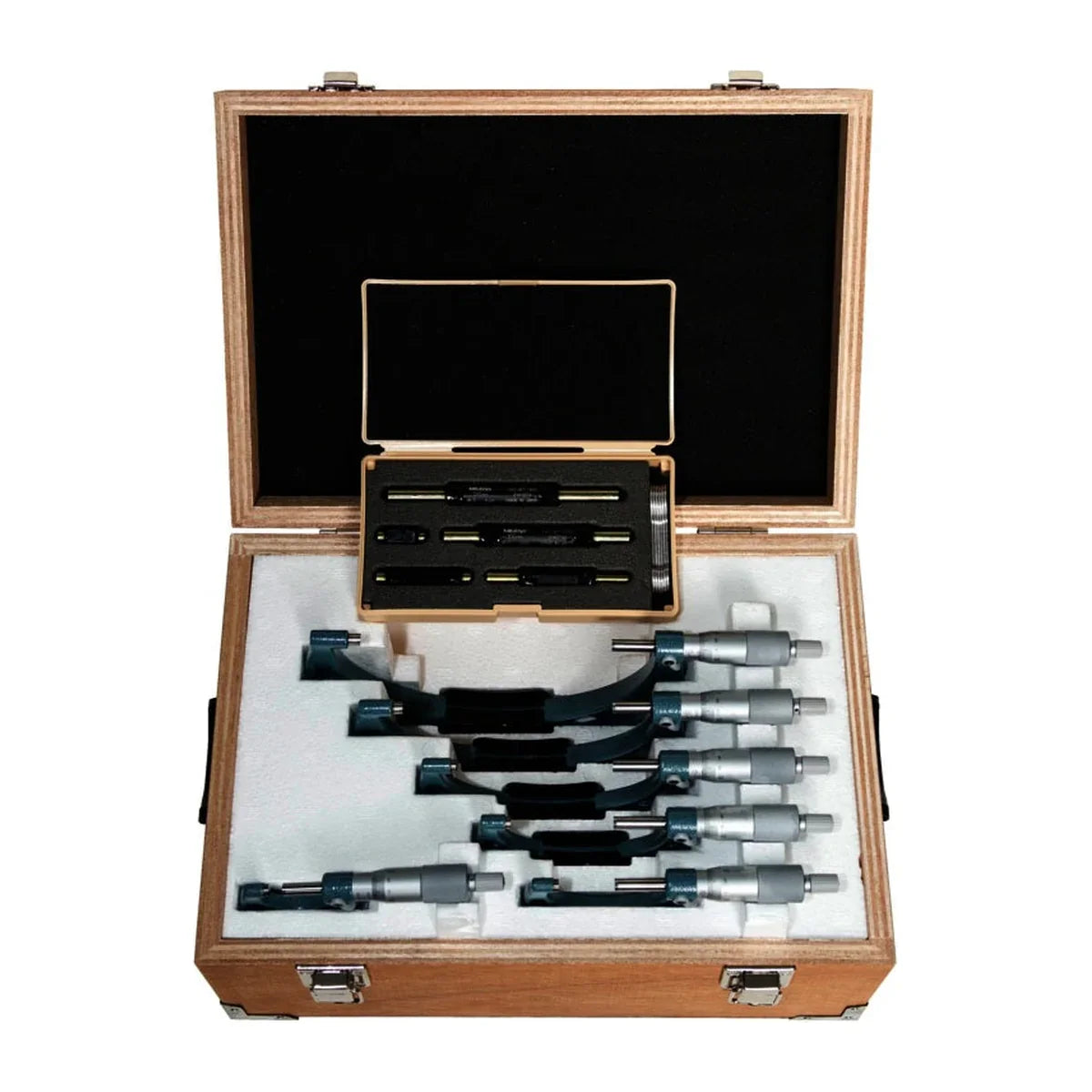

Every micrometer reads to a graduation of 0.01mm. Graduation is the smallest step marked on the scale. Accuracy is a separate figure: it is the biggest error Mitutoyo allows, so do not read a fine graduation as a promise of that accuracy. Choose 0 - 150mm for everyday work, 150 - 300mm for larger parts, or 0 - 300mm if you want both sets together. The 0 - 300mm set is the two smaller sets in one.

Where this product is used

• Checking outside diameters and thicknesses in a toolroom or workshop
• Quality control and inspection of machined parts
• Fitting and maintenance work across a range of sizes

Features

• Sets of 6 micrometers (0 - 150mm and 150 - 300mm) or 12 micrometers (0 - 300mm)
• Graduation of 0.01mm on every micrometer
• Ratchet stop for constant, repeatable measuring force
• Carbide-tipped measuring faces with a micro-lap finish
• Spindle lock, and a satin chrome thimble and sleeve 18mm in diameter
• Baked-enamel-finished frame

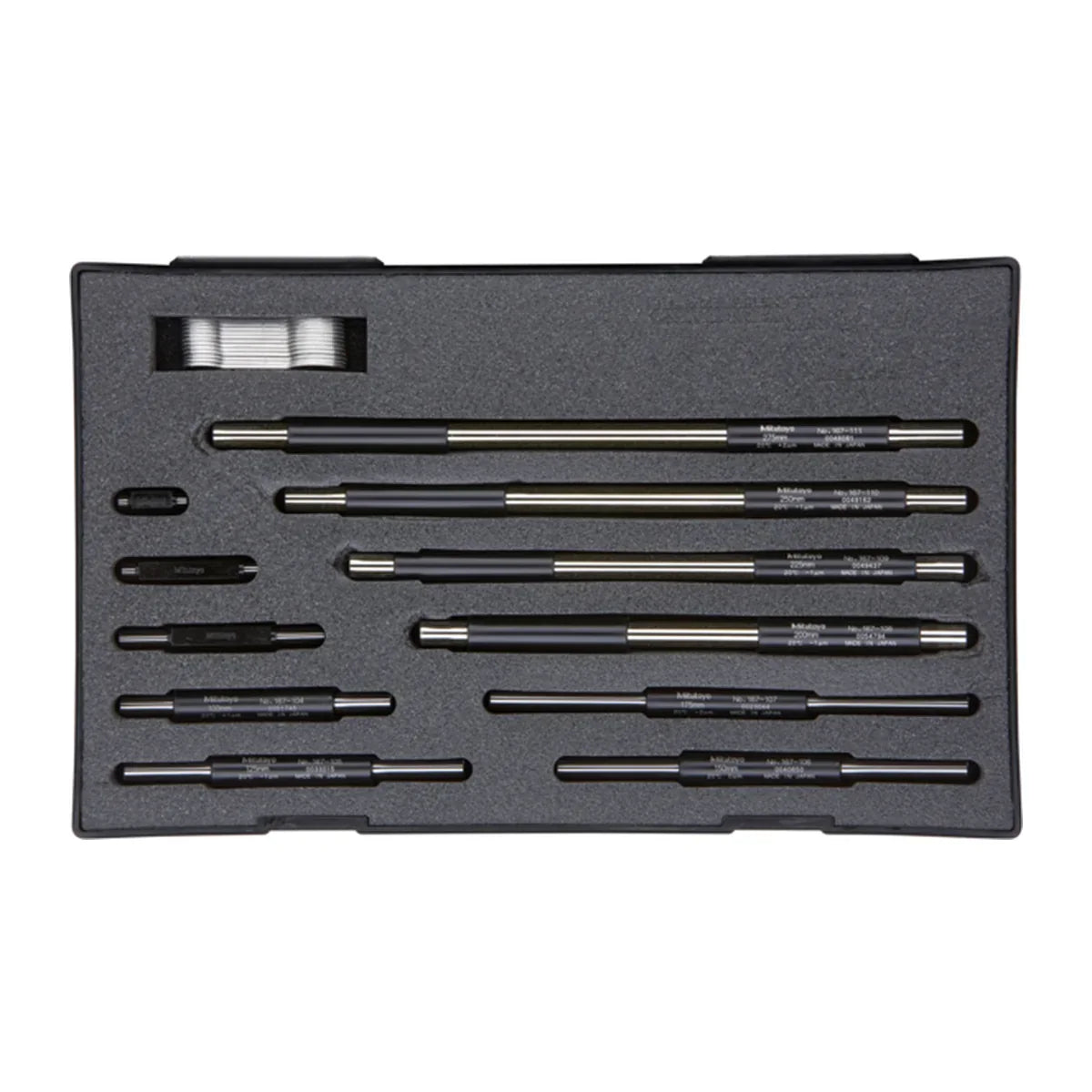

• Micrometer standards supplied with the sets for checking zero
• The 0 - 150mm set comes with a certificate of inspection for its 0 - 25mm and 25 - 50mm micrometers
