Mitutoyo 104-149 Micrometer, 0 - 4" Interchangeable

Mitutoyo Series 104 imperial outside micrometers cover a wide span with one frame. You swap the anvil to move the measuring range, and use the supplied setting standards to set zero. Toolrooms, quality control teams and machine shops that work in inches use them for shafts, tubing thickness, shoulder-edge distance and rivet height. They are analog, with a graduation of .001" on the scale.

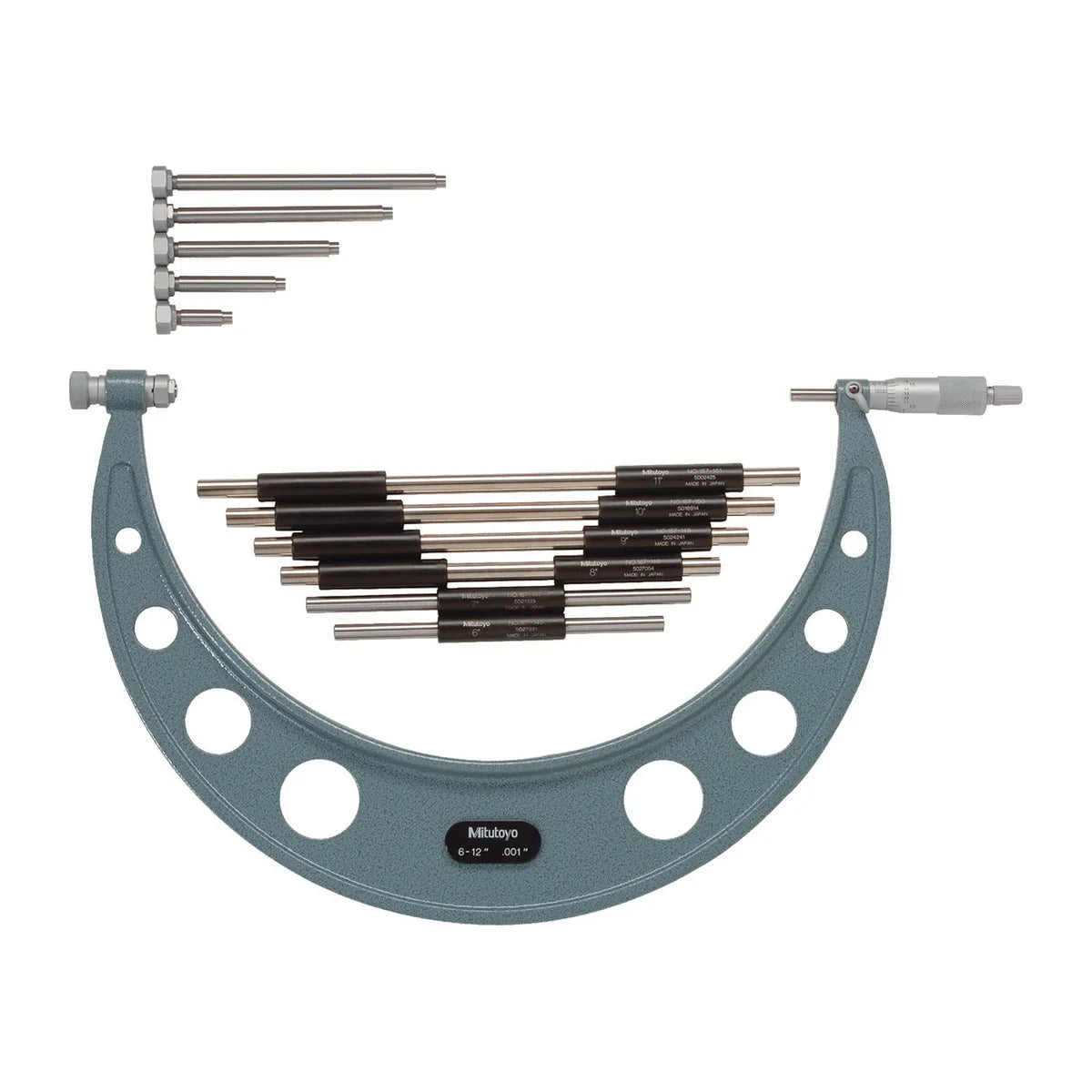

An anvil is the fixed measuring face, and a setting standard is a precisely sized bar used to check zero. Graduation is the smallest step marked on the scale. Accuracy is a separate figure: it is the biggest error Mitutoyo allows, so do not read a fine graduation as a promise of that accuracy. Choose 0 - 4" if you only need the smaller sizes and want a lighter instrument, 0 - 6" for general work, or 6 - 12" for larger parts.

Where this product is used

• Measuring shafts, blocks and bores outside diameters in inches
• Checking tubing thickness, shoulder-edge distance and rivet height
• Toolroom and quality control inspection

Features

• Interchangeable anvils give a wide measuring span from one frame
• Graduation of .001"
• Carbide-tipped micro-lap finish spindle
• Setting standards supplied for zero setting on each range
• Spindle lock, with a measuring force of 5 - 10 N
• Satin chrome thimble and sleeve 18mm in diameter

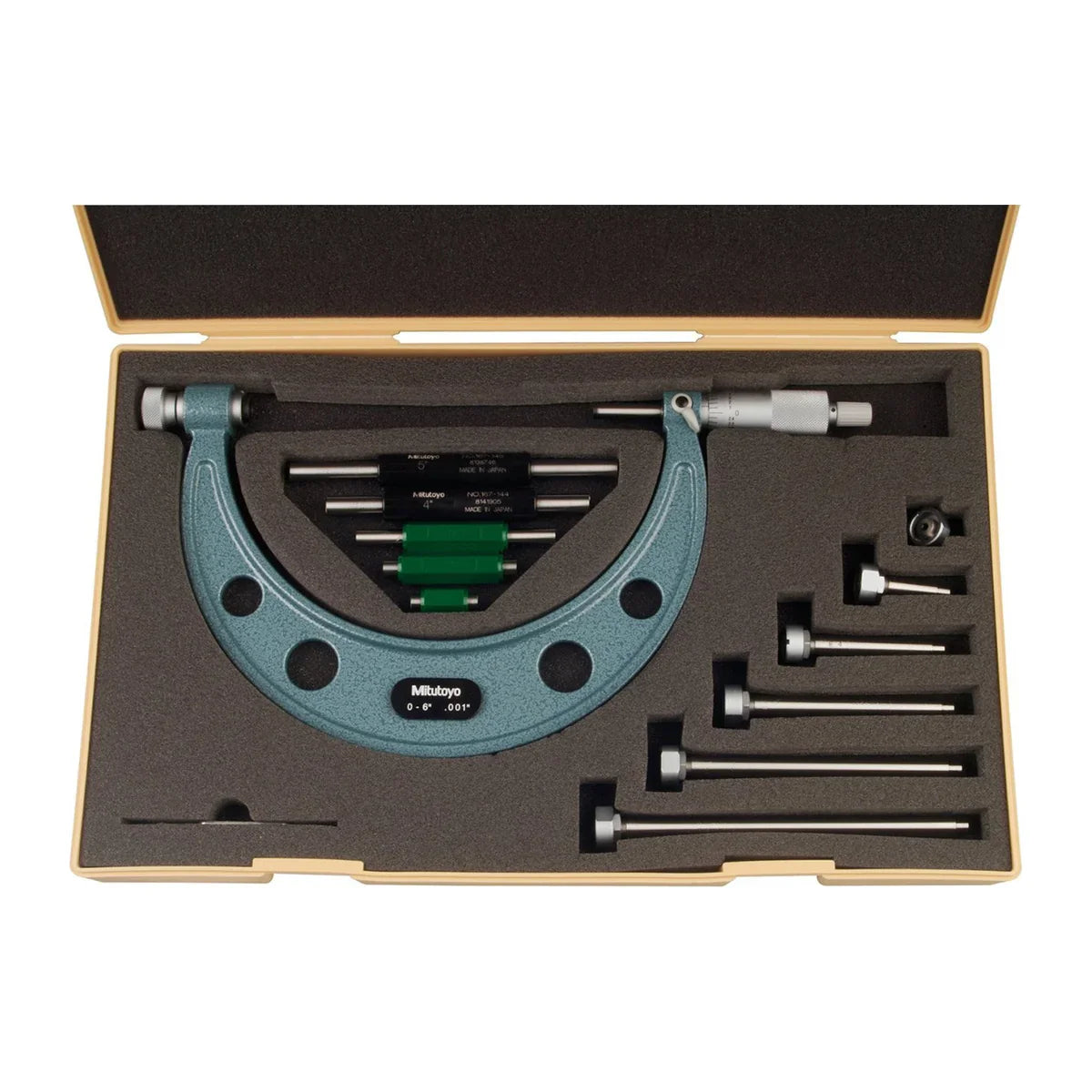

• Supplied in a box with a key
• The 0 - 6" and 6 - 12" models use a ratchet stop, and the 0 - 4" model uses a friction thimble, for repeatable force
