Mitutoyo 104-136A Micrometer, 150 - 300mm Anvils

Mitutoyo Series 104 metric outside micrometers cover a wide span with one frame. You swap the anvil to move the measuring range, and use the supplied setting standards to set zero. Toolrooms, quality control teams and machine shops use them on shafts, tubing and larger fabrications. They are analog, with a graduation of 0.01mm on the scale.

An anvil is the fixed measuring face, and a setting standard is a precisely sized bar used to check zero. Graduation is the smallest step marked on the scale. Accuracy is a separate figure: it is the biggest error Mitutoyo allows, so do not read a fine graduation as a promise of that accuracy. The series accuracy is ±(4+R/75)µm, where R is the maximum range in mm. Pick the range that fits your parts: 0 - 100mm and 0 - 150mm for everyday work, and 100 - 600mm for larger parts.

Where this product is used

• Measuring shafts, blocks and tubing in a toolroom or workshop
• Quality control and inspection of larger machined parts
• Fitting and maintenance work on parts up to 600mm

Features

• Interchangeable anvils give a wide measuring span from one frame
• Graduation of 0.01mm
• Carbide-tipped micro-lap finish spindle
• Series accuracy of ±(4+R/75)µm, with R the maximum range in mm
• Setting standards supplied for zero setting
• Spindle lock, with spindle diameter 6.35mm up to 300mm and 8mm above
• Satin chrome thimble and sleeve 18mm in diameter

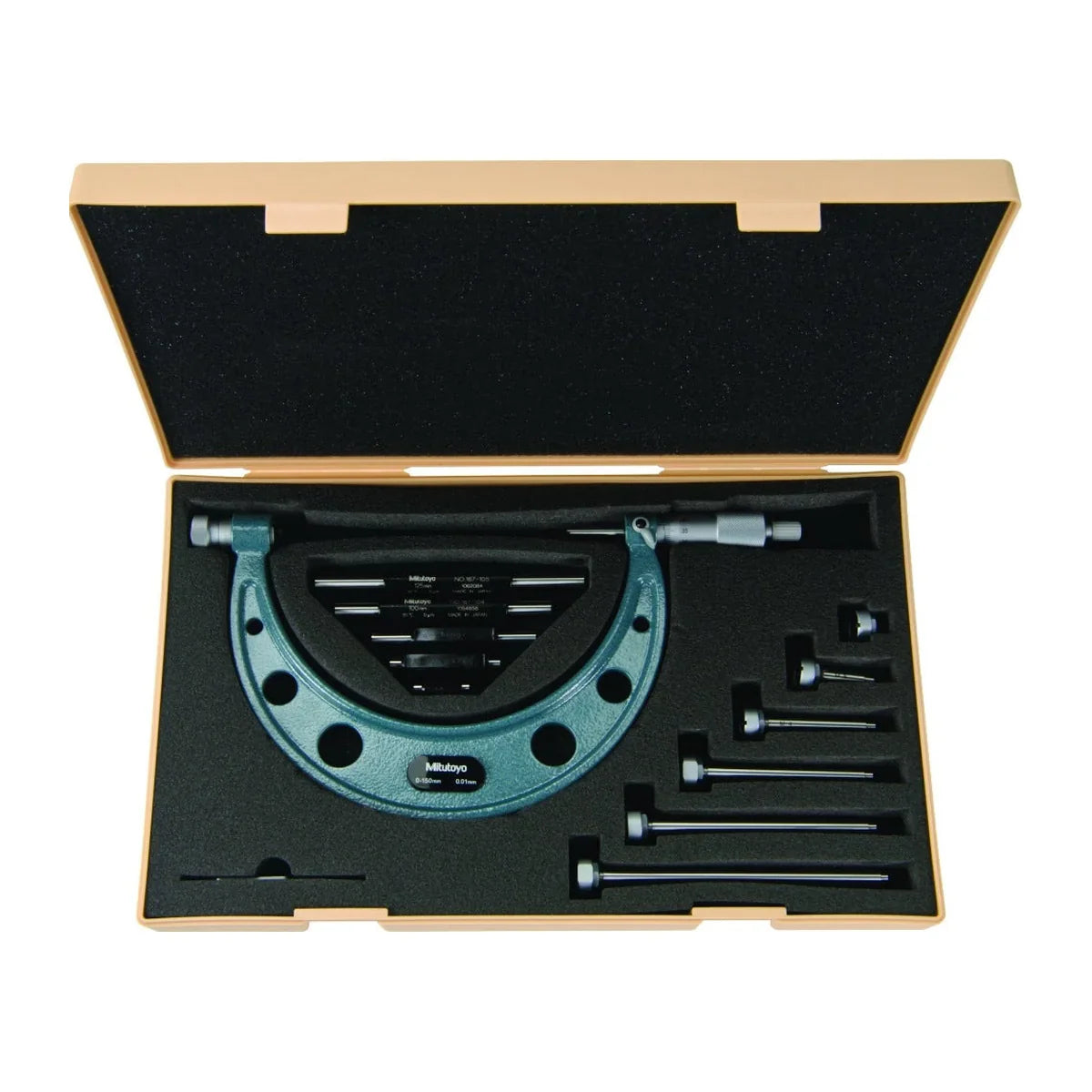

• Supplied with a box and a key, in a fitted wooden case
