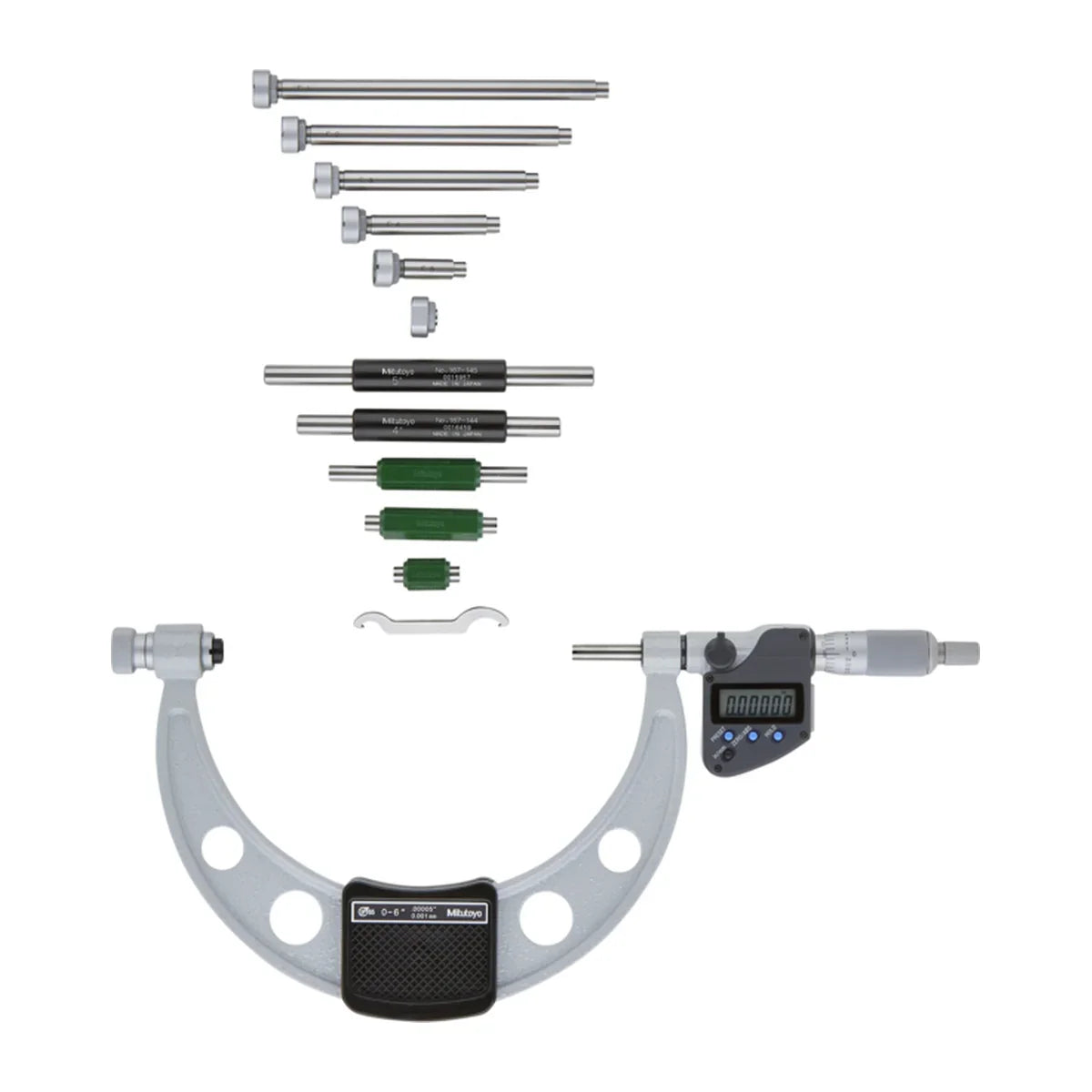

Mitutoyo 340-351-30 Digimatic Micrometer, 0 - 6"

Mitutoyo Series 340 Digimatic outside micrometers give you a digital reading over a wide span, with interchangeable anvils to change the range. They have IP65 water and dust protection, a ratchet stop for constant force and SPC output, so they suit toolrooms, quality control and machinists who want to read in inch or metric and send readings to a data system.

An anvil is the fixed measuring face. Resolution is the smallest step the display shows. It is not the same as accuracy, which is the biggest error Mitutoyo allows. SPC output lets the micrometer send readings to a computer or data system through an optional cable. IP65 is a rating for resistance to dust and water. Choose 0 - 6" (152.4mm) for general work, or 6 - 12" for larger parts.

Where this product is used

• Measuring shafts and blocks in inch or metric
• Quality control checks where readings go to a data system
• Machine shop work where coolant or dust is around

Features

• Interchangeable anvils give a wide measuring range
• IP65 water and dust protection on models up to 12" / 300mm
• Ratchet stop for constant measuring force
• SPC output for sending readings to a data system
• LCD display and a switch between inch and mm
• Zero / ABS, data hold, preset, function lock and 2 presets
• Supplied in a fitted wooden case with zero-setting standards for each range
• Uses an SR44 battery, with a low voltage alarm

Key specifications

Choosing the right option
