Pferd POLIROLL PR aluminium oxide cartridge roll 42811305
Available

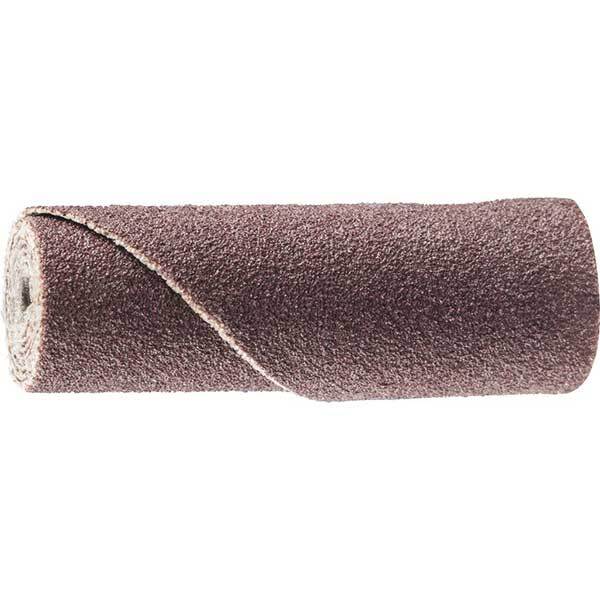

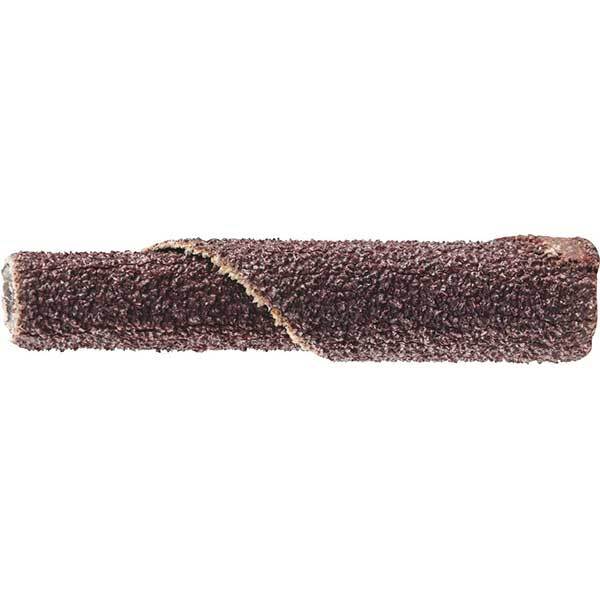

The Pferd POLIROLL PR is a cylindrical cartridge roll made of spirally wound, coated abrasive with aluminium oxide grain, mounted on a grooved, conical arbor (ordered separately). The range has 9 options in 6 x 25mm, 6 x 35mm, 9 x 35mm and 12 x 35mm, grits 50, 80 and 150.
The aluminium oxide A version is suited to general grinding work in hard-to-reach areas on metals and other materials. Fresh abrasive grain is exposed as the roll wears, and the roll is held securely by the self-tensioning grooved, conical arbor, which also makes tool changes easy. Each item lists its own optimum speed, maximum speed and suitable arbors; the maximum permitted peripheral speed is 11 m/s and wet grinding is not permitted.
Where this product is used

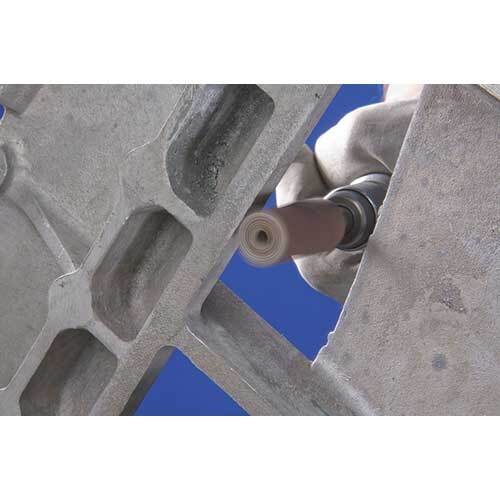

- Grinding in hard-to-reach areas on metals and other materials
- Mounted on a grooved, conical arbor, ordered separately
- Dry grinding only
Features
- Aluminium oxide grain, grits 50, 80 and 150
- Sizes 6 x 25mm, 6 x 35mm, 9 x 35mm and 12 x 35mm
- Optimum speeds from 12,000rpm to 20,000rpm, depending on the size
- Maximum peripheral speed 11 m/s
- Not permitted for wet grinding
Key specifications
| Specification | Detail |
|---|---|
| Brand | Pferd |
| Series | PR (cylindrical) |
| Abrasive | Aluminium oxide (A) |
| Grit sizes | 50, 80 and 150 |
| Maximum peripheral speed | 11 m/s |
Choosing the right option
A higher grit number is a finer abrasive. The maximum permitted rotational speed indicated must never be exceeded, and the roll is not permitted for wet grinding.
Arbors and the other POLIROLL range: Pferd BO Arbor for POLIROLL Cartridge Rolls, 6mm Shank, BO 6-18-3 and BO 6-24-3, Pferd BO 3-18-3 Arbor for POLIROLL Cartridge Rolls, 3mm Shank (42703183), Pferd POLIROLL PR Cartridge Roll, Ceramic Oxide Grain CO-COOL, 6 to 12mm Diameter, Grits 60 to 120.
| Option | Part number | SKU |
|---|---|---|

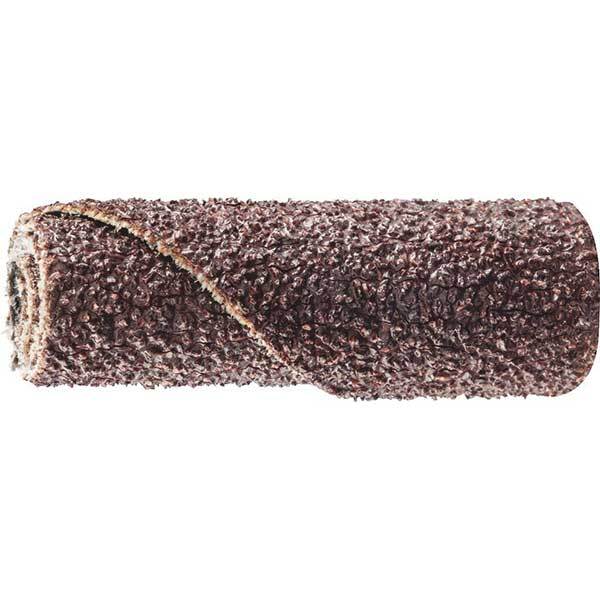

| 50 / 12 x 35 | 42811305 | A0160323 |

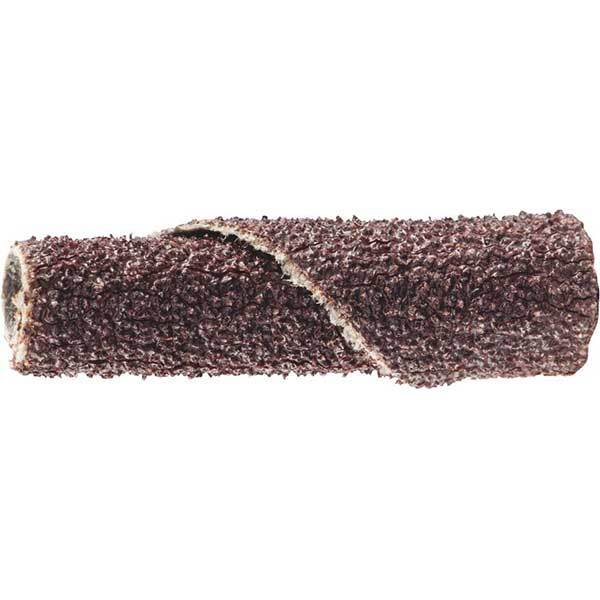

| 80 / 6 x 25 | 42810608 | A0160317 |
| 80 / 6 x 35 | 42810708 | A0160319 |

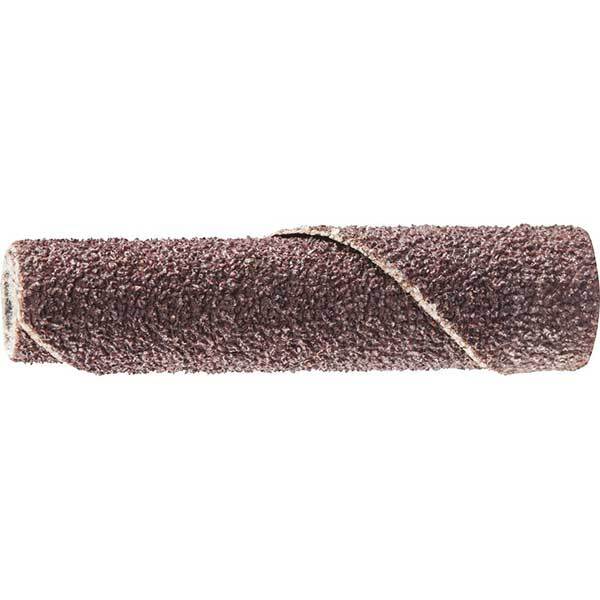

| 80 / 9 x 35 | 42810908 | A0160321 |

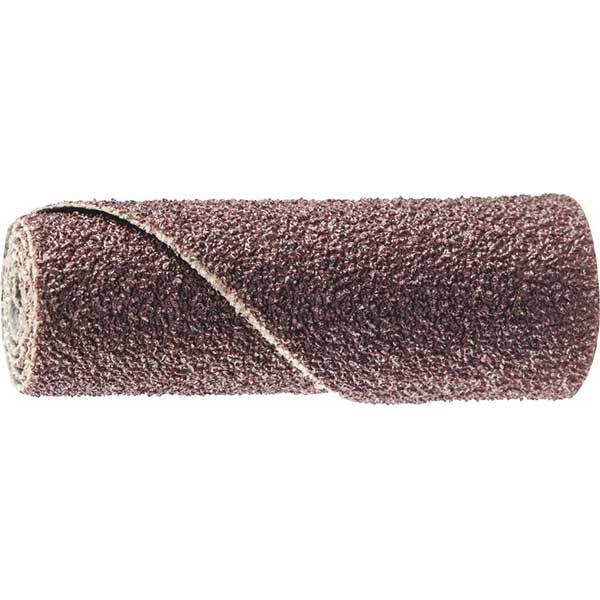

| 80 / 12 x 35 | 42811308 | A0160324 |

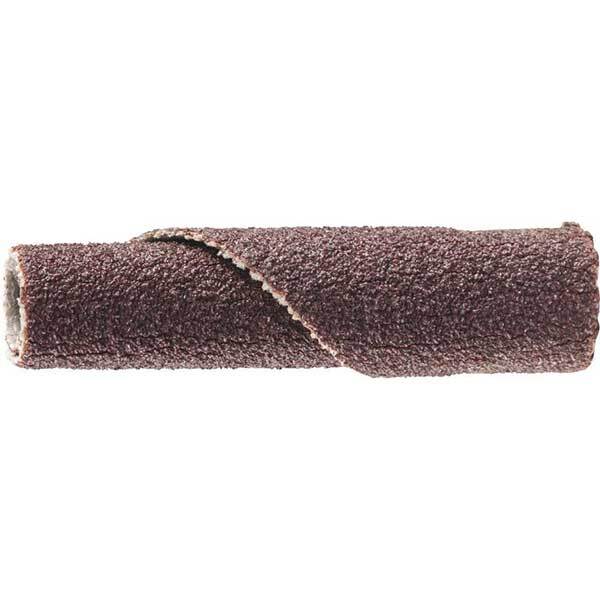

| 150 / 6 x 25 | 42810615 | A0160316 |

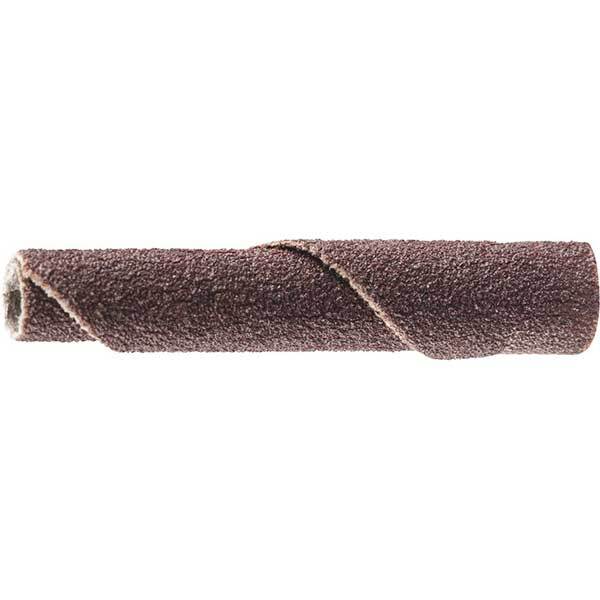

| 150 / 6 x 35 | 42810715 | A0160318 |

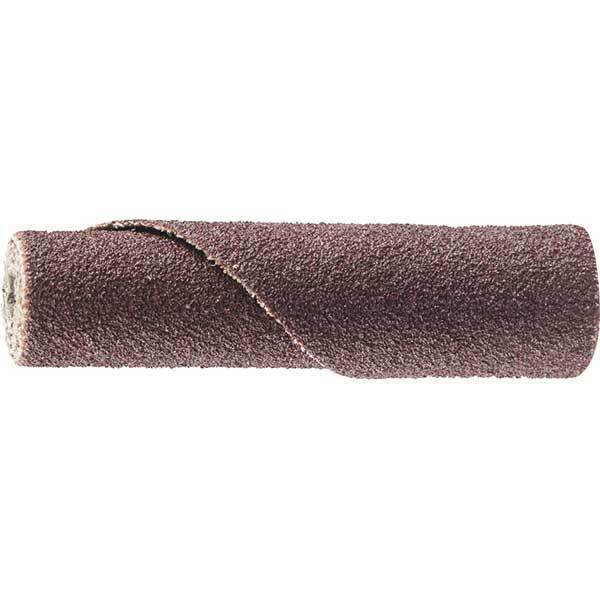

| 150 / 9 x 35 | 42810915 | A0160320 |
| 150 / 12 x 35 | 42811315 | A0160322 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Pferd POLIROLL PR Cartridge Roll, Aluminium Oxide, 6 to 12 mm Diameter, Grits 50 to 150: 50 / 12 x 35
SKU: A0160323 | Model: 42811305
Pferd 42811305: aluminium oxide cartridge roll, 12 x 35mm, grit 50. Optimum speed 12,000rpm, max. 17,000rpm.
