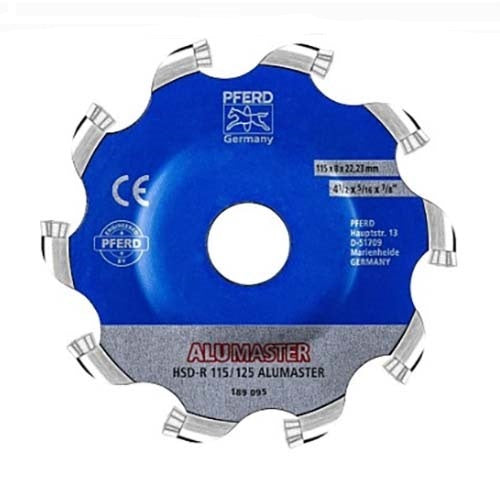

Pferd Alumaster High Speed Disc HSD-R 115/125, 115 mm, 22.23 mm Bore (22000019)
Available
The Pferd Alumaster HSD-R 115/125 (item 22000019) is a high speed disc with replaceable tungsten carbide cutting inserts, for peripheral milling and milling out root seams with an angle grinder.
Type HSD-R 115/125 takes the HSD-F one step further and is also suitable for peripheral milling and milling out root seams. An extraction system is not required as no hazardous or explosive dust is generated, and lists the compressed-air angle grinder PWT 26/120 HV M14 and the electric angle grinder UWER 18/110 SI as suitable drives.
Where this product is used
- Peripheral milling and milling out root seams on aluminium alloys
- Milling out, circumferential milling, work on weld seams, fillet welds and edges/chamfering, and surface work
Features
- Turnable, replaceable tungsten carbide cutting inserts, pre-mounted
- Robust cut geometry
- Supplied with a hexalobular socket wrench and a plastic box
- Maximum speed 13,300rpm
Key specifications
| Specification | Detail |
|---|---|
| Brand | Pferd |
| Designation | HSD-R 115/125 ALUMASTER |
| Diameter (D) | 115mm |
| Bore (H) | 22.23mm |
| Dimension U | 8mm |
| Maximum speed | 13,300rpm |
Choosing the right option
The maximum speed is 13,300rpm for this disc, so keep the grinder at or below it. For flat surface work only, see the HSD-F 115/125. Spare inserts are the WSP-A-8R insert set.
Related: WSP-A-8R spare inserts for HSD-R 115/125, Alumaster HSD-F 115/125 disc.
