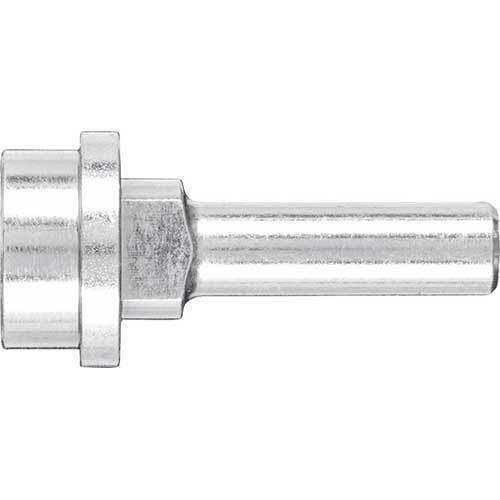

Pferd 44601225 FR/VR 12/25,4 100-165 Arbor with Flange, 25.4 mm Hole

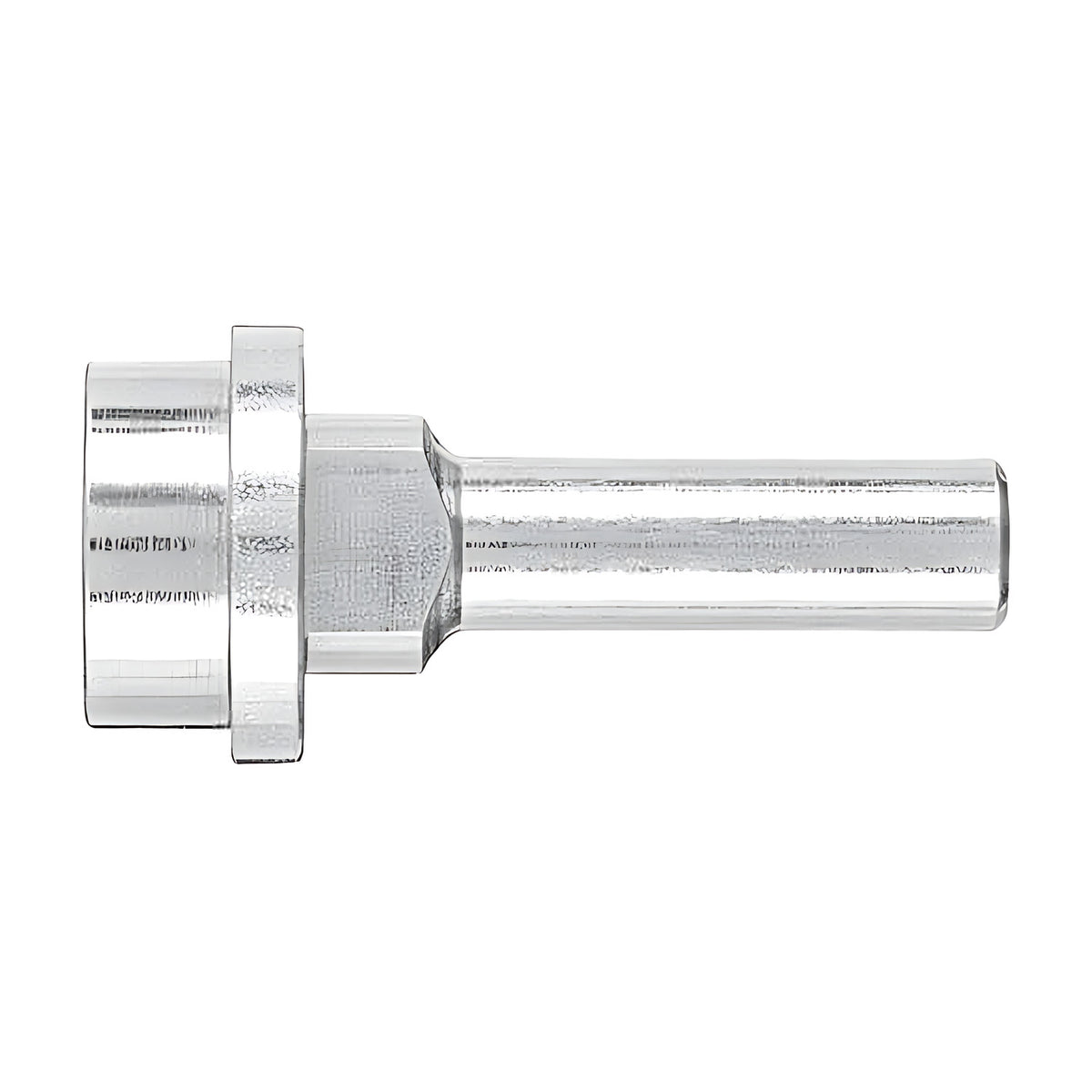

The Pferd FR/VR arbor with clamping flange mounts unmounted flap wheels. This page lists two versions with a 12 mm shank: for 25.4 mm hole wheels of 100, 150 and 165 mm, and for 44 mm hole wheels of 200 and 250 mm.

The catalogue says the version with clamping flange is for mounting PFERD TOOLS unmounted flap wheels, and that the clamping flanges lie countersunk in the tool (manufacturer-stated).

The wheel can be used face-down very close to edges and in corners thanks to the special clamping system (manufacturer-stated).

The POLINOX unmounted grinding wheel tables also list FR/VR 12/25,4 and FR/VR 12/44,0 as suitable arbors (manufacturer-stated).

Where this product is used

• Mounting unmounted flap wheels (manufacturer-stated)
• Use face-down close to edges and in corners (manufacturer-stated)
• Mounting POLINOX unmounted grinding wheels (manufacturer-stated)

Features

• 12 mm shank, 40 mm long (manufacturer-stated)
• Clamping range 25 - 50 mm (manufacturer-stated)
• Two versions: 25.4 mm and 44 mm hole (manufacturer-stated)

Common specifications

Key specifications

Each item number is a separate size.

Selecting the right option

Pick the version by the wheel hole: 25.4 mm for 100, 150 and 165 mm wheels, 44 mm for 200 and 250 mm wheels.
