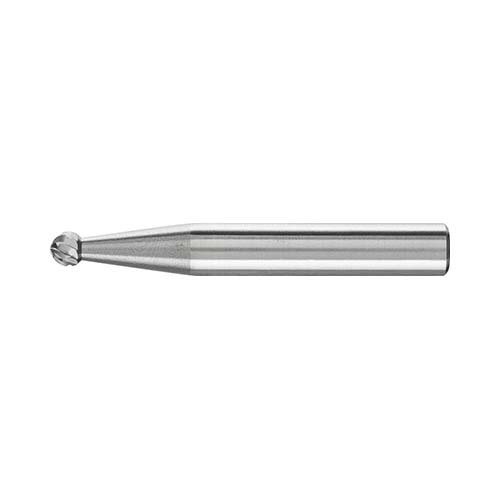

Pferd ball shape burr, 4 x 3mm
Available
It has 7 Pferd ball shape burrs: shank-mounted tungsten carbide burrs with cut 3 PLUS, all on a 6mm shank. Head sizes (diameter x cut length) run from 4 x 3 to 20 x 18mm.
The this KUD family is a ball-shaped burr for general use on all materials, with a good stock removal rate from the matching of tungsten carbide, geometry, cut and coating. The cut 3 PLUS is similar to cut 3 but with a cross cut, for machining steel, cast iron, stainless steel (INOX), nickel-based alloys and titanium alloys.
Where this product is used
- Machining steel, cast iron, stainless steel (INOX), nickel-based alloys and titanium alloys
- High stock removal with good surfaces

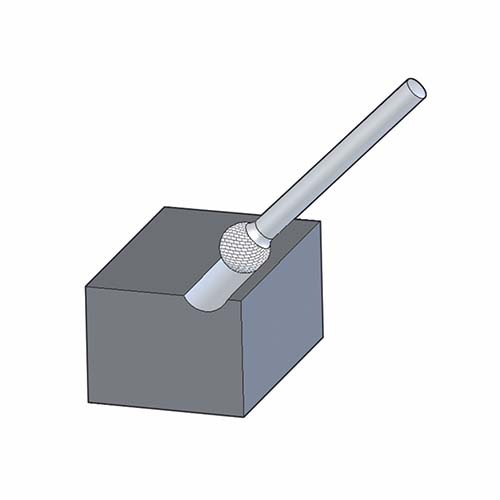

- Deburring, chamfering, milling out for build-up welding preparation, machining weld seams and machining contours, and cleaning cast material
Features
- Head sizes (diameter x cut length): 4 x 3 to 20 x 18mm
- 6mm shank
- Cut 3 PLUS: cross cut, similar to cut 3
- Reduced wear on the tool drive from impact-free work without chatter marks, thanks to the high concentricity
- Long tool life
Key specifications
| Specification | Detail |
|---|---|
| Brand | Pferd |
| Material | Tungsten carbide |
| Cut | 3 PLUS |
| Shank diameter (d2) | 6mm |
Choosing the right option
Match the shank to your tool: this item has a 6mm shank. Choose the head size for the feature you are cutting. Never exceed the maximum permitted rotational speed, wear eye protection, hearing protection and a dust mask, and observe the recommended rotational speed, especially with long shanks.
Related burrs: Pferd Ball Shape Burr KUD, Cut 3 PLUS, 3 x 2 to 6 x 5mm, 3mm Shank, Pferd Extended Ball Shape Burr KUD 12,7x11,1x6,35-150 Z3P, 6.35mm Shank, 160mm Overall (21725942), Pferd Ball Shape Burr KUD, Cut 3 PLUS, 3/16 x 1/8 to 3/4 x 11/16", 6.35mm Shank.
| Option | Part number | SKU |
|---|---|---|
| 4 x 3mm | 21112026 | A0151225 |
| 6 x 5mm | 21112526 | A0151226 |
| 8 x 7mm | 21112626 | A0151227 |
| 10 x 9mm | 21112726 | A0151228 |
| 12 x 10mm | 21112826 | A0151229 |
| 16 x 14mm | 21112926 | A0151230 |
| 20 x 18mm | 21113026 | A0151231 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Pferd Ball Shape Burr KUD, Cut 3 PLUS, 4 x 3 to 20 x 18 mm, 6 mm Shank: 4 x 3 mm
SKU: A0151225 | Model: 21112026
Pferd 21112026: ball shape burr KUD 0403/6 Z3 PLUS, 4 x 3mm head, 6mm shank, 45mm overall.
