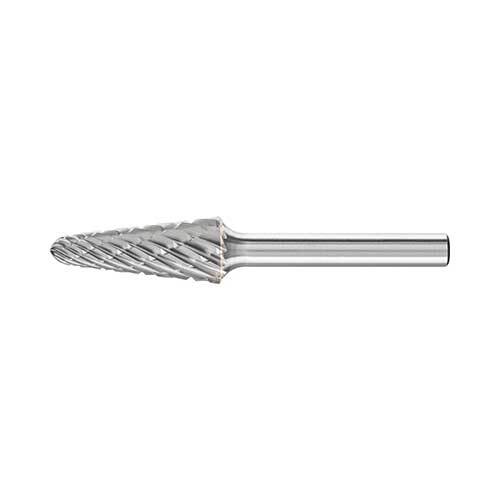

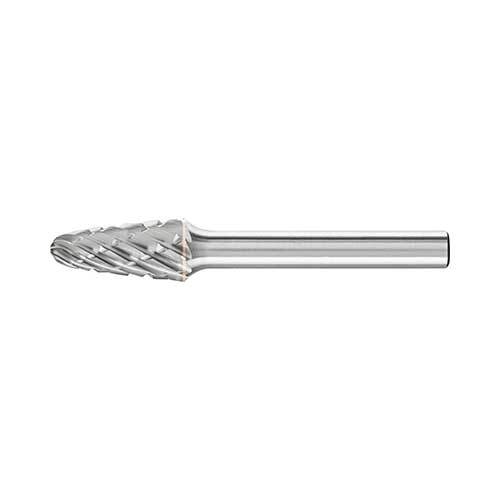

Pferd conical Radius End Burr KEL, 10 x 20mm

This Pferd conical burr with radius end (KEL) is a tungsten carbide burr in NON-FERROUS cut on a 6mm shank. It comes in 2 head sizes: 10 x 20 and 12 x 30mm.

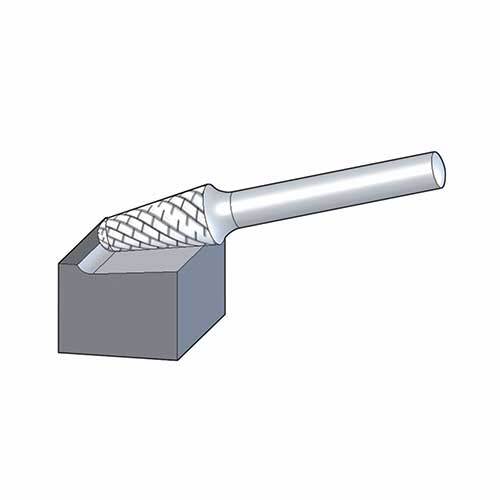

The NON-FERROUS cut gives a high stock removal rate on non-ferrous metals, brass, copper, plastics and fibre-reinforced plastics, and as suitable for universal use. The KEL is a conical burr with round radius end to DIN 8032 for general-purpose use on non-ferrous metals and fibre-reinforced plastics.

Where this product is used

• Non-ferrous metals such as brass and copper
• Plastics and fibre-reinforced plastics

Features

• Tungsten carbide, conical shape with radius end (KEL)
• NON-FERROUS: high stock removal rate on non-ferrous metals, brass, copper, plastics and fibre-reinforced plastics
• 6mm shank
• Head sizes 10 x 20 and 12 x 30mm, overall lengths 60 and 70mm
• Suitable for universal use

Key specifications

Choosing the right option

Choose the head size and shank to suit the job and your tool. The cutting speed is 450 to 600 m/min for brass, copper and zinc, and the rotational speed follows from the burr diameter. Do not exceed the maximum permitted rotational speed, observe the recommended rotational speed (especially with long shanks), wear eye and hearing protection and a dust mask, and do not use a damaged burr or use the burr for cutting.

Same shape with other cuts: Pferd Conical Radius End Burr KEL, Cut 3 PLUS, 10 x 20 to 16 x 30mm, 6mm Shank, Pferd Conical Radius End Burr KEL, ALLROUND, 10 x 20 and 12 x 25mm, 6mm Shank.

Same cut in other shapes: Pferd Tree Shape Burr RBF, NON-FERROUS, 12 x 25mm, 6mm Shank (26002823).
