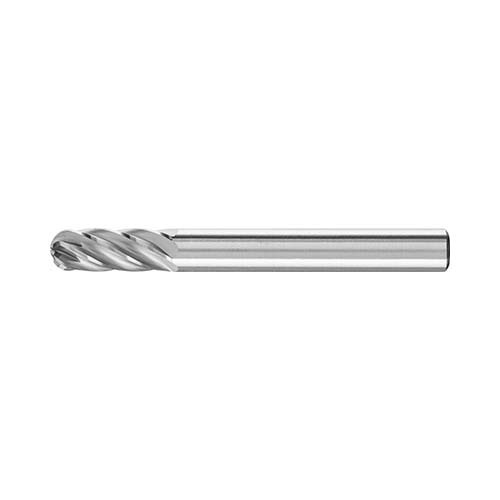

Pferd WRC burr, 6 x 16mm

The Pferd WRC Cylindrical Radius End Burr is a tungsten carbide burr in INOX cut with a 6mm shank. The range has 2 options, with head sizes of 6 x 16 and 12 x 25mm (diameter x cut length) and total lengths of 55 to 65mm.

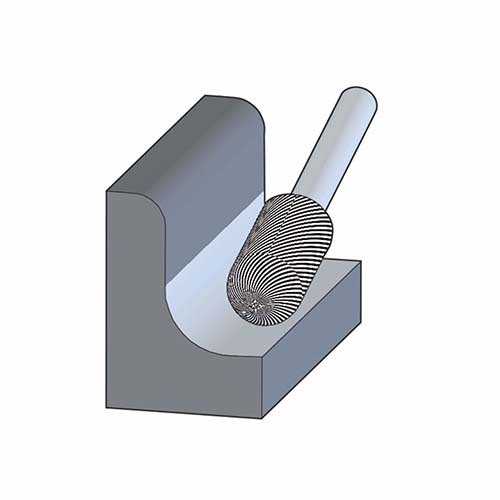

The WRC is a cylindrical burr with radius end to DIN 8032 for machining stainless steel (INOX). The INOX cut gives an extremely high stock removal rate on austenitic, rust and acid-resistant steels, stainless steel (INOX) and soft titanium alloys (tensile strength below 500 N/mm²), with significantly reduced vibration and less noise. Key features: high surface finish through optimum chip formation, prevents heat discolouration in the material through reduced heat production, reduced wear on the tool drive from impact-free work without chatter marks, thanks to the high concentricity.

Where this product is used

• Machining austenitic, rust and acid-resistant steels
• Soft titanium alloys with a tensile strength below 500 N/mm²

Features

• INOX Cut: extremely high stock removal rate on stainless steel (INOX)
• Cylindrical head with a radius end, 6mm shank
• Head sizes 6 x 16 and 12 x 25mm, total length 55 to 65mm
• High surface finish through optimum chip formation
• Prevents heat discolouration in the material through reduced heat production

Key specifications

Choosing the right option

Check that your tool holds a 6mm shank. For a range of other materials, use the ALLROUND cut. Do not exceed the maximum permitted rotational speed, wear eye protection, hearing protection and a dust mask, and do not use a damaged burr.

Same cut in other shapes: Pferd ZYA Cylindrical Burr, INOX Cut, 6mm Shank, 6 x 16 and 12 x 25mm.

Same shape in other cuts: Pferd WRC Cylindrical Radius End Burr, NON-FERROUS Cut, 6mm Shank, 6 x 16 and 12 x 25mm, Pferd WRC Cylindrical Radius End Burr, Cut 3 PLUS, 6mm Shank, 6 x 16 to 16 x 25mm.
