Pferd combidisc CDR Aluminium Oxide Small, 60 / 25mm
Available

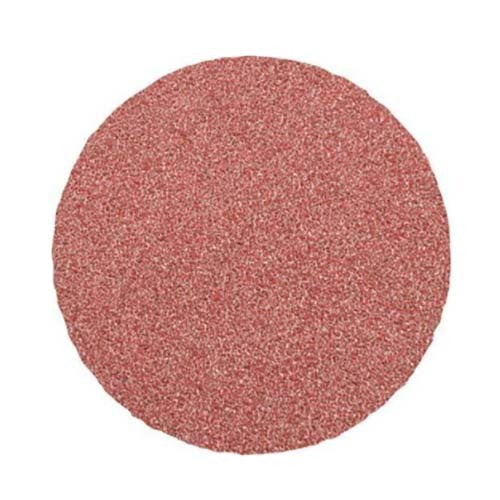

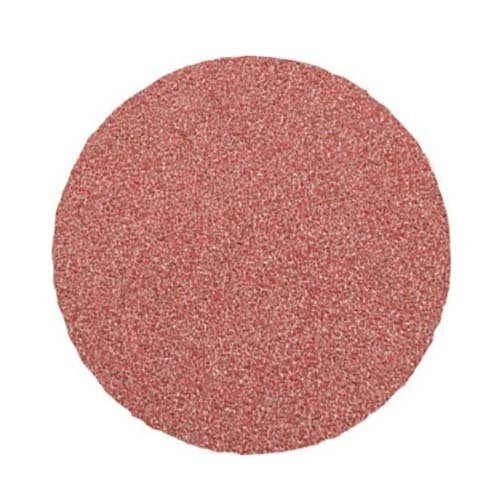

This is the Pferd Combidisc Abrasive Disc CDR Aluminium Oxide, 20, 25 and 38 mm, Grits 60 to 120.
The Pferd Combidisc CDR aluminium oxide abrasive disc is a small-diameter abrasive disc for the COMBIDISC CDR clamping system. It is used with a CDR-system holder such as the SBHR, ordered separately. The range has 8 options in 20, 25 and 38mm, grits 60, 80 and 120.
The this range is an aluminium oxide A version for general coarse to fine grinding applications in industry and professional trades. The CDR clamping system is a tool-side threaded connection with a male thread (plastic), and the CD system as a tool-side threaded connection with a female thread (metal/plastic). It has these features for the COMBIDISC system: comfortable to use with low-vibration working, no disruptions in use due to adhesion, slipping or coming loose, and quick tool changes.
Where this product is used
- General coarse to fine grinding in industry and professional trades
Features
- Combidisc CDR Aluminium Oxide Small, 20, 25 and 38mm
- Aluminium oxide, grits 60, 80 and 120
- Comfortable to use, with low-vibration working
- No disruptions in use due to adhesion, slipping or coming loose
- Quick tool changes thanks to the COMBIDISC clamping system
- Maximum peripheral speed 50 m/s
Key specifications
| Specification | Detail |
|---|---|
| Brand | Pferd |
| System | COMBIDISC CDR |
| Abrasive | Aluminium oxide (A) |
| Disc diameters | 20, 25 and 38mm |
| Grit sizes | 60, 80 and 120 |
| Maximum peripheral speed | 50 m/s |
Choosing the right option
A higher grit number is a finer abrasive. The maximum permitted peripheral speed is 50 m/s and says the maximum rotational speed indicated must never be exceeded. It also says to wear gloves, a dust mask and eye and hearing protection, and to follow the safety instructions. Use a holder that matches the clamping system: SBHR holders belong to the CDR system.
Other COMBIDISC items: Pferd Combidisc Abrasive Disc CDR Aluminium Oxide, 20, 50 and 75mm, Grits 36 to 320, Pferd Combidisc Abrasive Disc CDR A-FORTE, 50 and 75mm, Grits 36 to 120, Pferd Combidisc Abrasive Disc CDR CO-COOL, 50 and 75mm, Grits 36 to 120.
Holder to match: Pferd Combidisc Holder SBHR, Medium, 20 to 75mm.
| Option | Part number | SKU |
|---|---|---|
| 60 / 25mm | 42770306 | A0163905 |
| 60 / 38mm | 42770406 | A0163908 |
| 80 / 20mm | 42770208 | A0163903 |
| 80 / 25mm | 42770308 | A0163906 |
| 80 / 38mm | 42770408 | A0163909 |
| 120 / 20mm | 42770212 | A0163902 |
| 120 / 25mm | 42770312 | A0163904 |
| 120 / 38mm | 42770412 | A0163907 |
Product details
| Model | 42770306 |
|---|---|
| Part number | 42770306 |
| Size | 25mm, grit 60 |
| Designation | CDR 25 A 60 |
| Disc diameter | 25mm |
| Abrasive | Aluminium oxide (A) |
| Grit size | 60 |
| Clamping system | CDR system |
| Optimum speed | 15,000 to 26,000rpm |
| Maximum peripheral speed | 50 m/s |
