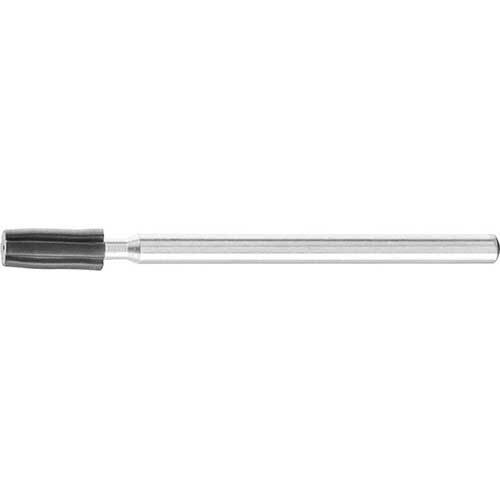

Pferd GK rubber drum holder, 4 x 10 x 3mm

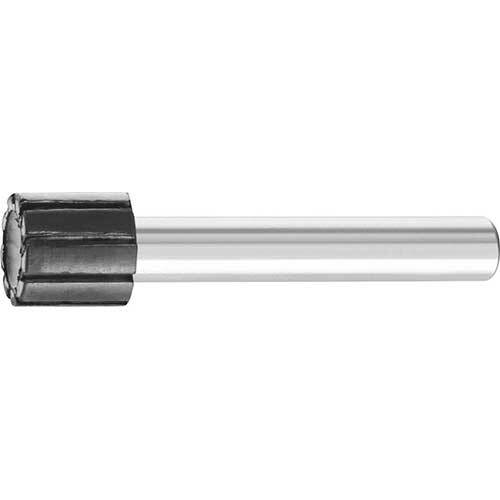

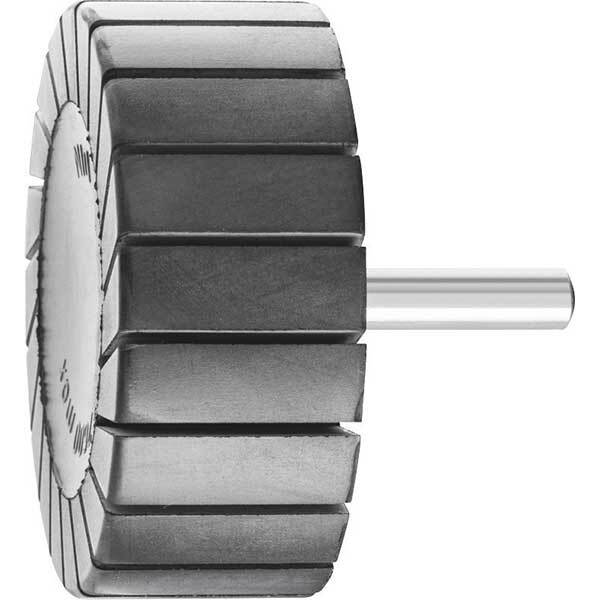

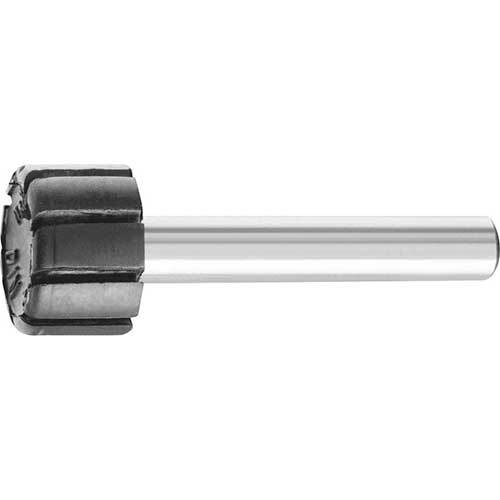

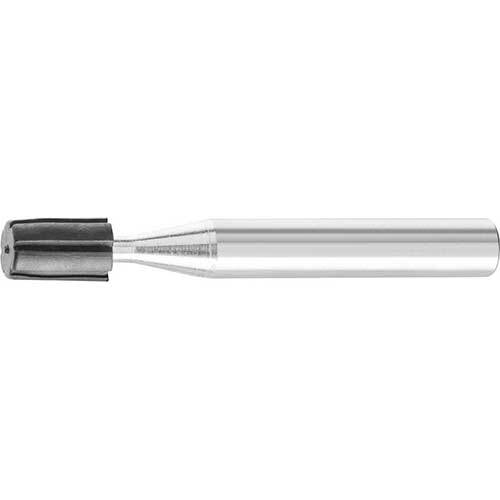

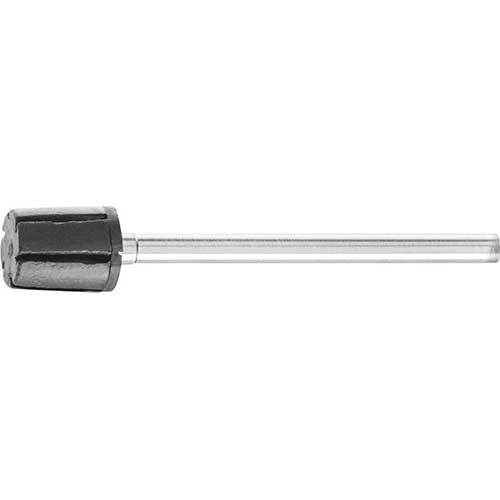

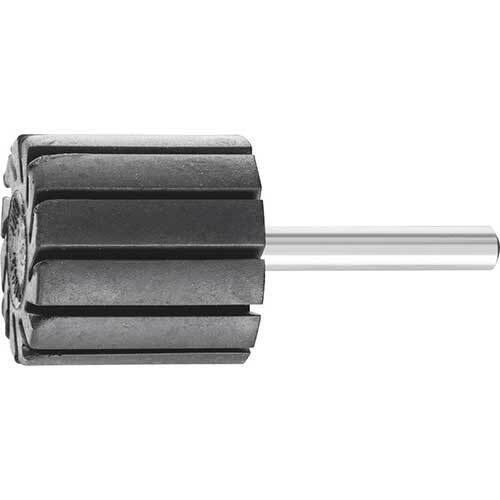

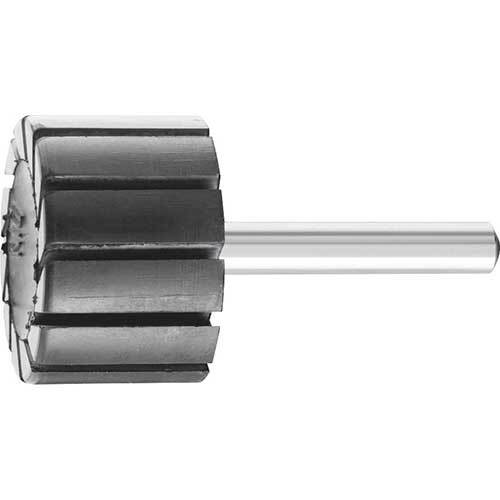

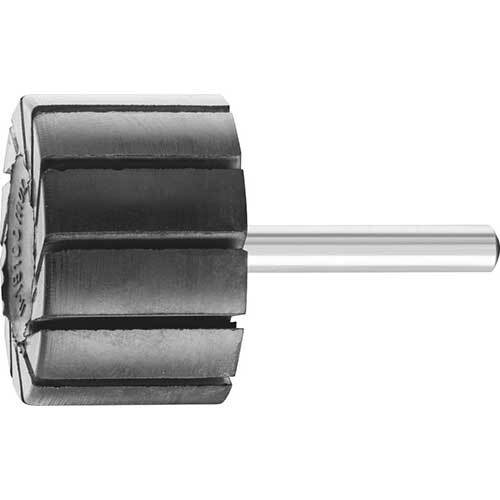

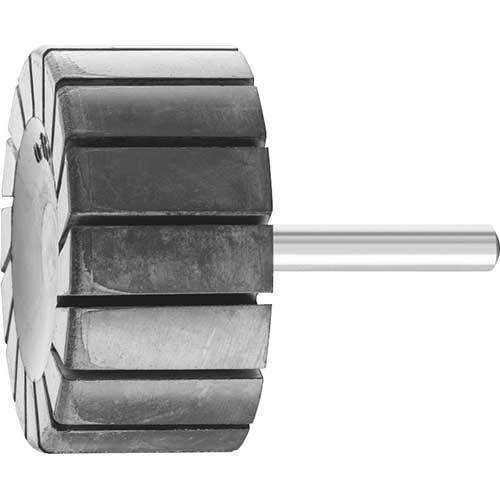

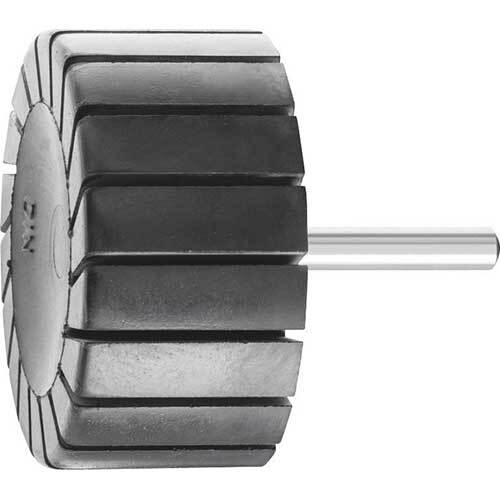

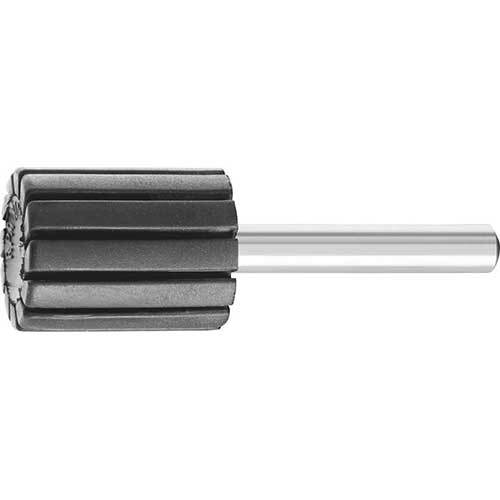

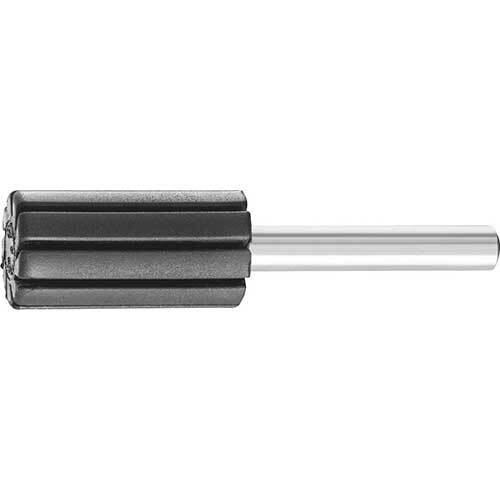

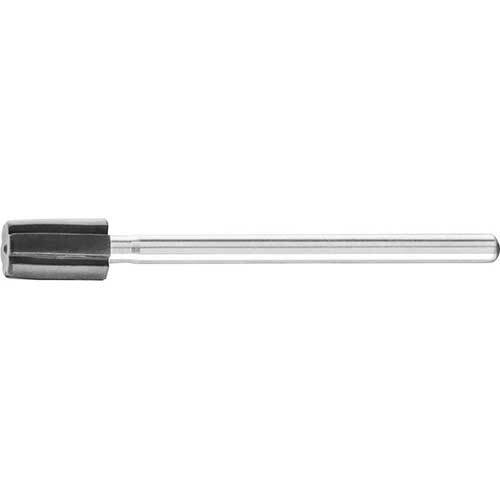

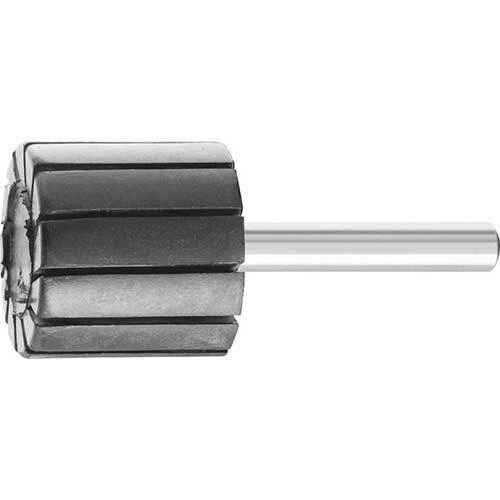

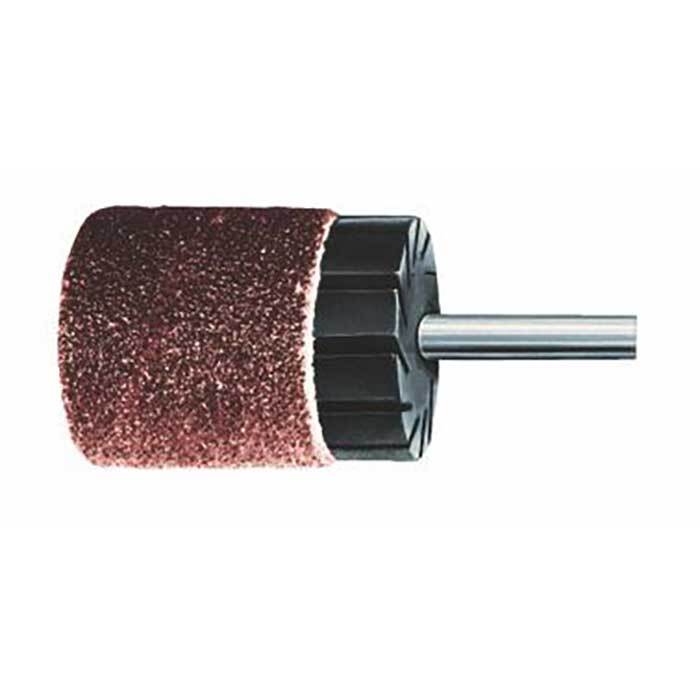

The Pferd GK rubber drum holder carries a cylindrical abrasive spiral band: the band slides over the rubber head and is held firmly as the holder expands in use. It has 23 cylindrical holders from 4 x 10mm to 100 x 40mm (diameter x height) on 3, 6 and 8mm shanks.

The GK is the matching holder for abrasive spiral bands, with the band held firmly in place as the holder expands during use. Each holder has a maximum and a minimum speed, and the maximum permitted speed must never be exceeded.

Where this product is used

• Holding KSB and GSB abrasive spiral bands of the matching diameter and height
• Mounting on a tool drive through a 3, 6 or 8mm shank
• Used within the speed range printed for each holder

Features

• Head sizes from 4 x 10mm to 100 x 40mm
• Shank diameters 3, 6 and 8mm
• Hardness 65 to 70 Shore A on every holder listed

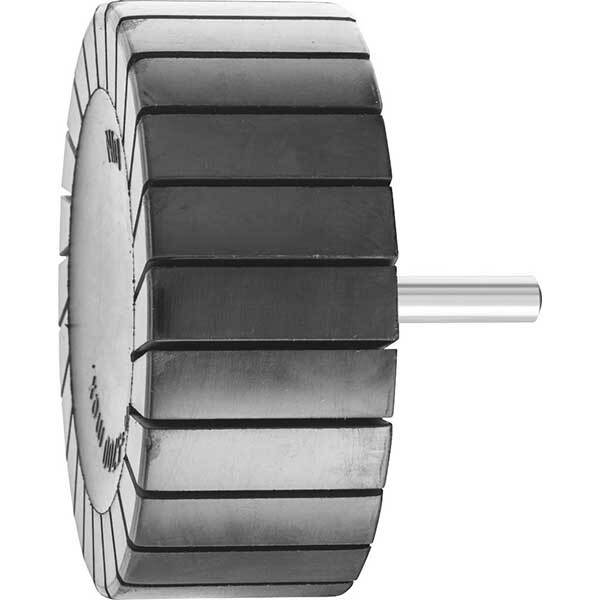

• Speed ranges from 30,000 to 55,000rpm on the small heads down to 4,000 to 5,700rpm on the 100 x 40mm head
• Band held firmly in place as the holder expands in use

Key specifications

Choosing the right option

Choose the holder with the same diameter and height as the spiral band. Then check the shank diameter against your tool drive. Keep within the maximum speed printed for the holder; the minimum speed is also printed for each size.

Spiral bands that fit these holders: Pferd KSB Abrasive Spiral Band, Aluminium Oxide, 10 to 75mm Diameter, Grits 40 to 240, Pferd GSB Abrasive Spiral Band, Zirconia Alumina Z, 13 to 51mm Diameter, Grits 40 to 80, Pferd GSB Abrasive Spiral Band, Ceramic Oxide Grain CO-COOL, 13 to 60mm Diameter, Grits 36 to 120.
