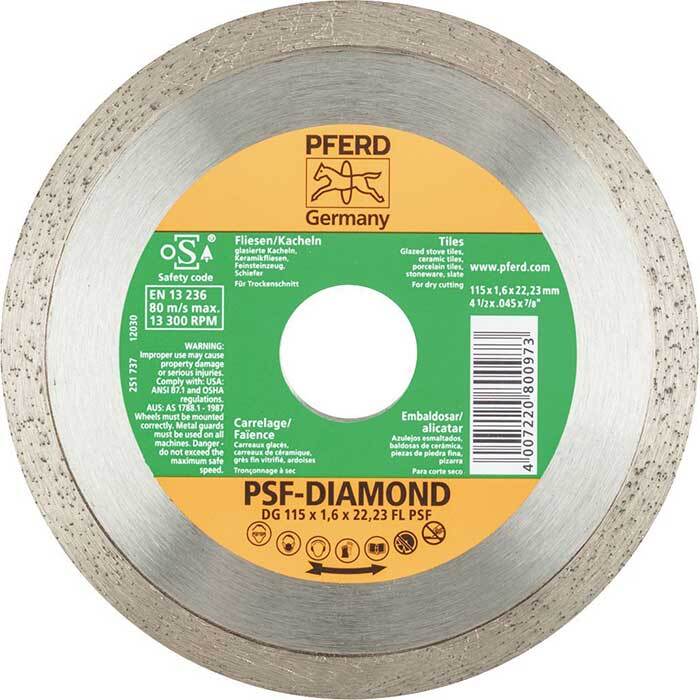

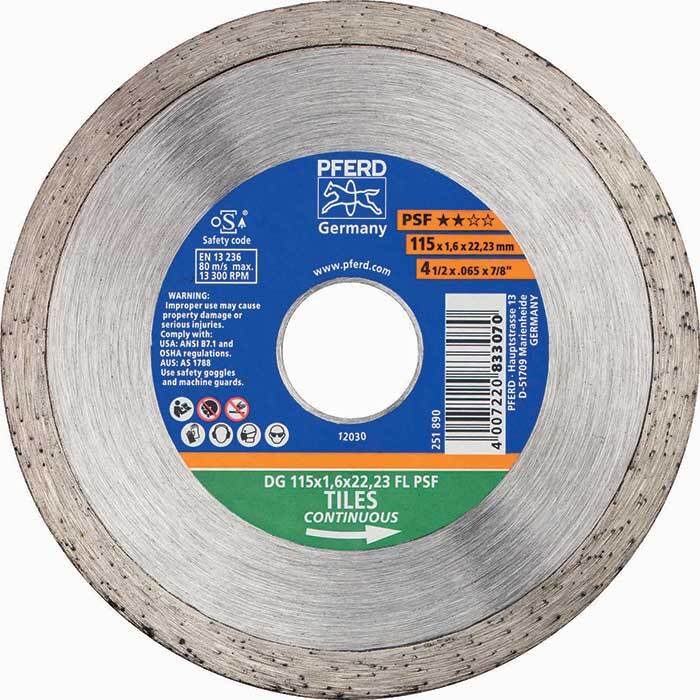

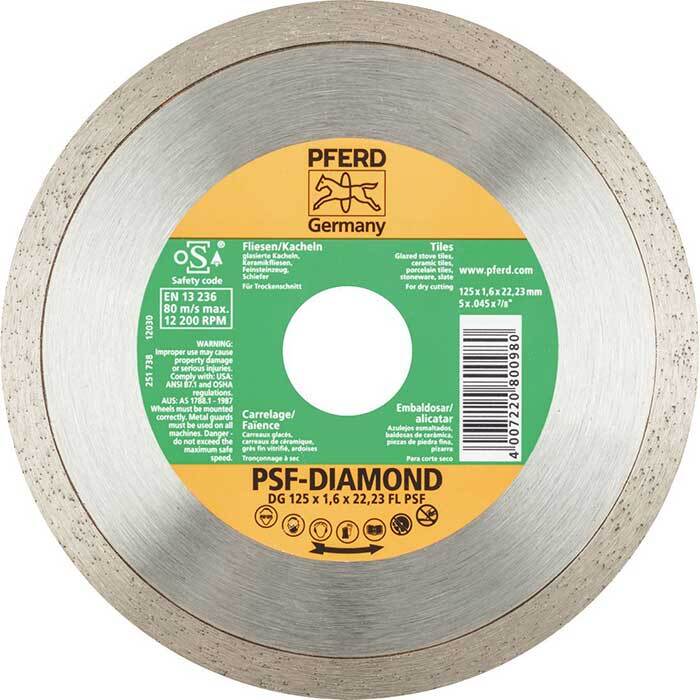

Pferd DG FL PSF tile diamond cut-off wheel, 125mm (5")

The Pferd DG FL PSF is a general-purpose diamond cut-off wheel with a continuous rim for fine cutting of tiles. The range has three options: 100mm with a 20mm bore, and 115 and 125mm with a 22.23mm bore, all with a 1.6mm thick rim.

The DG FL PSF is a general-purpose continuous-edge tool for cutting without edge breakages on workpieces with high-grade surfaces, with high cutting performance and a good tool life. Key features are high-grade diamond, good cutting characteristics with short cutting times, and good ease of cutting with high economic efficiency. Items 68300040 and 68300041 are not printed under these item numbers.

Where this product is used

• Cutting tiles without edge breakage on workpieces with high-grade surfaces
• Cutting glazed tiles, ceramic tiles, porcelain stoneware, slate and marble (material guide for the DG FL type)

Features

• Continuous rim (shape DG FL) for very fine cutting
• Diameters 100, 115 and 125mm, 1.6mm thick
• Maximum speed 15,300rpm (100mm), 13,300rpm (115mm) and 12,200rpm (125mm)
• Rim height (X) 7mm

Key specifications

Choosing the right option

Never exceed the maximum speed printed for the item. Pferd diamond tools conform to EN 13236 and carry the oSa mark, and its safety pictograms include wear eye protection, hearing protection and a dust mask, not permitted for face grinding, and do not use if damaged.

For concrete and brick see: Pferd DS START Segmented Diamond Cut-Off Wheel, Pferd DG START Turbo Diamond Cut-Off Wheel.
