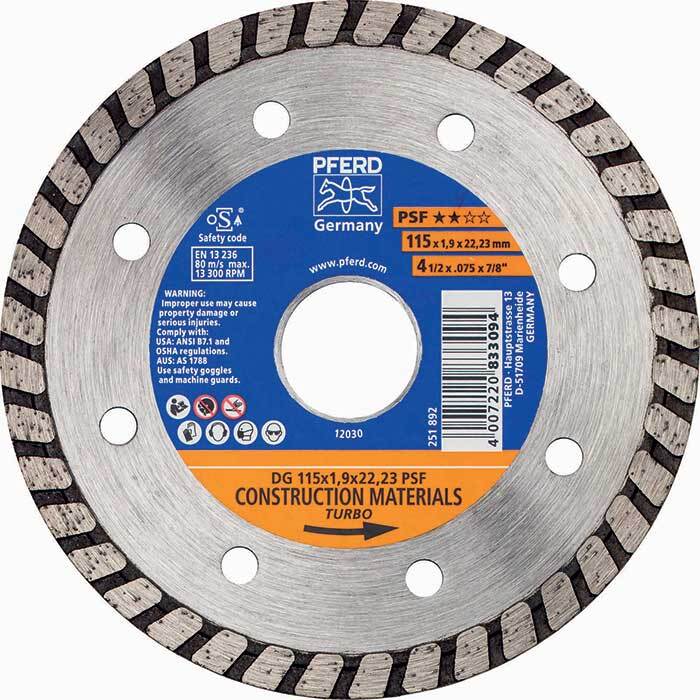

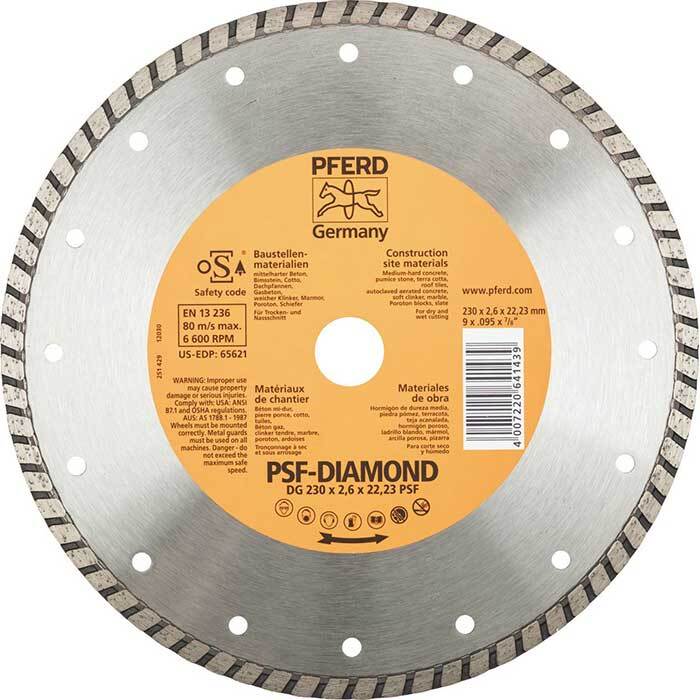

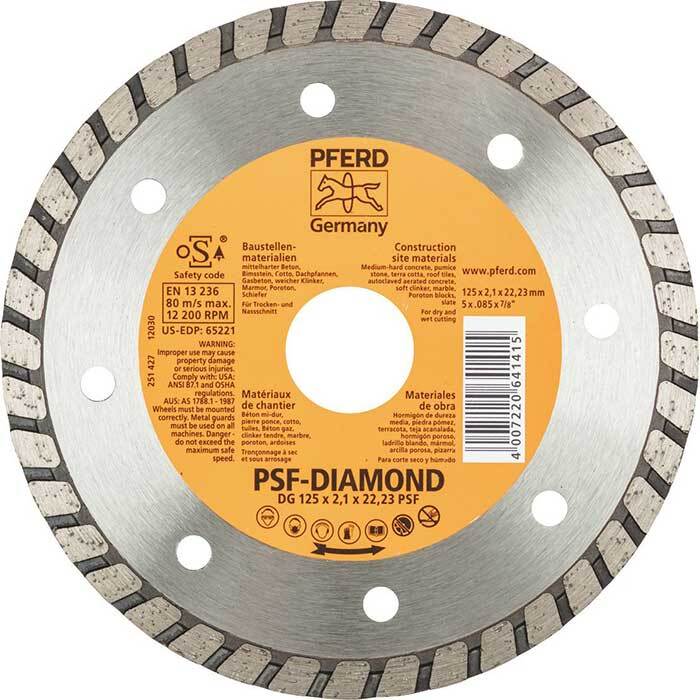

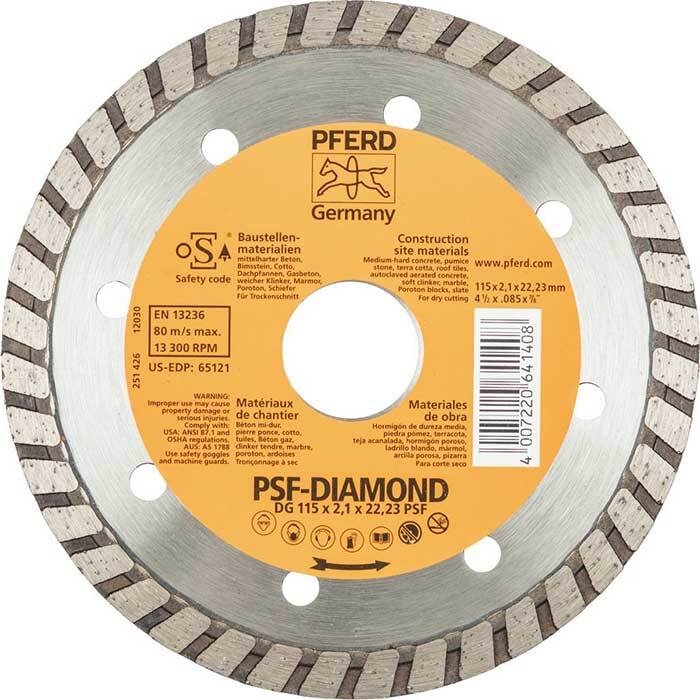

Pferd DG START turbo diamond cut-off wheel, 125mm (5")

The Pferd DG START is a general-purpose diamond cut-off wheel with a continuous rim (TURBO) for easy cutting of building materials. The range has four options: 100, 115, 125 and 230mm.

The DG START is a general-purpose continuous-rim tool for easy cutting (TURBO) with high cutting performance and a good tool life. Key features are high-grade diamond, good cutting characteristics with short cutting times, and good ease of cutting with high economic efficiency.

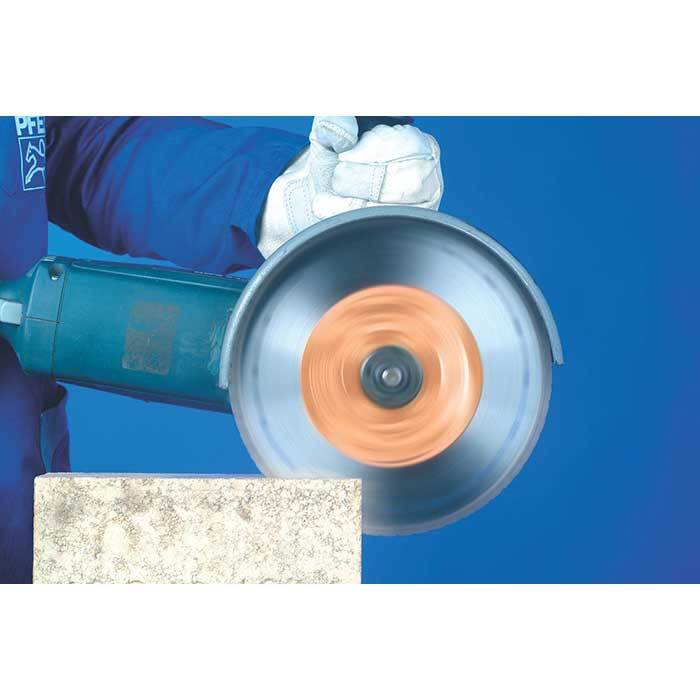

Where this product is used

• Easy cutting of fresh concrete, screed, firebrick, sandstone, clay brick, slate, granite and marble (material guide for the DG type)
• It has Pferd diamond cut-off wheels for concrete, exposed aggregate concrete, clinker brick, hard stone, granite and other abrasive building materials

Features

• Continuous rim (shape DG, TURBO) for easy cutting
• Diameters 100, 115, 125 and 230mm
• Maximum speed from 15,300rpm (100mm) down to 6,600rpm (230mm)
• Rim height (X) 7mm on all four items
• Bore 20mm (100mm wheel, with a 16mm adapter bore listed) or 22.23mm

Key specifications

Choosing the right option

Cutting wet is preferred to dry where possible. Never exceed the maximum speed printed for the item. Pferd diamond tools conform to EN 13236 and carry the oSa mark, and its safety pictograms include wear eye protection, hearing protection and a dust mask, not permitted for face grinding, and do not use if damaged.

For the segmented rim see: Pferd DS START Segmented Diamond Cut-Off Wheel, Pferd DG FL PSF Diamond Cut-Off Wheel.
