Pferd PSF Duo Steelox depressed-centre cutting and grinding

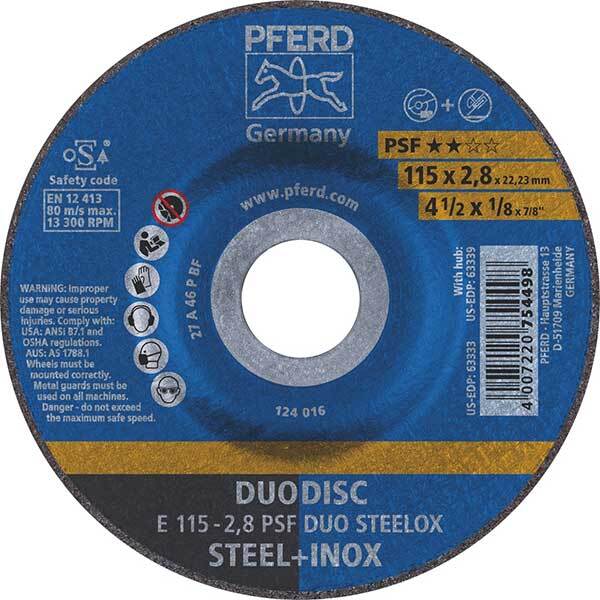

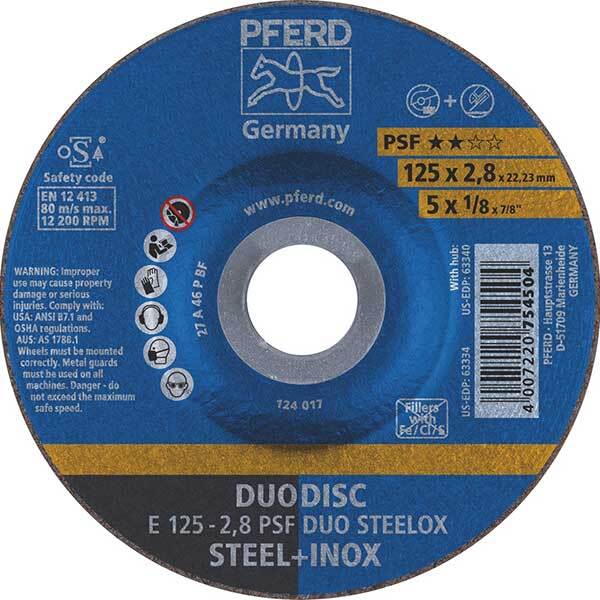

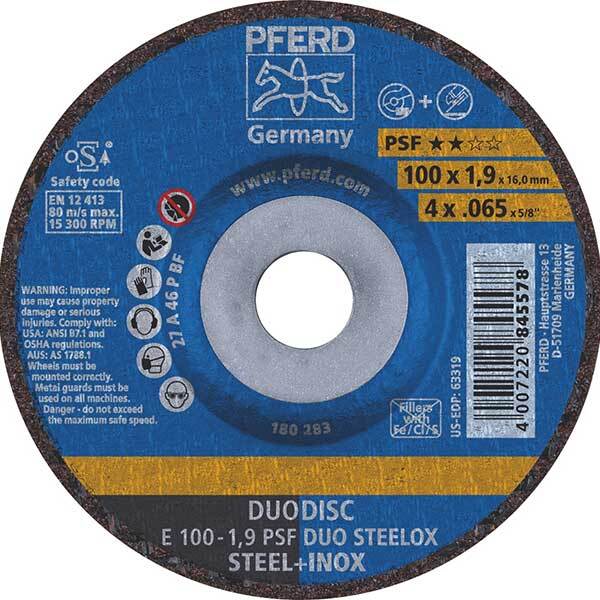

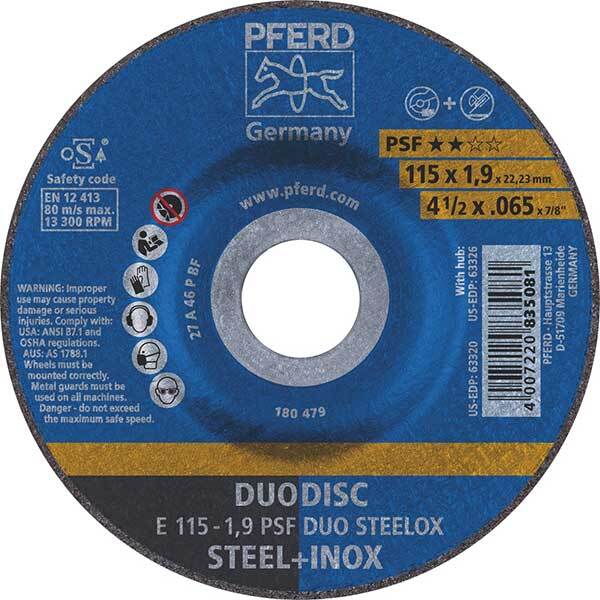

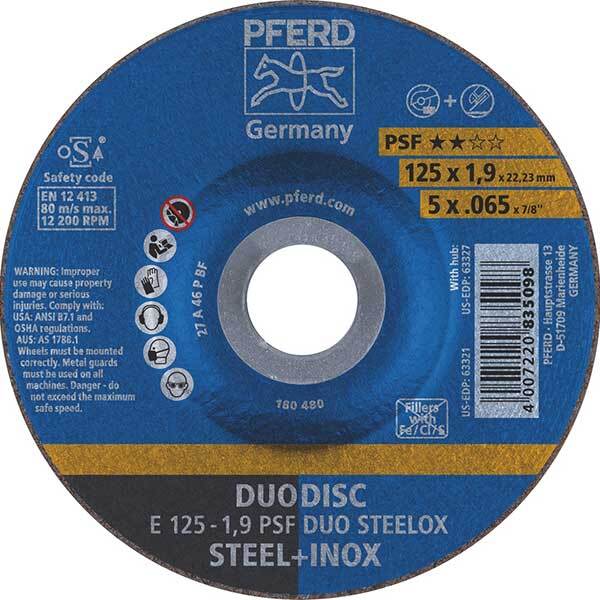

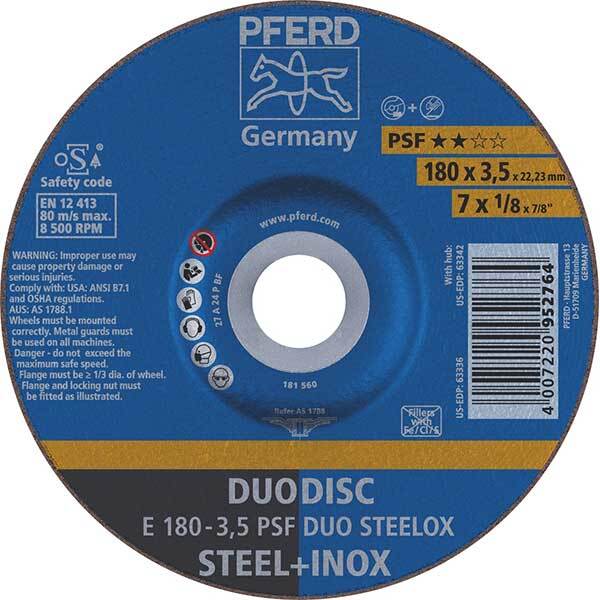

It has 6 Pferd PSF Duo Steelox depressed-centre cutting and grinding wheels, 100 to 180mm in diameter and 1.9, 2.8 and 3.5mm thick. The range is a Universal Line PSF combination wheel for steel and stainless steel (INOX), with high cutting performance and good tool life.

It has these wheels for cutting, deburring, grouting, surface grinding, and work on fillet welds and weld seams in steel and stainless steel (INOX). Each item is a depressed-centre design E (type 27) wheel in the angle grinders, cutting and grinding range. Suitability for stainless steel (INOX) means the wheel is manufactured without the addition of ferrous, chlorinated or sulphurous fillers.

Where this product is used

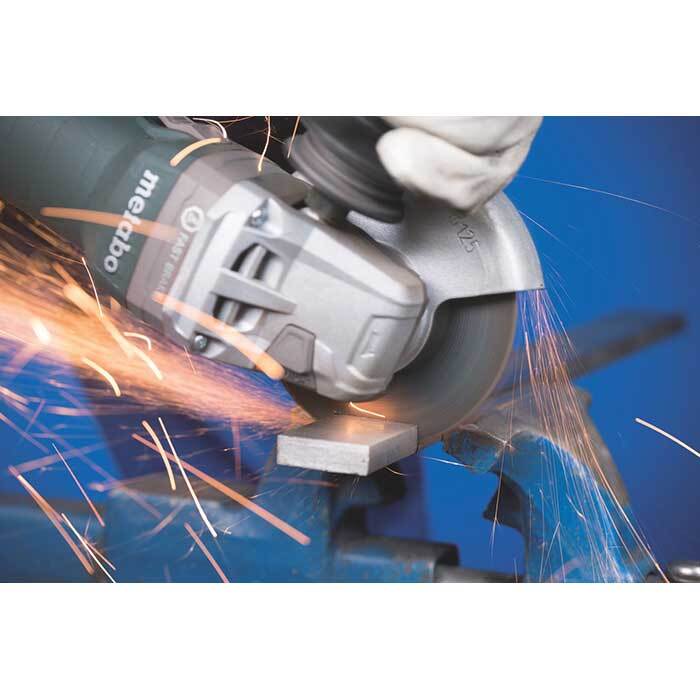

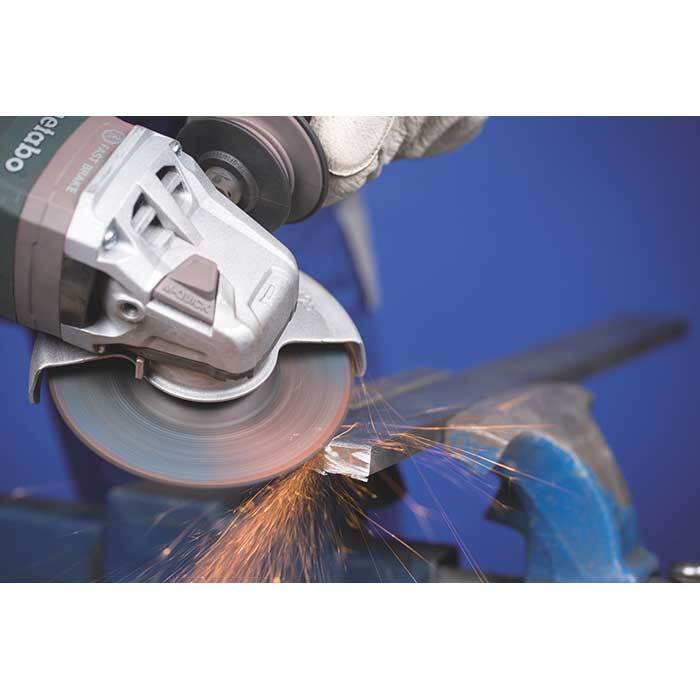

• Cutting, deburring, grouting, surface grinding, and work on fillet welds and weld seams in steel and stainless steel (INOX)
• Tool drive: angle grinders, cutting and grinding
• The label shows the material or materials each wheel is suitable for

Features

• Diameters 100 to 180mm, thicknesses 1.9, 2.8 and 3.5mm, 16 and 22.23mm bore
• Maximum speed from 8,500 to 15,300rpm depending on diameter
• Depressed-centre design E (type 27)
• Combination wheel for cutting and face grinding with one tool
• Described for grinding work on scale and as suited to cordless angle grinders

Key specifications

Choosing the right option

Choose the diameter to suit your angle grinder and its guard, and the thickness to suit the job. Check the Max. RPM for the item against the rated speed of your angle grinder before fitting it. Use a guard, wear eye protection, hearing protection, gloves and a dust mask, follow the safety instructions and not use a damaged tool.

Pferd is a founding member of the Organization for the Safety of Abrasives (oSa). Its grinding tools carry the oSa mark and the EN 12413 standard number for bonded abrasives such as cut-off wheels. Hand-held grinding tools with bond types B and BF, including cut-off wheels, must not be used after the expiry date marked on the label, in accordance with EN 12413; the date is given as month and year. Always observe the instructions on the grinding tool, the grinding machine and all accompanying user information; a tool that cannot be clearly identified should never be used.
