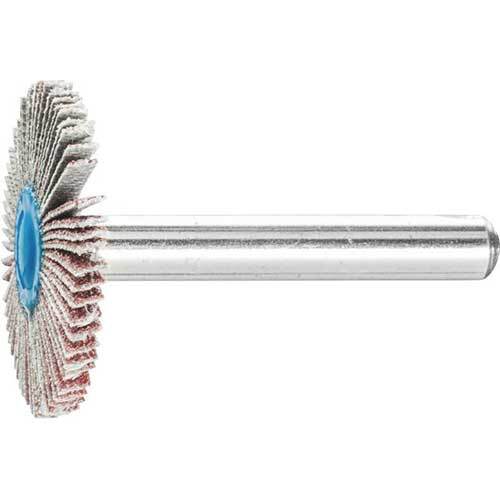

Pferd aluminium oxide fan grinder, grit 80
Available

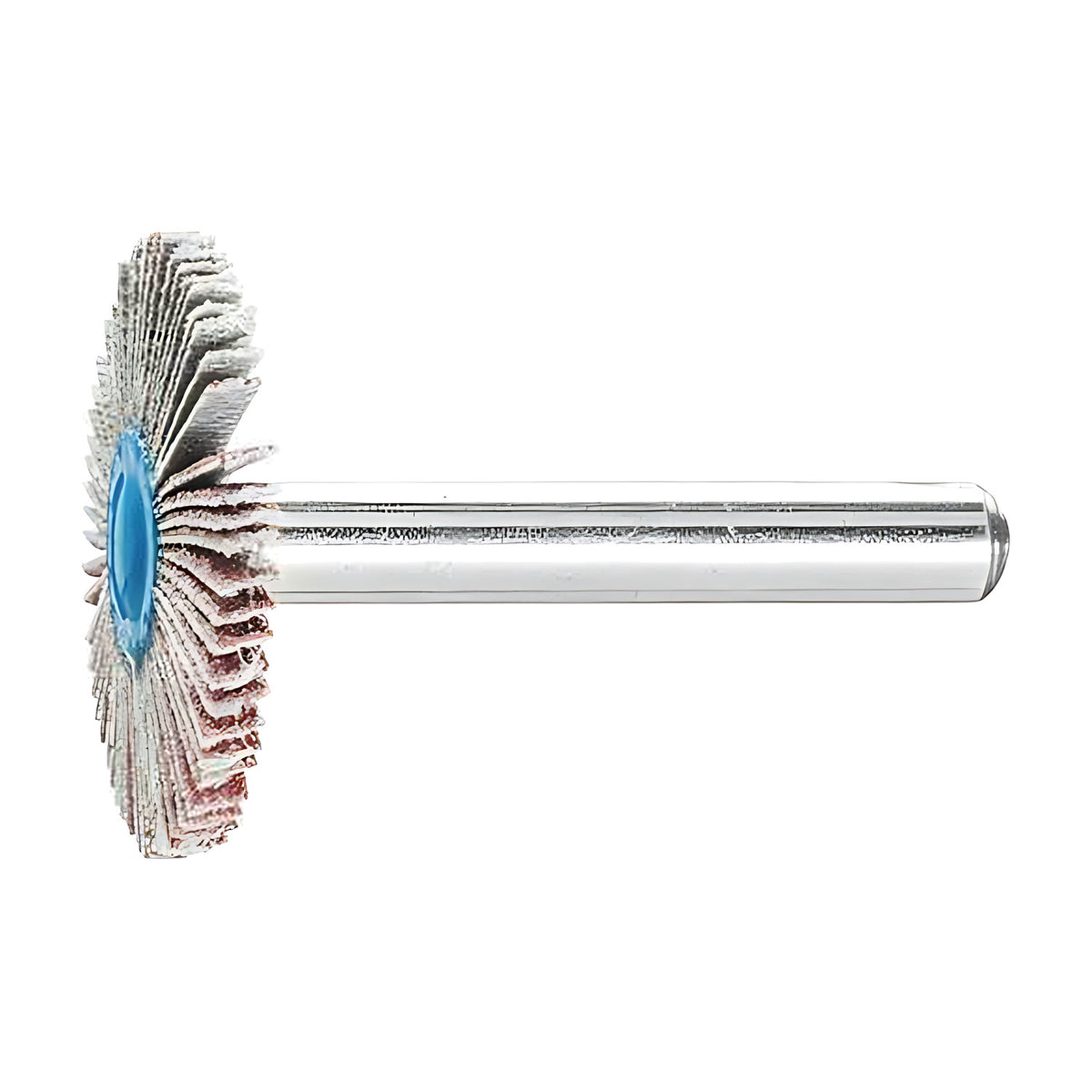

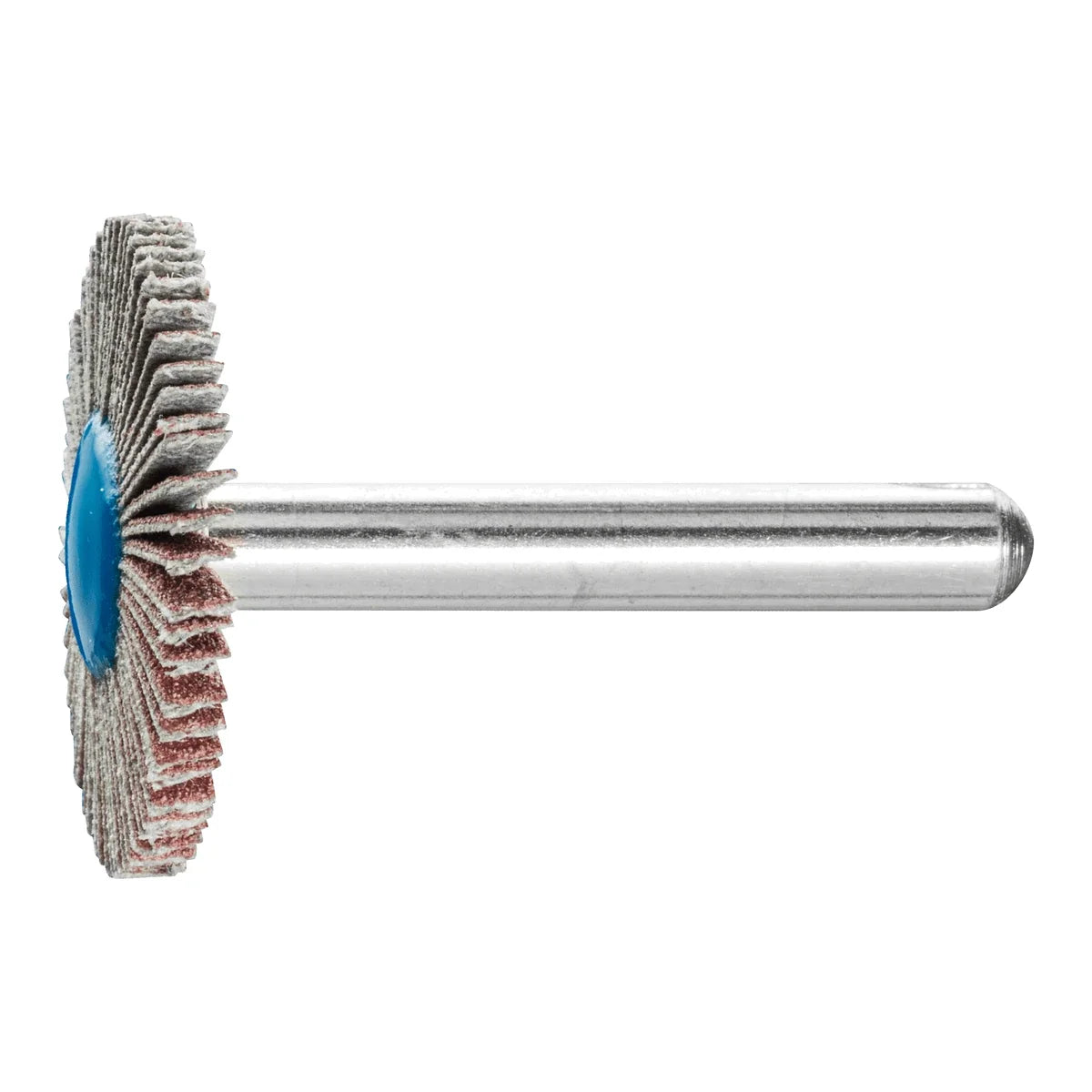

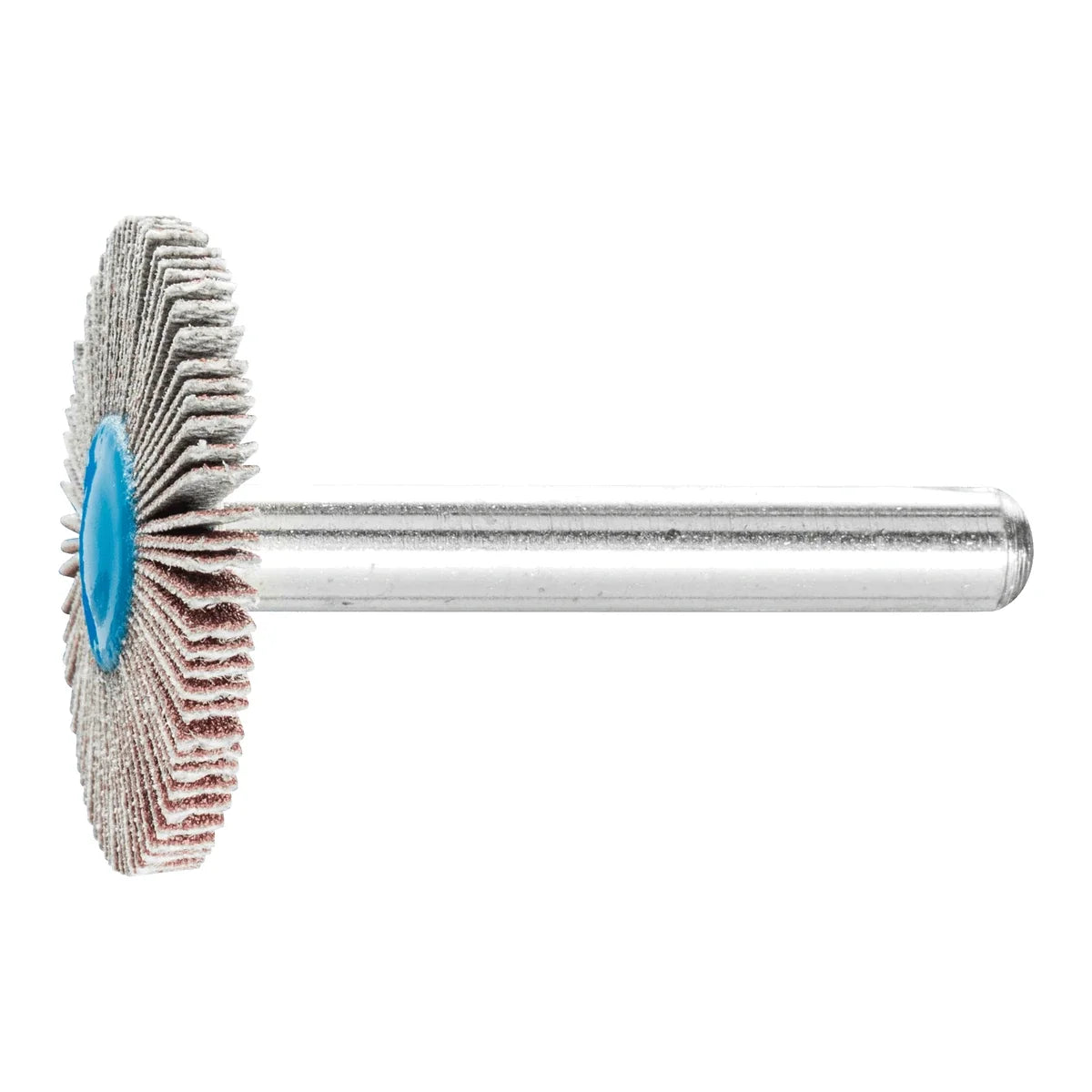

The Pferd 30 x 3mm fan grinder is a shank-mounted flap wheel with a 30mm head diameter and a 3mm head width. Its flaps are aluminium oxide coated abrasive arranged radially around the shank in a fan-type structure.
The range has 4 options: grits 80, 120, 180 and 240 on 6mm shank. Optimum speed is 12,000rpm and maximum speed is 25,400rpm. The aluminium oxide version is suited to general applications from coarse to fine grinding. The flaps are highly flexible, so the tool adjusts to the contour, and the flat, moulded-core design lets you work face-down close to edges and in corners.

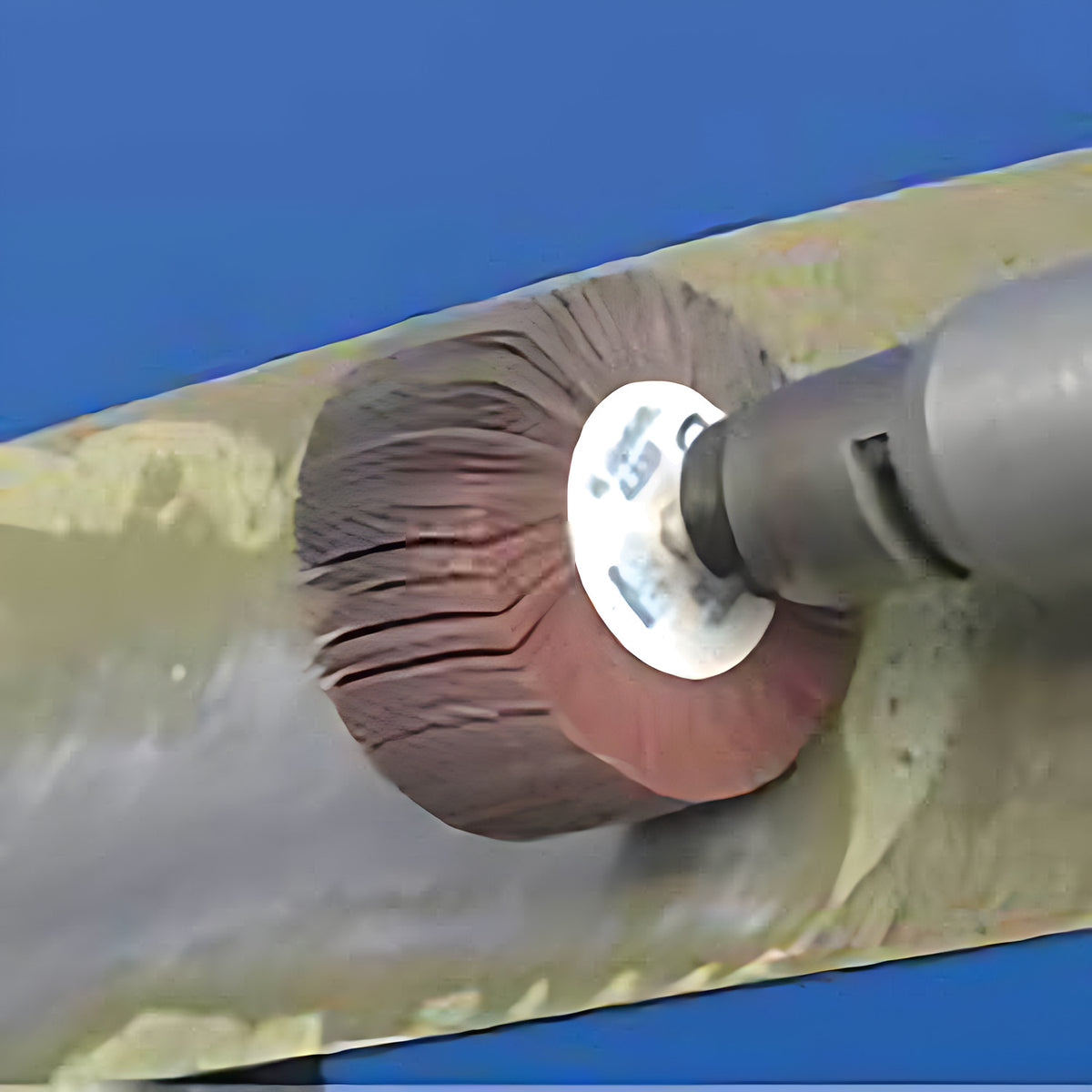

Where this product is used
- Highly suited to non-hardened, non-heat-treated steels and cast steel
- Highly suited to brass, copper and zinc
- Highly suited to grey cast iron and white cast iron
- Suited to hardened and heat-treated steels, soft and hard aluminium alloys, plastics, wood, chipboard and paint

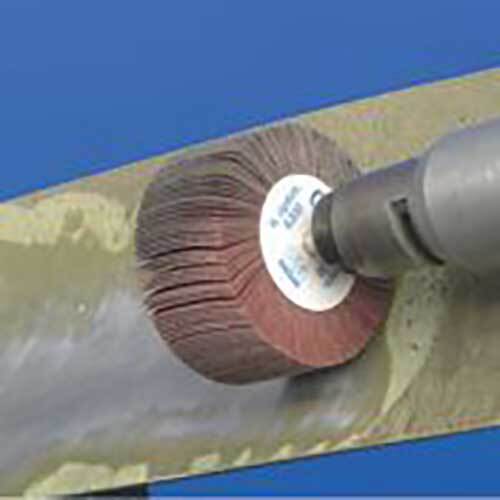

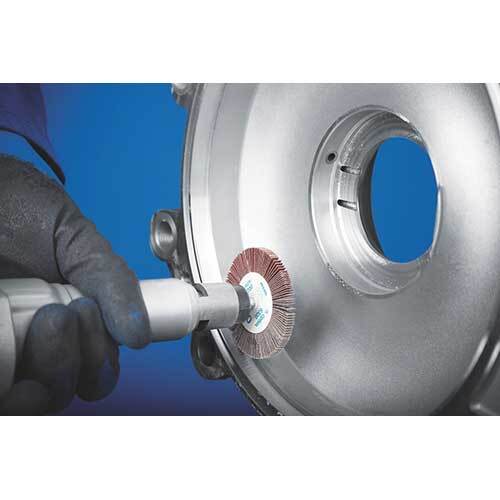

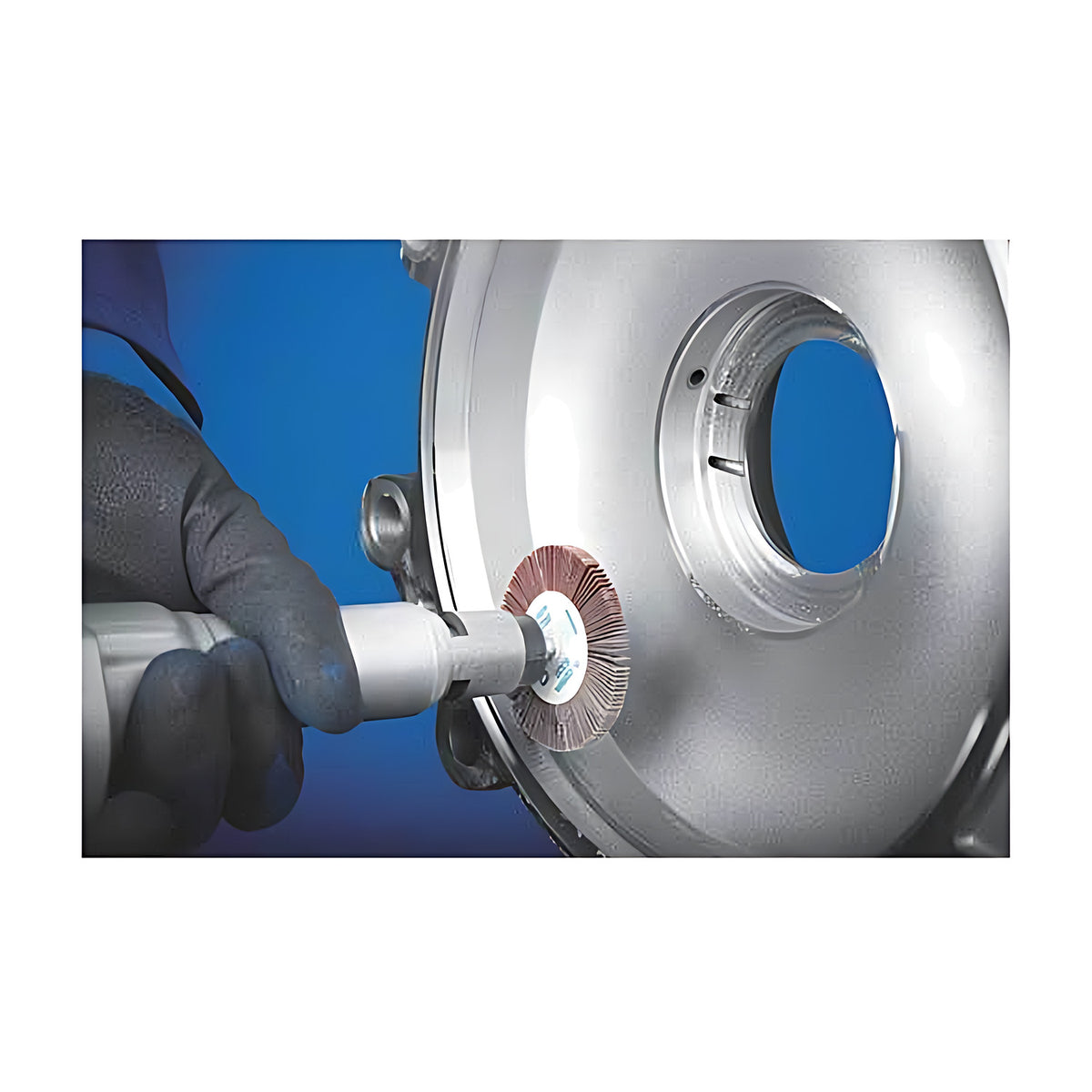

- Grinding close to edges and into corners, using the flat face of the wheel
Features
- Head size 30 x 3mm
- Aluminium oxide flaps in grits 80, 120, 180 and 240
- 6mm shank, 40mm overall length
- Optimum speed 12,000rpm, maximum speed 25,400rpm
- Consistently high stock removal rate as new, aggressive abrasive is constantly exposed
Key specifications
| Specification | Detail |
|---|---|
| Brand | Pferd |
| Head size (D x T) | 30 x 3mm |
| Overall length (L) | 40mm |
| Shank diameter (Sd) | 6mm |
| Abrasive | Aluminium oxide (A) |
| Grit sizes | 80, 120, 180 and 240 |
| Optimum speed | 12,000rpm |
| Maximum speed | 25,400rpm |
Choosing the right option
Match the shank to your tool: this size has a 6mm shank. A higher grit number is a finer abrasive. Do not exceed the maximum speed printed for the item; reduce contact pressure if you run above the optimum speed; clamp at least 15mm of shank.
Other sizes in this range: Pferd Fan Grinder 30 x 5mm, Pferd Fan Grinder 30 x 10mm, Pferd Fan Grinder 30 x 15mm.
| Option | Part number | SKU |
|---|---|---|
| 80 | 44416086 | A0151687 |

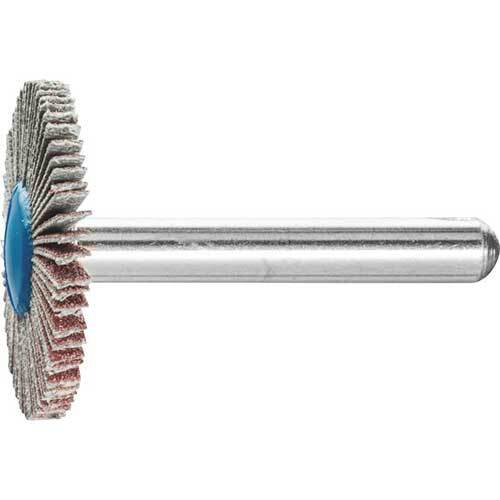

| 120 | 44416126 | A0151688 |

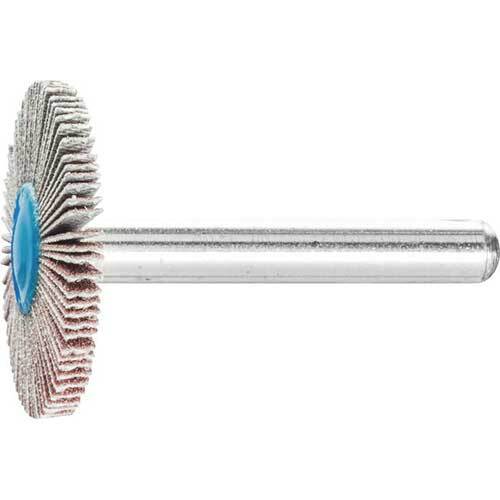

| 180 | 44416186 | A0151689 |

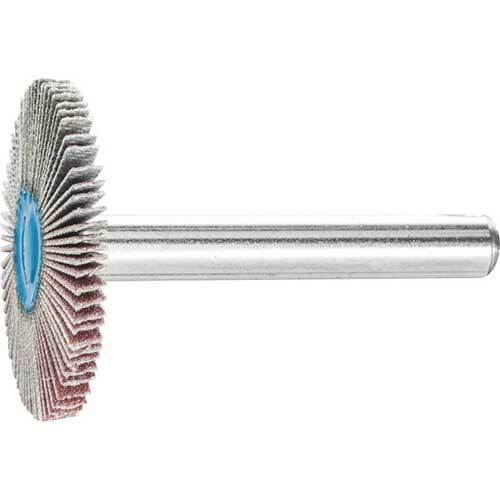

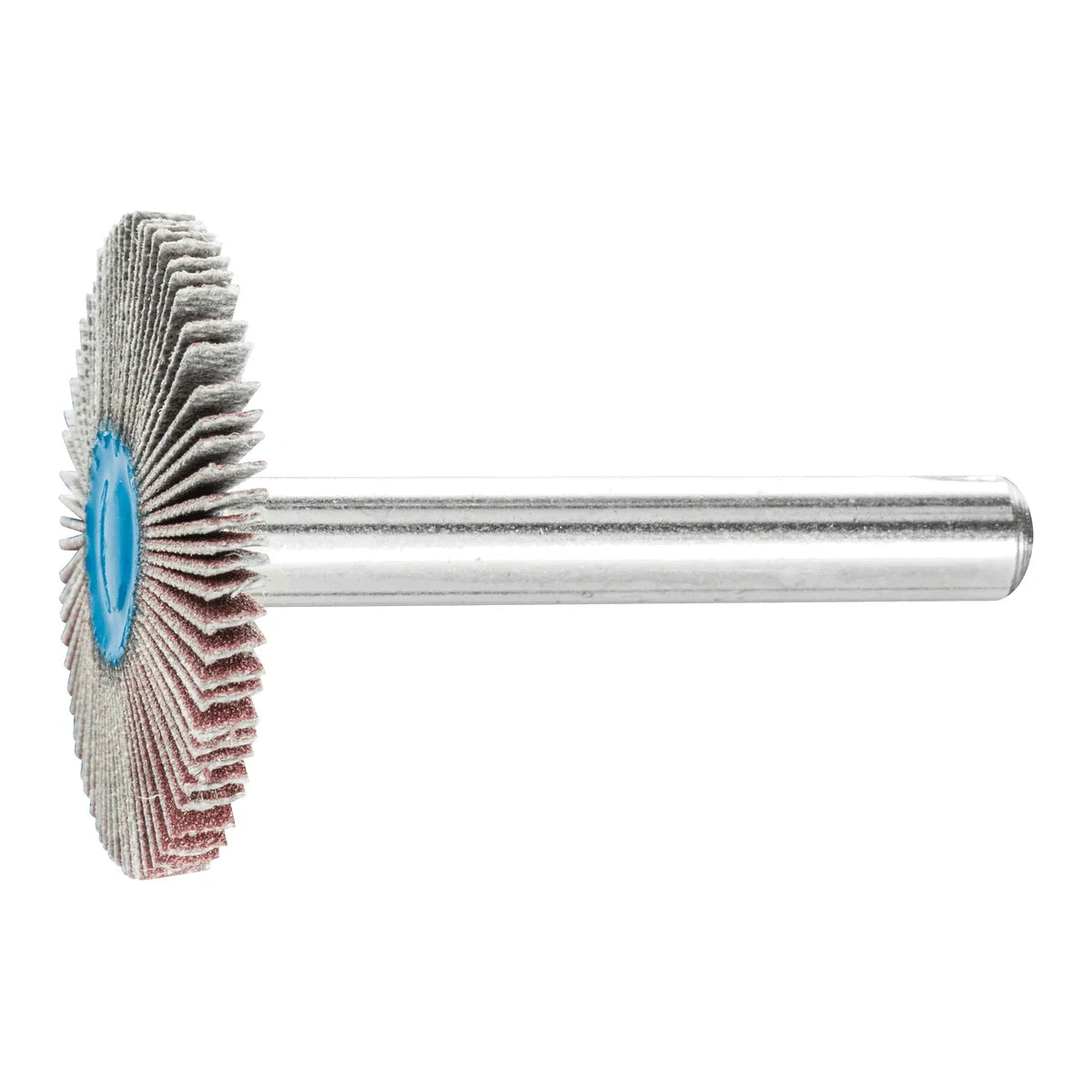

| 240 | 44416246 | A0151690 |
