Pferd aluminium oxide fan grinder, grit 80

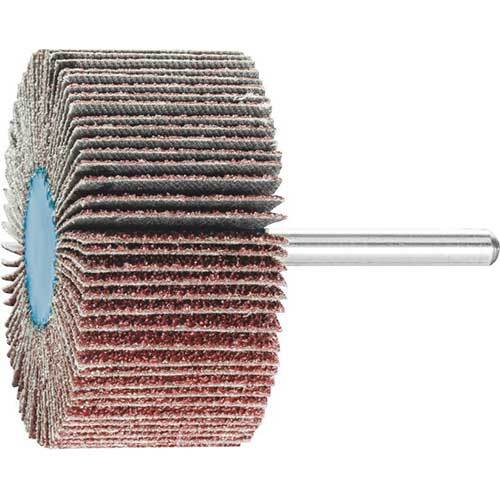

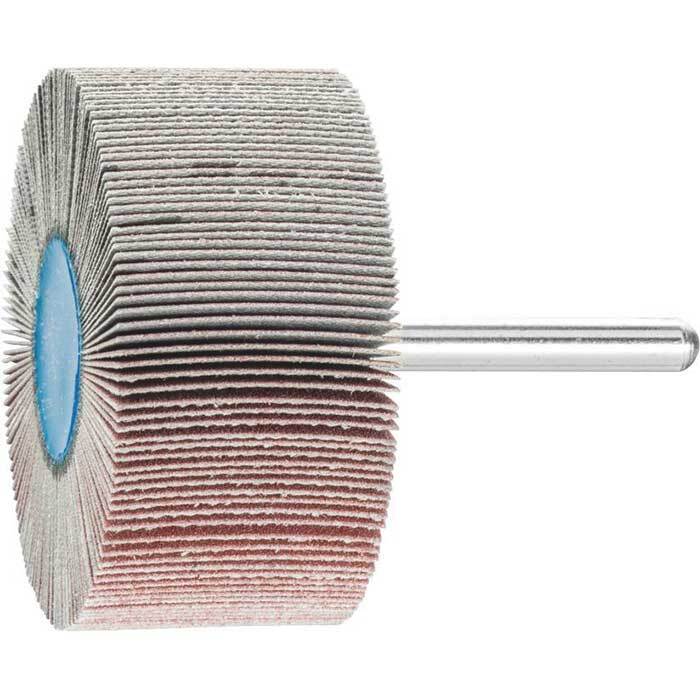

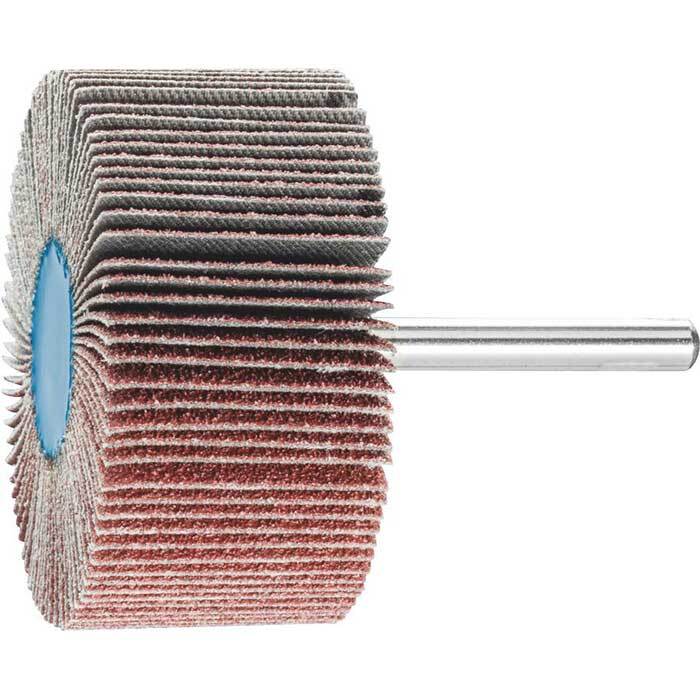

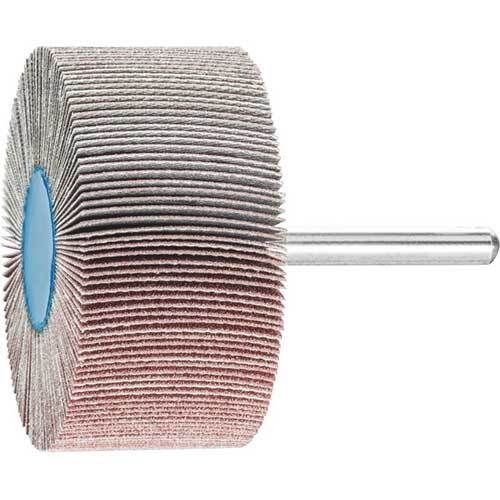

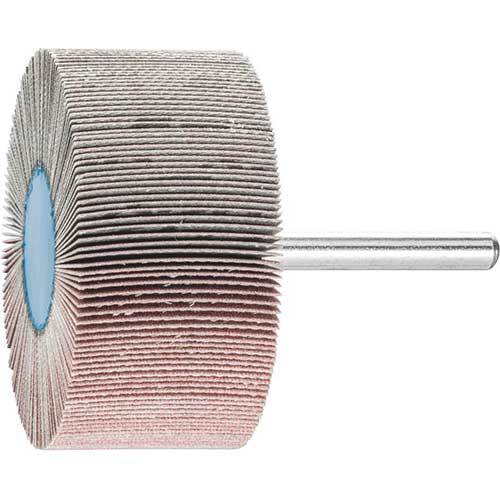

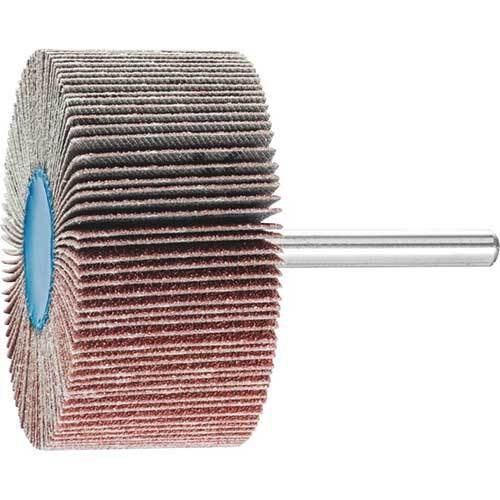

The Pferd 60 x 30mm fan grinder is a shank-mounted flap wheel with a 60mm head diameter and a 30mm head width. Its flaps are aluminium oxide coated abrasive arranged radially around the shank in a fan-type structure.

The range has 7 options: grits 40, 60, 80, 120, 150, 240 and 320 on 6mm shank. Optimum speed is 6,300rpm and maximum speed is 12,700rpm. The aluminium oxide version is suited to general applications from coarse to fine grinding. The flaps are highly flexible, so the tool adjusts to the contour, and the flat, moulded-core design lets you work face-down close to edges and in corners.

Where this product is used

• Highly suited to non-hardened, non-heat-treated steels and cast steel
• Highly suited to brass, copper and zinc
• Highly suited to grey cast iron and white cast iron
• Suited to hardened and heat-treated steels, soft and hard aluminium alloys, plastics, wood, chipboard and paint

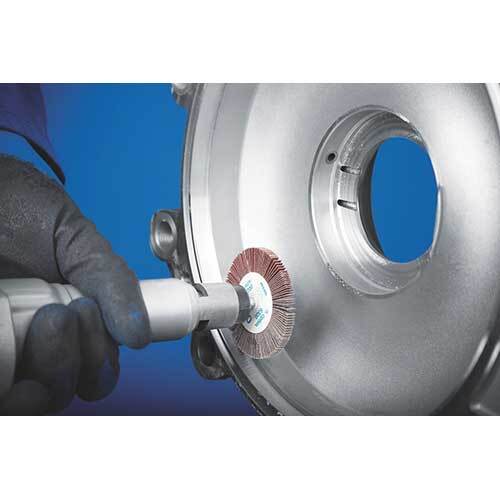

• Grinding close to edges and into corners, using the flat face of the wheel

Features

• Head size 60 x 30mm
• Aluminium oxide flaps in grits 40, 60, 80, 120, 150, 240 and 320
• 6mm shank, 40mm overall length
• Optimum speed 6,300rpm, maximum speed 12,700rpm
• Consistently high stock removal rate as new, aggressive abrasive is constantly exposed

Key specifications

Choosing the right option

Match the shank to your tool: this size has a 6mm shank. A higher grit number is a finer abrasive. Do not exceed the maximum speed printed for the item; reduce contact pressure if you run above the optimum speed; clamp at least 15mm of shank.

Other sizes in this range: Pferd Fan Grinder 60 x 20mm, Pferd Fan Grinder 60 x 40mm, Pferd Fan Grinder 50 x 30mm.
