Pferd 43679001 Tube Brush IBU 8 x 80 mm, M6 Thread, Steel Wire 0.15 mm
Available

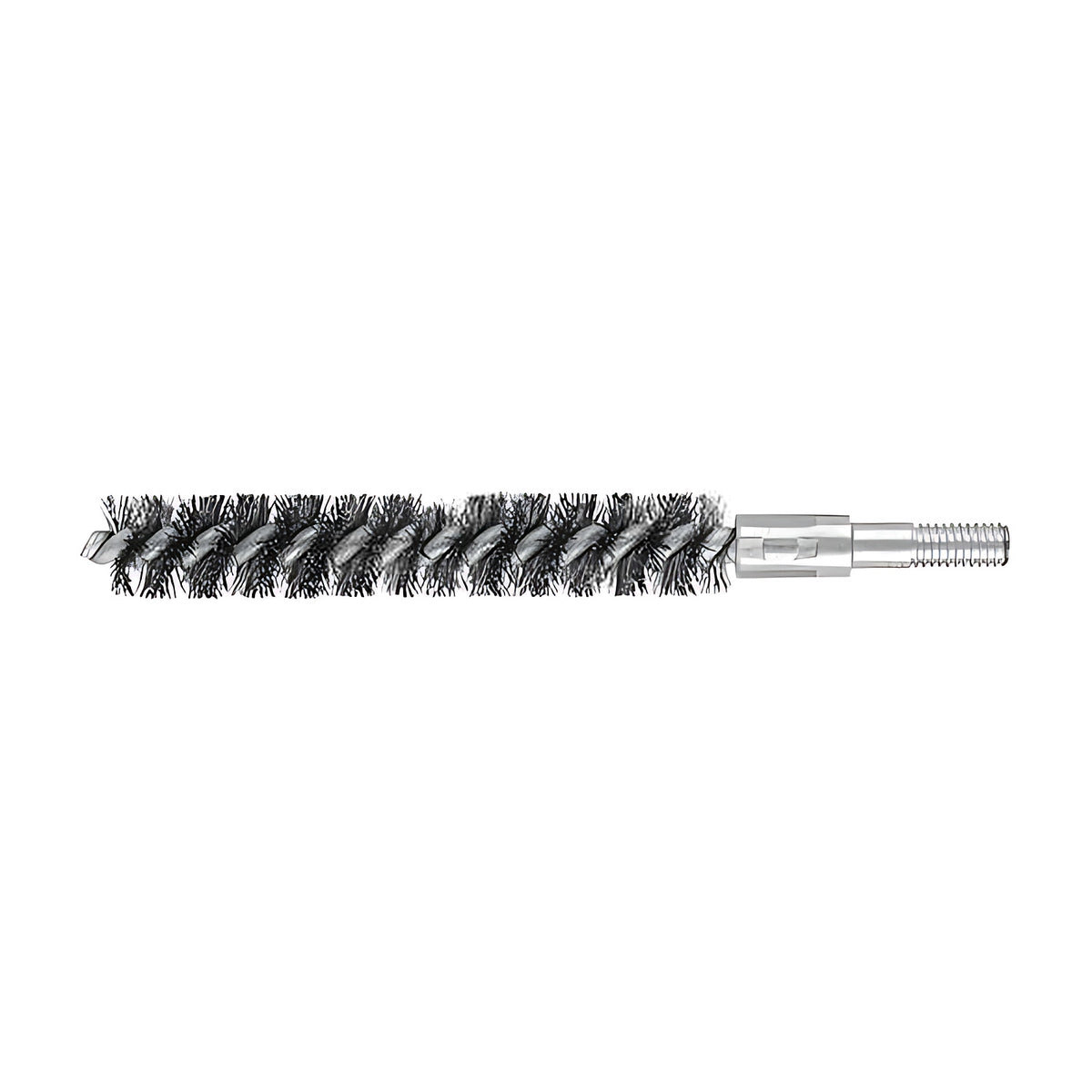

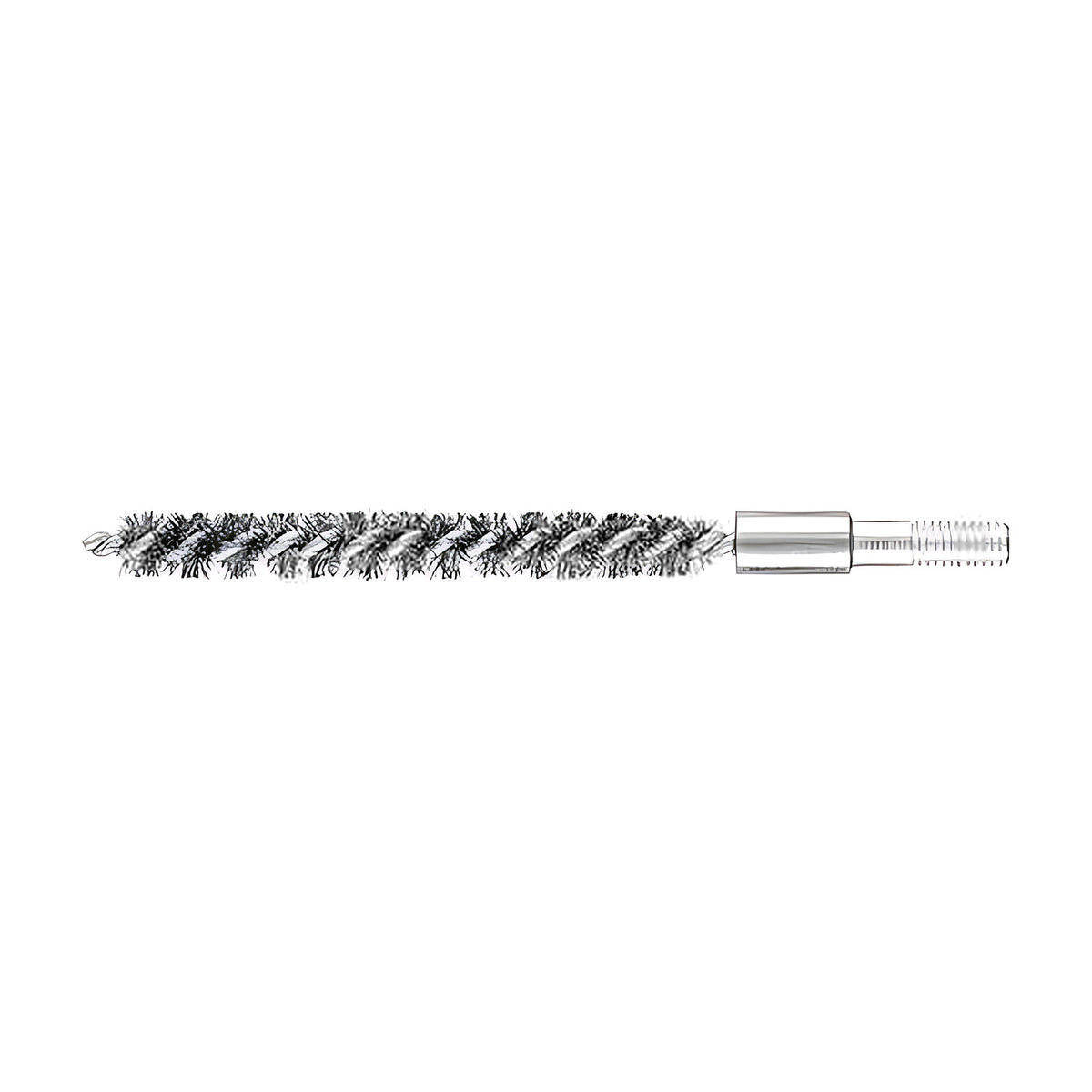

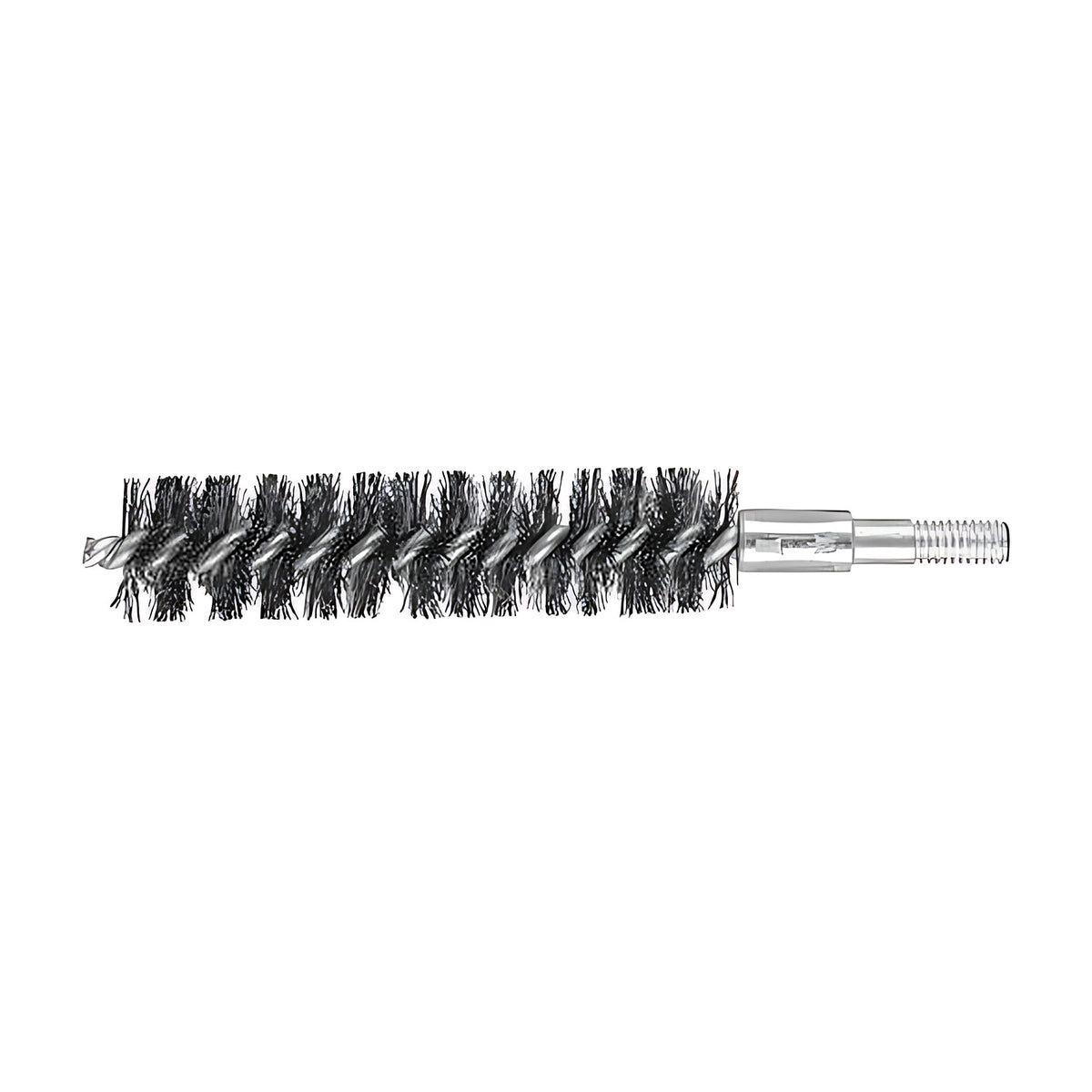

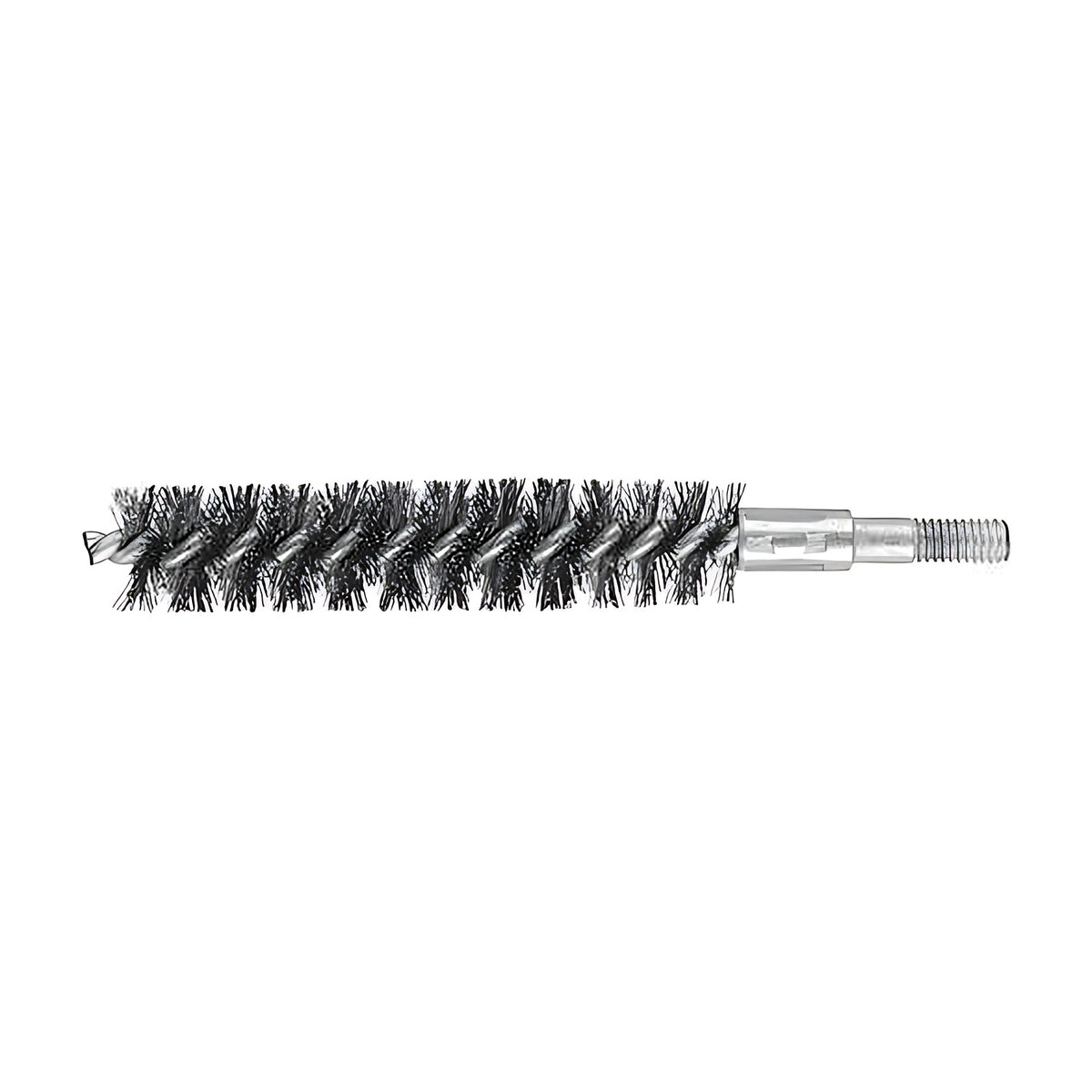

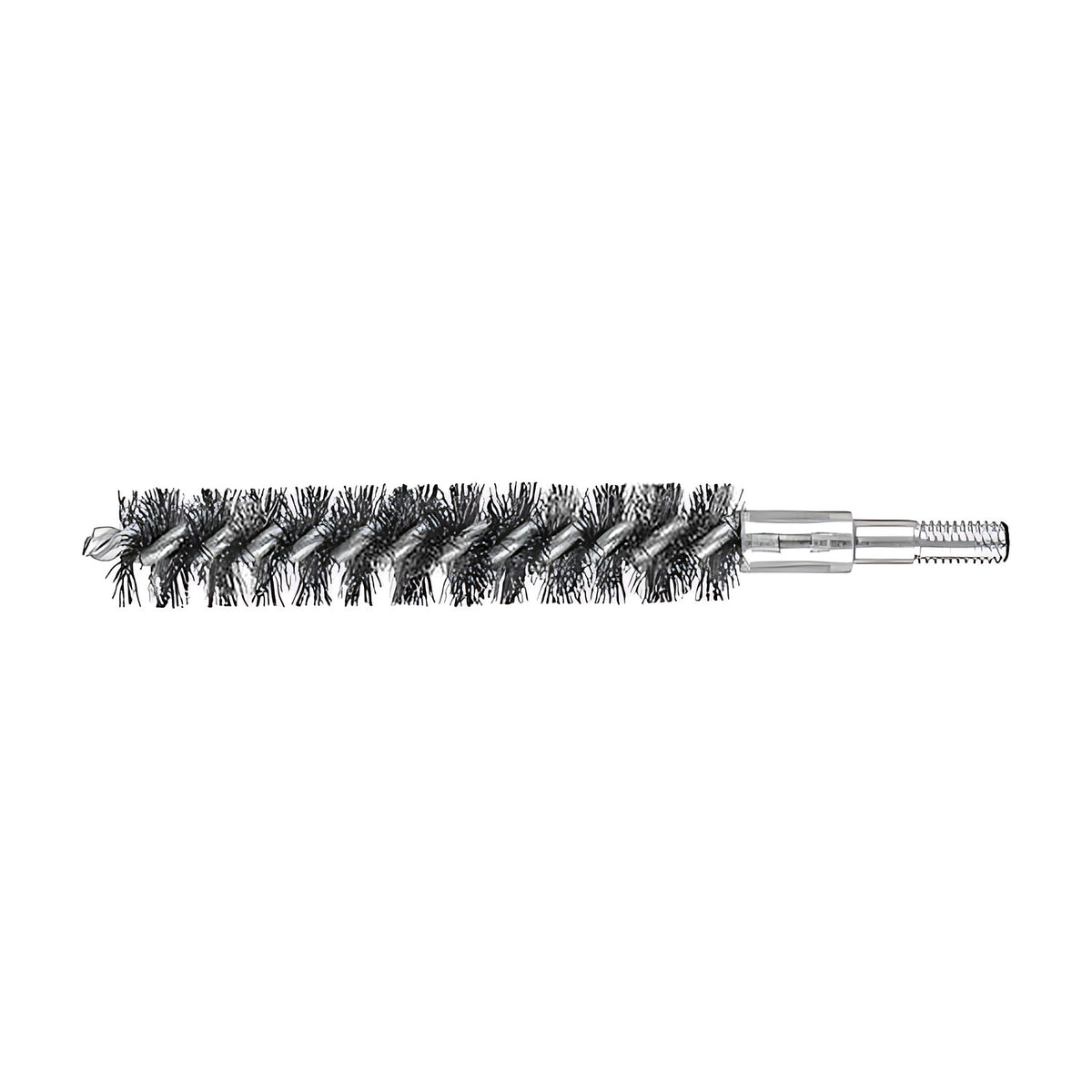

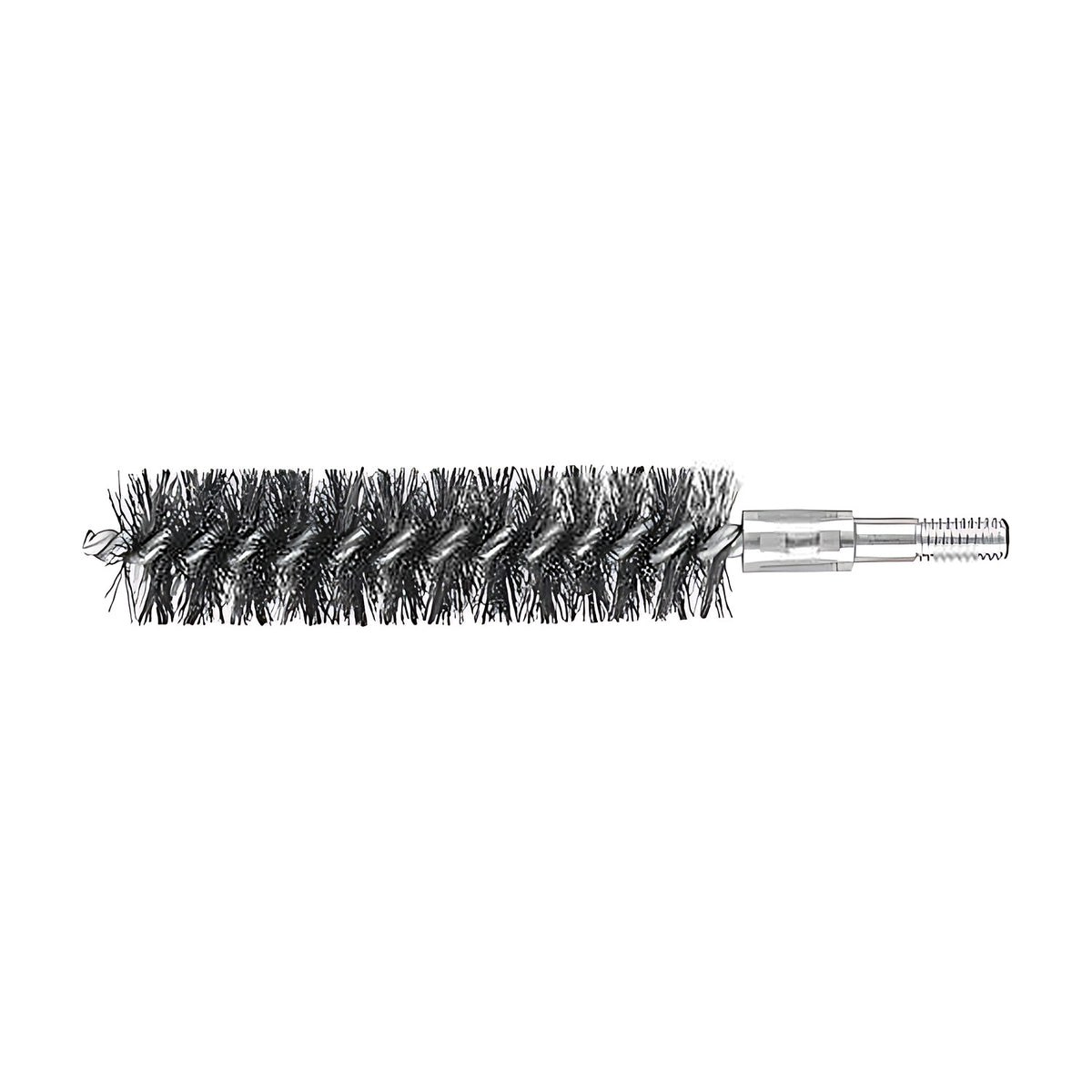

The Pferd IBU is a tube brush. It has an M6 thread, an integrated 6 mm shank and steel wire filament. This page lists 8 items: 8 x 80 mm, 10 x 80 mm, 12 x 80 mm, 13 x 80 mm, 15 x 80 mm, 16 x 80 mm, 18 x 80 mm and 20 x 80 mm (brush diameter and trim length).
The catalogue describes the IBU as suited to deburring and cleaning pipes, threads, coupling sleeves and cylinders (manufacturer-stated).
Filament diameters are 0.15 mm and 0.20 mm. Maximum speed is 1,000 rpm (manufacturer-stated).
Steel wire: high tensile and bending fatigue strength, temperature resistance up to 300°C (manufacturer-stated).
Special features listed in the catalogue: integrated shank, so it can be clamped in collets (M6 = 6 mm shank); creates fine surfaces (manufacturer-stated).
Where this product is used
- Suited to deburring and cleaning pipes, threads, coupling sleeves and cylinders (manufacturer-stated)
- Steel wire is rated highly suitable for steel and cast iron, and suitable for plastics (manufacturer-stated)
Features
- Brush diameter and trim length: 8 x 80 mm, 10 x 80 mm, 12 x 80 mm, 13 x 80 mm, 15 x 80 mm, 16 x 80 mm, 18 x 80 mm and 20 x 80 mm
- M6 thread with integrated 6 mm shank (manufacturer-stated)
- Steel wire (ST), filament diameters 0.15 mm and 0.20 mm (manufacturer-stated)
- Maximum speed 1,000 rpm (manufacturer-stated)
- Integrated shank, so it can be clamped in collets (M6 = 6 mm shank) (manufacturer-stated)
- Creates fine surfaces (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Sizes (D x WF) | 8 x 80 mm, 10 x 80 mm, 12 x 80 mm, 13 x 80 mm, 15 x 80 mm, 16 x 80 mm, 18 x 80 mm and 20 x 80 mm |
| Trim length (WF) | 80 mm |
| Thread (DT) | M6 |
| Overall length (L) | 120 mm (manufacturer-stated) |
| Filament material | Steel wire (ST) (manufacturer-stated) |
| Maximum speed | 1,000 rpm (manufacturer-stated) |
Key specifications
| Model | Designation | Brush diameter (D) | Filament diameter (DF) |
|---|---|---|---|

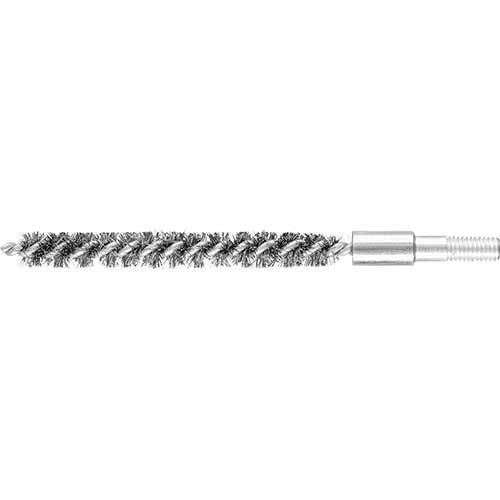

| 43679001 | IBU 0880/M6 ST 0,15 | 8 mm | 0.15 mm (manufacturer-stated) |

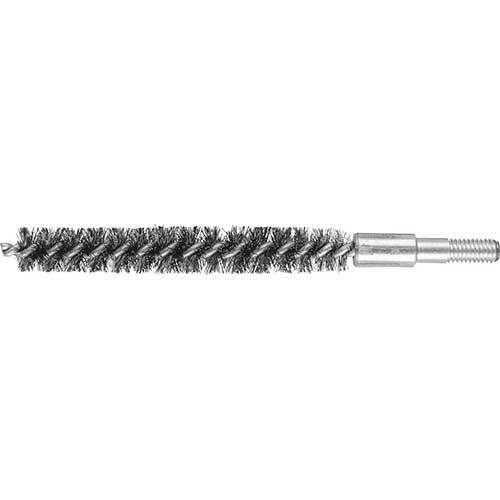

| 43679011 | IBU 1080/M6 ST 0,15 | 10 mm | 0.15 mm (manufacturer-stated) |

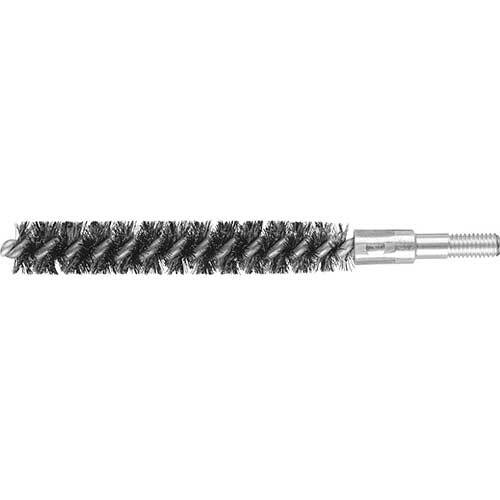

| 43679021 | IBU 1280/M6 ST 0,15 | 12 mm | 0.15 mm (manufacturer-stated) |

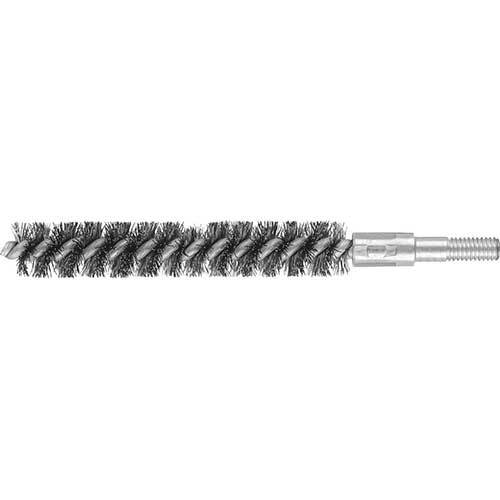

| 43679031 | IBU 1380/M6 ST 0,20 | 13 mm | 0.20 mm (manufacturer-stated) |

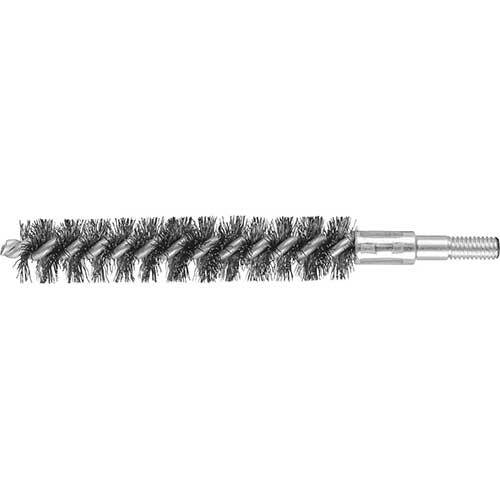

| 43679041 | IBU 1580/M6 ST 0,20 | 15 mm | 0.20 mm (manufacturer-stated) |

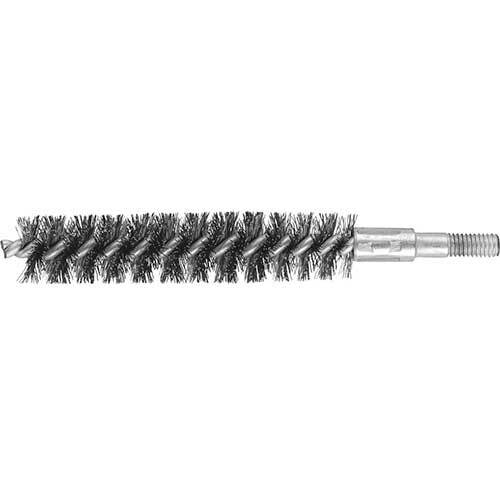

| 43679051 | IBU 1680/M6 ST 0,20 | 16 mm | 0.20 mm (manufacturer-stated) |

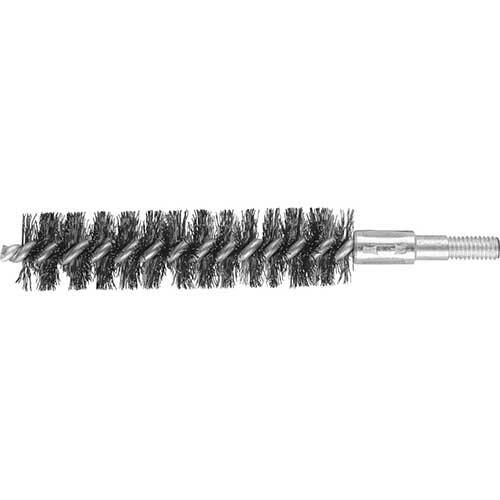

| 43679061 | IBU 1880/M6 ST 0,20 | 18 mm | 0.20 mm (manufacturer-stated) |

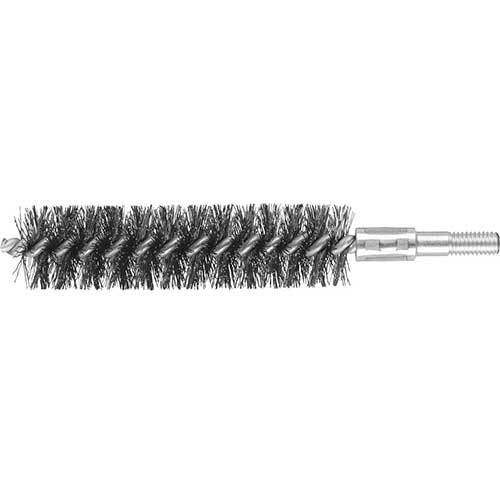

| 43679071 | IBU 2080/M6 ST 0,20 | 20 mm | 0.20 mm (manufacturer-stated) |
Each item number is a separate size.
Selecting the right option
Choose the brush diameter to suit the bore you are cleaning. Steel wire is rated not suitable for stainless steel, aluminium or non-ferrous metals (manufacturer-stated). Never exceed the maximum permitted speed marked on the brush, its label and in the catalogue (manufacturer-stated).
Related products
The same IBU tube brushes in stainless steel wire, and the M6 extensions: Pferd Tube Brush IBU M6, Stainless Steel Wire, 8 to 20 mm Diameter x 80 mm and Pferd IBUV Extension for Tube Brushes, M6 Thread, 300 mm and 1,000 mm.
