Pferd SG Chop Steel cut-off wheel, 300mm (12")

It has 3 Pferd SG Chop Steel cut-off wheels for stationary machines, 300, 350 and 400mm in diameter, 2.8 and 3.8mm thick, with 25.4mm bore. The range is a Performance Line SG chop saw cut-off wheel with a middle fabric, for steel.

It has these wheels for cutting solid material, profiles and pipes in steel on a chop saw (up to 3 kW). Each item is a flat design T (type 41) wheel in the CHOPSAW up to 3 kW range.

Where this product is used

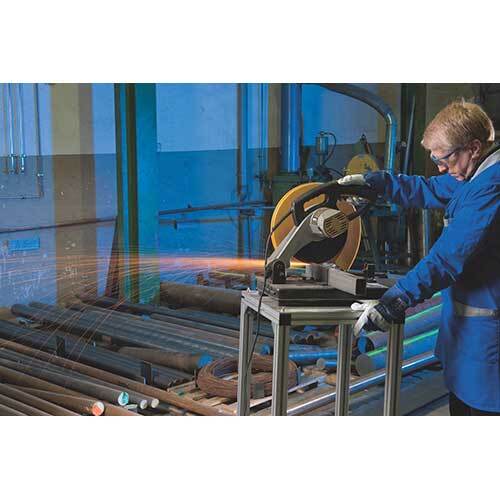

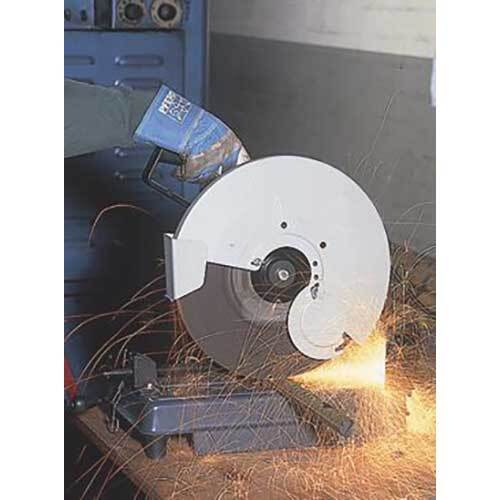

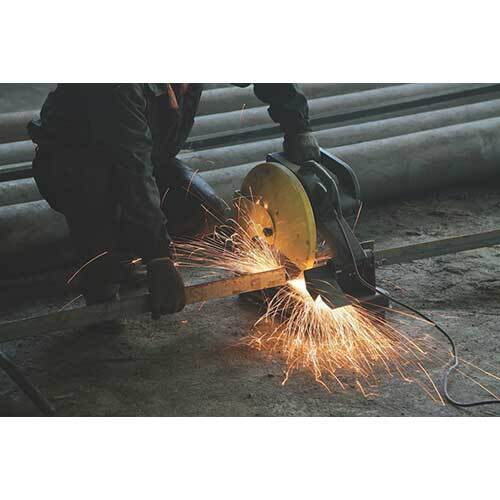

• Cutting solid material, profiles and pipes in steel on a chop saw (up to 3 kW)
• Tool drive: CHOPSAW up to 3 kW
• The label shows the material or materials each wheel is suitable for

Features

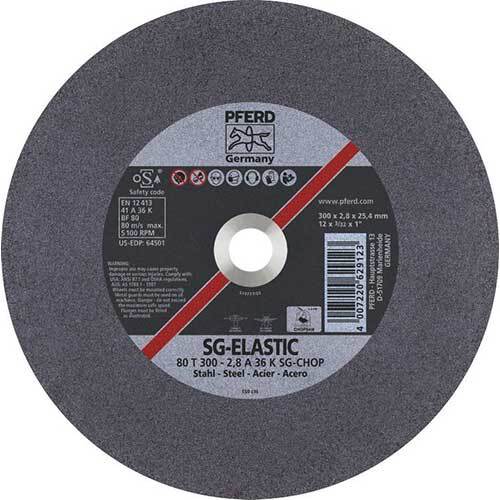

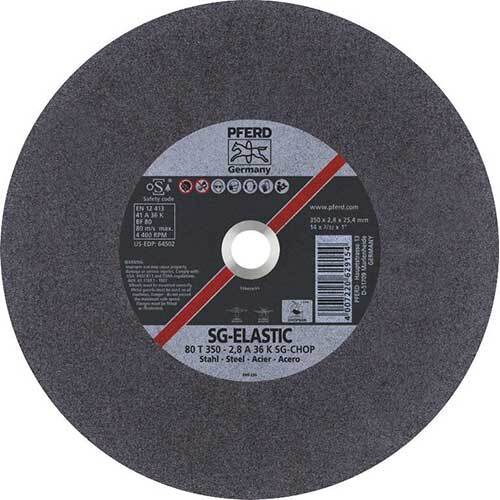

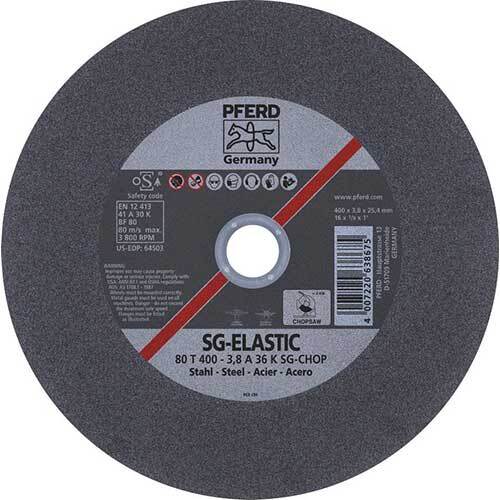

• Diameters 300, 350 and 400mm, thicknesses 2.8 and 3.8mm, 25.4mm bore
• Hardness grade K (very soft)
• Maximum operating speed 80 m/s, maximum from 3,800 to 5,100rpm depending on diameter
• Flat design T (type 41)
• Middle fabric construction for steel, for cutting with minimal burr formation
• Tool drive: CHOPSAW up to 3 kW

Key specifications

Choosing the right option

Choose the diameter, thickness and bore to suit your machine and its flanges, and check the maximum operating speed in m/s and the Max. RPM for the item against the machine before fitting it. The safe use of its tools depends largely on proper clamping, with equally sized flanges and intermediate paper layers where needed.

Pferd is a founding member of oSa, the Organization for the Safety of Abrasives. Its cut-off wheels are marked to EN 12413 for grinding tools made of bonded abrasive. Both flanges between which the wheel is mounted must have the same outer diameter and the same support area (in line with EN 13218, ANSI B7.1). Use equally sized flanges and a machine spindle with high concentricity; change the intermediate paper layers after every second wheel change, and always use them from 400mm diameter up.
