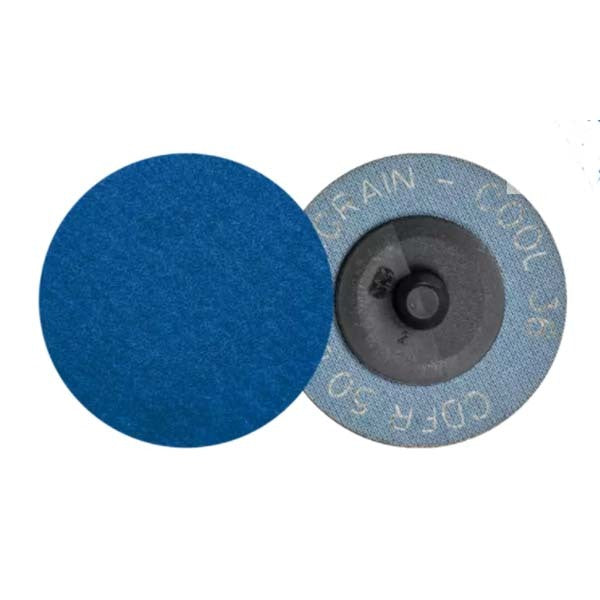

Pferd combidisc CDFR VICTOGRAIN-COOL, 50mm

The Pferd Combidisc CDFR VICTOGRAIN-COOL midget fibre disc is a small-diameter mini disc for the COMBIDISC CDR clamping system. It is used with a CDR-system holder such as the SBHR, ordered separately. The range has 2 options in 50 and 75mm, grit 36.

The this range is VICTOGRAIN-COOL mini fibre discs, types CDF and CDFR, for maximum aggressive grinding with an extremely long tool life on steel and hard materials that do not conduct heat well. The CDR clamping system is a tool-side threaded connection with a male thread (plastic), and the CD system as a tool-side threaded connection with a female thread (metal/plastic). It has these features for the COMBIDISC system: comfortable to use with low-vibration working, no disruptions in use due to adhesion, slipping or coming loose, and quick tool changes.

Where this product is used

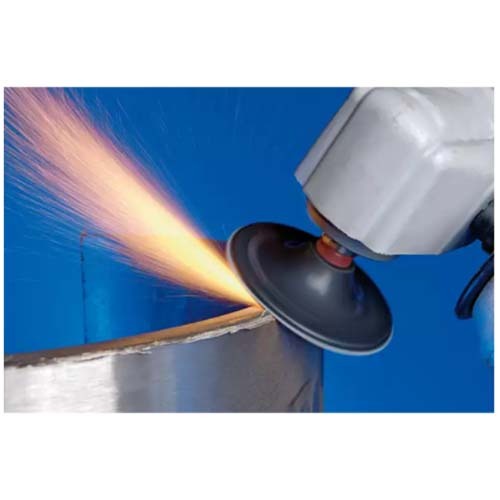

• Surface and edge grinding on steel and hard materials
• Aggressive grinding on materials that do not conduct heat well

Features

• Combidisc CDFR VICTOGRAIN-COOL, 50 and 75mm
• VICTOGRAIN-COOL, grit 36
• The fibre backing strengthens the abrasive disc and improves stock removal
• Active grinding additives in the coating prevent clogging and give cooler grinding
• Comfortable to use, with low-vibration working
• Maximum peripheral speed 50 m/s

Key specifications

Choosing the right option

A higher grit number is a finer abrasive. The maximum permitted peripheral speed is 50 m/s and says the maximum rotational speed indicated must never be exceeded. It also says to wear gloves, a dust mask and eye and hearing protection, and to follow the safety instructions. Use a holder that matches the clamping system: SBHR holders belong to the CDR system.

Other COMBIDISC items: Pferd Combidisc Abrasive Disc CDR CO-COOL, 50 and 75mm, Grits 36 to 120, Pferd Combidisc Abrasive Disc CDR Zirconia Alumina Z, 50 and 75mm, Grits 36 to 80, Pferd Combidisc Abrasive Disc CDR A-FORTE, 50 and 75mm, Grits 36 to 120.

Holder to match: Pferd Combidisc Holder SBHR, Medium, 20 to 75mm.
