Pferd Mounted Point STEEL Series A Shape A 1 19 x 64 mm, Grit 30, 6.35 mm Shank - Pack of 10 (35001253)
The price shown is for the pack.
Available

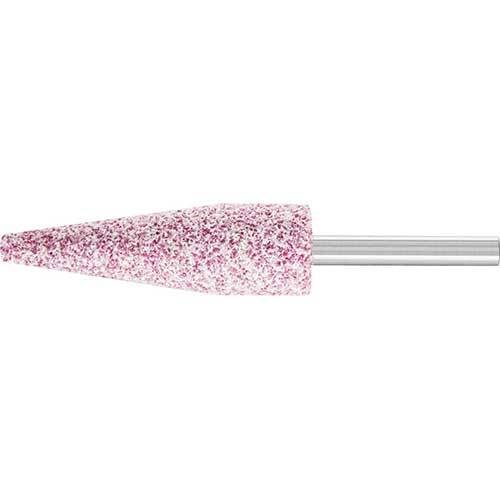

Item 35001253 is a STEEL series A shape A 1 mounted point with a 19 x 64mm head in grit 30 on a 6.35mm shank. It is supplied as a pack of 10.
The STEEL type is suited to grinding high-speed steel (HSS) moulded parts and to weld dressing of weld seams on steel constructions. The series A shapes are suited to a wide range of different contours. It has a vitrified bond for this type, a recommended cutting speed of 30 to 50 m/s, and for this item an optimum speed of 33,500rpm and a maximum speed of 33,500rpm.
Where this product is used
- Grinding HSS moulded parts and weld dressing of weld seams on steel constructions
- General use on steel materials, particularly on surfaces
- Highly suited to steels up to 1,200 N/mm² (below 38 HRC): universal and surface grinding
- Highly suited to hardened, heat-treated steels over 1,200 N/mm² (over 38 HRC): universal grinding
- Highly suited to cast steel: surface grinding
- Suited to steels up to 1,200 N/mm²: edge grinding, hardened, heat-treated steels: surface grinding, cast steel: edge grinding, stainless steel (INOX): surface grinding, hard non-ferrous metals (bronze, titanium, hard aluminium alloys): universal grinding
Features
- STEEL type, series A shape A 1
- Head size 19 x 64mm, grit 30
- 6.35mm shank, 40mm shank length (L2)
- Optimum speed 33,500rpm, maximum speed 33,500rpm
- High grinding performance and stock removal rate in general use on steel materials
- Shortened grinding times and cost savings thanks to the high stock removal rate
Key specifications
| Specification | Detail |
|---|---|
| Brand | Pferd |
| Designation | A 1 6,3 ADW 30 M5V STEEL |
| Type | STEEL |
| Shape | Series A (A 1) |
| Head size (D x T) | 19 x 64mm |
| Grit size | 30 |
| Shank diameter (Sd) | 6.35mm |
| Shank length (L2) | 40mm |
| Bond | Vitrified |
| Abrasive code | ADW |
| Abrasive | Aluminium oxide |
| Optimum speed | 33,500rpm |
| Maximum speed | 33,500rpm |
| Pack quantity | 10 |
Choosing the right option
Check that the 6.35mm shank suits your collet. A higher grit number is a finer abrasive. Keep to the maximum speed printed for the item. All Pferd mounted points are approved for a maximum operating speed of 50 m/s, the maximum permitted rotational speeds for each shank length and shank diameter are defined in DIN 69170 based on EN 12413 to avoid buckling of the shank, and at least 10mm of the shank must be clamped. Wear eye protection, hearing protection, a dust mask and gloves.
Other Pferd STEEL mounted points: Pferd STEEL Cylindrical Mounted Point, 13 x 25mm, Grit 46, Pferd STEEL Pointed Tree (SP) Mounted Points, Grit 30.
Dressing stone: Pferd SE 702212 CU Dressing Stone, 70 x 12 x 22mm.
