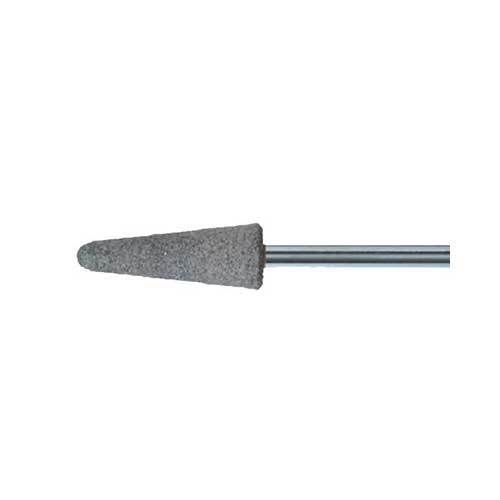

Pferd 35511503 Mounted Point CAST EDGE A 11 22 x 50 mm, Grit 30, 6 mm Shank

These Pferd CAST EDGE mounted points are bonded abrasive grinding points on a 6 mm shank (shape: series A shapes A 3 and A 11). This page lists 2 items in grit 30 (manufacturer-stated).

The catalogue describes the CAST EDGE type as particularly good for edge grinding, for deburring and for grinding out sand inclusions and metal contamination on grey and nodular cast iron (manufacturer-stated).

It describes the series A shapes as suited to a wide range of different contours (manufacturer-stated).

The catalogue lists a vitrified bond and a recommended cutting speed of 30 to 50 m/s for this type. Optimum and maximum speeds depend on the head size and shank, so each item in the table lists its own (manufacturer-stated).

Where this product is used

• Edge grinding and deburring on grey and nodular cast iron (manufacturer-stated)
• Grinding out sand inclusions and metal contamination (manufacturer-stated)
• Rated highly suitable in the catalogue for: grey and white cast iron: edge grinding (manufacturer-stated)
• Rated suitable for: grey and white cast iron: surface grinding (manufacturer-stated)

Features

• CAST EDGE type with a vitrified bond (manufacturer-stated)
• Shapes: Series A (A 3) and Series A (A 11) (manufacturer-stated)
• Grit 30 in this listing
• 6 mm shank, 40 mm shank length (L2) (manufacturer-stated)
• Highly dimensionally stable due to the high bond content (manufacturer-stated)
• Economical to use due to high edge stability even on low-speed tool drives (manufacturer-stated)

Common specifications

Key specifications

Each item number is a separate combination of shape and head size. Optimum and maximum speeds depend on the head size and shank, so each item lists its own.

Selecting the right option

Match the shank to your collet (6 mm shank). A higher grit number is a finer abrasive. Check the head size and speeds against the table before ordering. The catalogue states that all PFERD TOOLS mounted points are approved for a maximum operating speed of 50 m/s, that the maximum permitted rotational speeds for each shank length and shank diameter are defined in DIN 69170 based on EN 12413 to avoid buckling of the shank, and that at least 10 mm of the shank must be clamped. Wear eye protection, hearing protection, a dust mask and gloves (manufacturer-stated).
