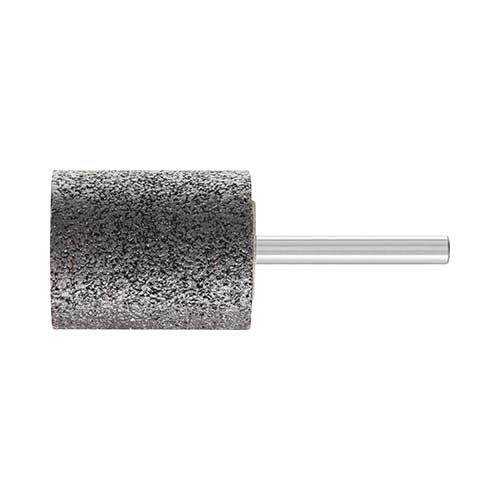

Pferd 31137742 Mounted Point INOX Cylindrical 32 x 40 mm, Grit 24, 6 mm Shank
Available
These Pferd INOX mounted points are bonded abrasive grinding points on a 6 mm shank (shape: cylindrical (ZY)). This page lists 13 items in grits 24, 30 and 60 (manufacturer-stated).
The catalogue describes the INOX type as used for rough grinding of stainless steel (INOX) castings and for grinding moulded parts made of high-temperature-resistant alloys (manufacturer-stated).
It describes the cylindrical shape ZY as suited to grinding bores, radii and contours (manufacturer-stated).
The catalogue lists a resinoid bond and a recommended cutting speed of 35 to 50 m/s for this type. Optimum and maximum speeds depend on the head size and shank, so each item in the table lists its own (manufacturer-stated).
Where this product is used
- Rough grinding of stainless steel (INOX) castings (manufacturer-stated)
- Grinding moulded parts made of high-temperature-resistant alloys (manufacturer-stated)
- Rated highly suitable in the catalogue for: stainless steel (INOX), austenitic and ferritic: surface grinding; hard non-ferrous metals (bronze, titanium, titanium alloys, hard aluminium alloys): universal grinding (manufacturer-stated)
- Rated suitable for: steels up to 1,200 N/mm²: surface grinding; cast steel: surface grinding; stainless steel: edge grinding; soft non-ferrous metals (aluminium alloys, brass, copper, zinc); nickel-based and cobalt-based alloys; grey and white cast iron: surface and edge grinding (manufacturer-stated)
Features
- INOX type with a resinoid bond (manufacturer-stated)
- Shapes: Cylindrical (ZY) (manufacturer-stated)
- Grits 24, 30 and 60 in this listing
- 6 mm shank, 40 mm shank length (L2) (manufacturer-stated)
- Cool grinding, particularly suitable for temperature-sensitive materials (manufacturer-stated)
- High level of grinding comfort due to low-vibration grinding (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Type | INOX (manufacturer-stated) |
| Bond | Resinoid (manufacturer-stated) |
| Abrasive code | ADW (manufacturer-stated) |
| Abrasive | Aluminium oxide |
| Shape | Cylindrical (ZY) (manufacturer-stated) |
| Shank length (L2) | 40 mm (manufacturer-stated) |
| Shank diameter (Sd) | 6 mm (manufacturer-stated) |
| Grit sizes | 24, 30 and 60 |
Key specifications
| Model | Designation | Head size (D x T) | Grit size | USA type | Optimum speed | Maximum speed |
|---|---|---|---|---|---|---|
| 31326742 | ZY 3216 6 ADW 24 L6B INOX | 32 x 16 mm | 24 | - | 29,000 rpm (manufacturer-stated) | 29,800 rpm (manufacturer-stated) |
| 31137742 | ZY 3240 6 ADW 24 L6B INOX | 32 x 40 mm | 24 | W 231 (manufacturer-stated) | 20,300 rpm (manufacturer-stated) | 20,300 rpm (manufacturer-stated) |
| 31330742 | ZY 4020 6 ADW 24 L6B INOX | 40 x 20 mm | 24 | - | 23,000 rpm (manufacturer-stated) | 23,800 rpm (manufacturer-stated) |
| 31332742 | ZY 5025 6 ADW 24 L6B INOX | 50 x 25 mm | 24 | W 242 (manufacturer-stated) | 19,000 rpm (manufacturer-stated) | 19,000 rpm (manufacturer-stated) |
| 31127743 | ZY 1632 6 ADW 30 L6B INOX | 16 x 32 mm | 30 | - | 51,200 rpm (manufacturer-stated) | 51,200 rpm (manufacturer-stated) |
| 31131743 | ZY 2025 6 ADW 30 L6B INOX | 20 x 25 mm | 30 | W 205 (manufacturer-stated) | 45,000 rpm (manufacturer-stated) | 47,700 rpm (manufacturer-stated) |
| 31133743 | ZY 2040 6 ADW 30 L6B INOX | 20 x 40 mm | 30 | W 207 (manufacturer-stated) | 32,400 rpm (manufacturer-stated) | 32,400 rpm (manufacturer-stated) |
| 31323743 | ZY 2513 6 ADW 30 L6B INOX | 25 x 13 mm | 30 | W 218 (manufacturer-stated) | 37,000 rpm (manufacturer-stated) | 38,100 rpm (manufacturer-stated) |
| 31134743 | ZY 2525 6 ADW 30 L6B INOX | 25 x 25 mm | 30 | W 220 (manufacturer-stated) | 37,000 rpm (manufacturer-stated) | 38,100 rpm (manufacturer-stated) |
| 31135743 | ZY 2532 6 ADW 30 L6B INOX | 25 x 32 mm | 30 | - | 32,900 rpm (manufacturer-stated) | 32,900 rpm (manufacturer-stated) |
| 31328743 | ZY 4010 6 ADW 30 L6B INOX | 40 x 10 mm | 30 | W 236 (manufacturer-stated) | 23,000 rpm (manufacturer-stated) | 23,800 rpm (manufacturer-stated) |
| 31331743 | ZY 5013 6 ADW 30 L6B INOX | 50 x 13 mm | 30 | - | 19,000 rpm (manufacturer-stated) | 19,000 rpm (manufacturer-stated) |
| 31131746 | ZY 2025 6 ADW 60 L6B INOX | 20 x 25 mm | 60 | W 205 (manufacturer-stated) | 45,000 rpm (manufacturer-stated) | 47,700 rpm (manufacturer-stated) |
Each item number is a separate combination of head size and grit. Optimum and maximum speeds depend on the head size and shank, so each item lists its own.
Selecting the right option
Match the shank to your collet (6 mm shank). A higher grit number is a finer abrasive. Check the head size and speeds against the table before ordering. The catalogue states that all PFERD TOOLS mounted points are approved for a maximum operating speed of 50 m/s, that the maximum permitted rotational speeds for each shank length and shank diameter are defined in DIN 69170 based on EN 12413 to avoid buckling of the shank, and that at least 10 mm of the shank must be clamped. Wear eye protection, hearing protection, a dust mask and gloves (manufacturer-stated).
Related products
Other Pferd INOX mounted points: Pferd Cylindrical Radius End Mounted Point 25 x 32 mm and Pferd INOX Tapered (KE) Mounted Points, Grit 30, 6 mm Shank. Dressing stone: Pferd SE 702212 CU Dressing Stone, 70 x 12 x 22 mm.
