Pferd Mounted Point RUBBER Cylindrical 25 x 32 mm, Grit 1, 6 mm Shank - Pack of 10 (31135901)
The price shown is for the pack.
Available

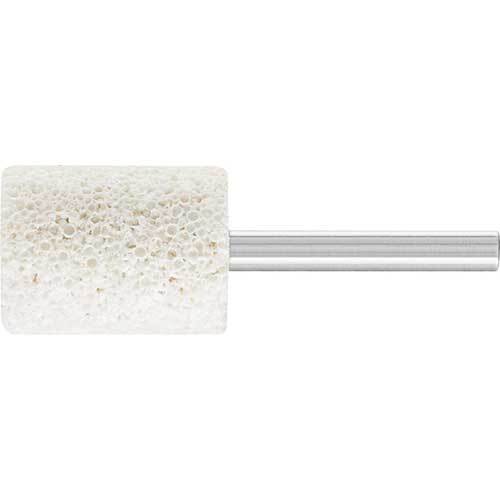

Item 31135901 is a RUBBER cylindrical mounted point with a 25 x 32mm head in grit 1 on a 6mm shank. It is supplied as a pack of 10.
The RUBBER type is suited to removing burrs, trimming, weld dressing and roughening of soft plastics and rubber. The cylindrical shape ZY is suited to grinding radii and contours and to deburring work. It has a vitrified bond for this type, a recommended cutting speed of 5 to 20 m/s, and for this item an optimum speed of 8,000rpm and a maximum speed of 32,900rpm.
Where this product is used
- Removing burrs and trimming soft plastics and rubber
- Weld dressing and roughening of soft plastics
- Highly suited to fibre-reinforced plastics, thermoplastics, rubber and wood
Features
- RUBBER type, cylindrical
- Head size 25 x 32mm, grit 1
- 6mm shank, 40mm shank length (L2)
- Optimum speed 8,000rpm, maximum speed 32,900rpm
- Open structure and large chip channels due to bubble grain aluminium oxide
- Machining of temperature-sensitive materials without added coolant thanks to the large chip channels
Key specifications
| Specification | Detail |
|---|---|
| Brand | Pferd |
| Designation | ZY 2532 6 AH 1 D12V RUBBER |
| Type | RUBBER |
| Shape | Cylindrical (ZY) |
| Head size (D x T) | 25 x 32mm |
| Grit size | 1 |
| Shank diameter (Sd) | 6mm |
| Shank length (L2) | 40mm |
| Bond | Vitrified |
| Abrasive code | AH |
| Optimum speed | 8,000rpm |
| Maximum speed | 32,900rpm |
| Pack quantity | 10 |
Choosing the right option
Check that the 6mm shank suits your collet. A higher grit number is a finer abrasive. Keep to the maximum speed printed for the item. All Pferd mounted points are approved for a maximum operating speed of 50 m/s, the maximum permitted rotational speeds for each shank length and shank diameter are defined in DIN 69170 based on EN 12413 to avoid buckling of the shank, and at least 10mm of the shank must be clamped. Wear eye protection, hearing protection, a dust mask and gloves.
Other Pferd RUBBER mounted points: Pferd Cylindrical Radius End Mounted Point 25 x 32mm, Pferd Cylindrical Mounted Point 40 x 20mm, Grit 24.
Dressing stone: Pferd SE 702212 CU Dressing Stone, 70 x 12 x 22mm.
