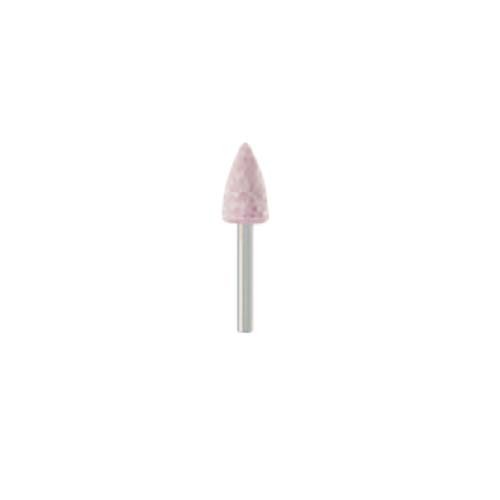

Pferd STEEL EDGE mounted points, A 12

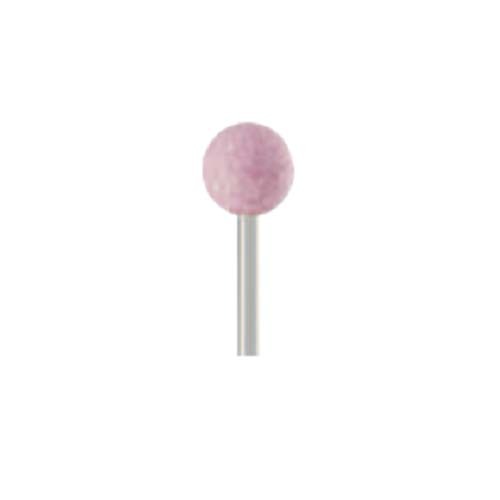

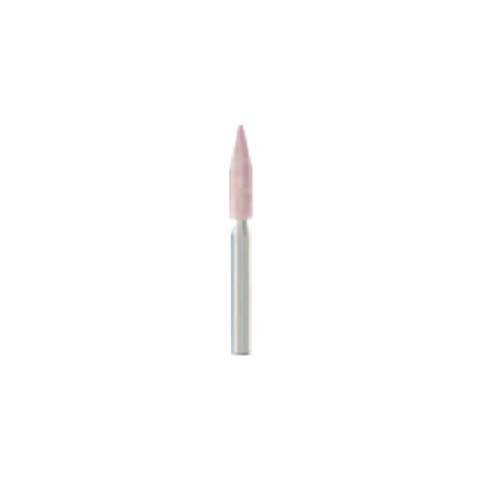

These Pferd STEEL EDGE mounted points are bonded abrasive grinding points on a 6mm shank (shape: series A shapes A 12, A 15 and A 25). The range has 3 options in grits 30 and 60.

The STEEL EDGE type is particularly suitable for edge grinding and deburring, for grinding chamfers for weld seam preparation and for weld dressing on contours. The series A shapes are suited to a wide range of different contours. It has a vitrified bond and a recommended cutting speed of 25 to 40 m/s for this type.

Where this product is used

• Edge grinding and deburring, and grinding chamfers for weld seam preparation
• Weld dressing on contours
• Highly suited to steels up to 1,200 N/mm² (below 38 HRC): edge grinding
• Highly suited to cast steel: edge grinding
• Suited to steels up to 1,200 N/mm²: surface grinding, hardened, heat-treated steels over 1,200 N/mm²: edge grinding, cast steel: surface grinding, stainless steel (INOX): edge grinding, grey and white cast iron: surface and edge grinding

Features

• STEEL EDGE type with a vitrified bond
• Shapes: Series A (A 12), Series A (A 15) and Series A (A 25)
• 6mm shank, 40mm shank length (L2)
• Long tool life and low tool wear due to a hard, dimensionally stable bond
• Economical to use due to high edge stability even on low-speed tool drives

Key specifications

Choosing the right option

Match the shank to your collet (6mm shank). A higher grit number is a finer abrasive. All Pferd mounted points are approved for a maximum operating speed of 50 m/s, the maximum permitted rotational speeds for each shank length and shank diameter are defined in DIN 69170 based on EN 12413 to avoid buckling of the shank, and at least 10mm of the shank must be clamped. Wear eye protection, hearing protection, a dust mask and gloves.

Other Pferd STEEL EDGE mounted points: Pferd Cylindrical Mounted Point 25 x 25mm, Grit 30, Pferd STEEL EDGE W Shape Mounted Points.

Dressing stone: Pferd SE 702212 CU Dressing Stone, 70 x 12 x 22mm.
