Pferd 33920231 Mounted Point Set 2002 STEEL EDGE, 15 Pieces, 3 mm Shank, Fine

This page lists two Pferd STEEL EDGE mounted point sets, grade O: set 2001 (10 pieces, 6 mm shank, coarse) and set 2002 (15 pieces, 3 mm shank, fine).

The catalogue describes both sets as particularly suitable for edge grinding and for deburring work, as well as for grinding chamfers for weld seam preparation and weld dressing on contours (manufacturer-stated).

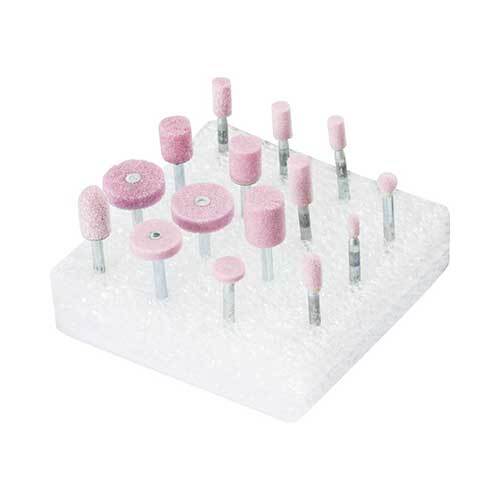

Set 2002 contains 15 small mounted points in the most common shapes and dimensions for finishing work: two each of 5 x 10 mm, 8 x 10 mm and 16 x 4 mm cylindrical points, and one each of 4 x 8 mm, 6 x 13 mm, 8 x 2 mm, 10 x 13 mm and 13 x 3 mm cylindrical points, a 5 x 10 mm cylindrical point with radius end, a ball point of 5 mm diameter and pointed tree points of 3 x 6 mm and 8 x 16 mm (manufacturer-stated).

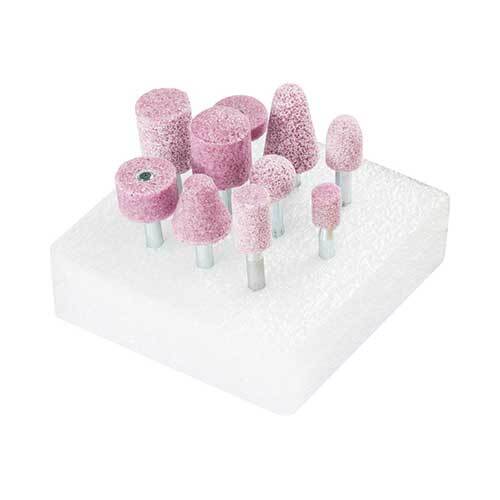

Set 2001 contains 10 mounted points, one each: cylindrical 10 x 13 mm, 13 x 20 mm, 20 x 6 mm, 20 x 13 mm and 20 x 25 mm, a ball point of 16 mm diameter, a cylindrical point with radius end 20 x 25 mm, conical 20 x 20 mm and 20 x 32 mm, and a pointed tree point 13 x 20 mm (manufacturer-stated).

Where this product is used

• Edge grinding and deburring, and grinding chamfers for weld seam preparation (manufacturer-stated)
• Weld dressing on contours (manufacturer-stated)
• Rated highly suitable in the catalogue for: steels up to 1,200 N/mm² (below 38 HRC): edge grinding; cast steel: edge grinding (manufacturer-stated)

Features

• Two sets: 2001 (10 pieces) and 2002 (15 pieces)
• Set 2001 has a 6 mm shank and coarse grit; set 2002 has a 3 mm shank and fine grit (manufacturer-stated)
• Long tool life and low tool wear due to a hard, dimensionally stable bond (manufacturer-stated)
• Economical to use due to high edge stability even on low-speed tool drives (manufacturer-stated)

Common specifications

Key specifications

Each item number is a separate set.

Selecting the right option

Choose the set by shank diameter: set 2002 has a 3 mm shank and set 2001 has a 6 mm shank. The set pages do not print speeds, so use the ratings that apply to the individual shapes. The catalogue states that all PFERD TOOLS mounted points are approved for a maximum operating speed of 50 m/s, that the maximum permitted rotational speeds for each shank length and shank diameter are defined in DIN 69170 based on EN 12413 to avoid buckling of the shank, and that at least 10 mm of the shank must be clamped. Wear eye protection, hearing protection, a dust mask and gloves (manufacturer-stated).
