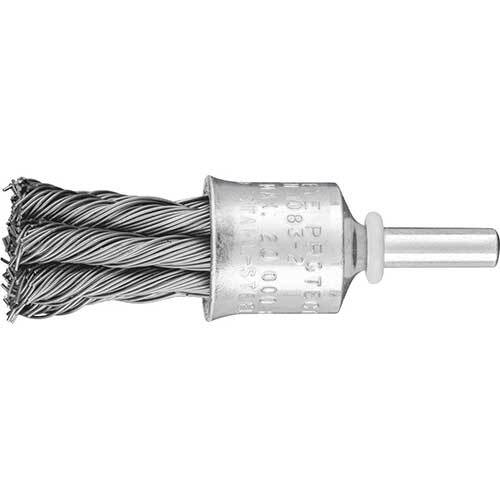

Pferd PBG Brush, 19 x 19mm

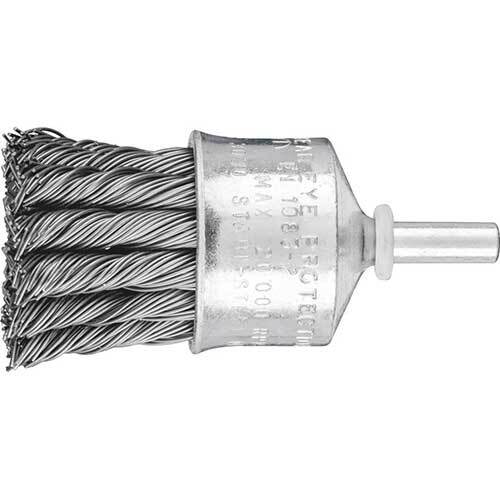

The Pferd PBG is a knotted pencil (end) brush. It has a 6mm shank and steel wire filament. The range has 2 options: 19 x 19mm and 30 x 28mm (brush diameter and cup diameter). This page covers the Pferd Twist Knot Pencil Brush PBG (POS), Steel Wire 0.35mm, 6mm Shank, 19 x 19 and 30 x 28mm, available in 2 brush diameter x cup diameter options: 19 x 19mm, 30 x 30mm.

The PBG is suited to medium-duty brushing such as deburring, cleaning, derusting and descaling, and removing spatter. Filament diameter is 0.35mm. Optimum and maximum speeds depend on the size: maximum speeds run from 20,000 to 20,000rpm, so check the figures for the item you choose. Steel wire: high tensile and bending fatigue strength, temperature resistance up to 300°C. Key features: reaches recesses and drilled holes, very stiff wire knots give an aggressive brushing effect.

Where this product is used

• Suited to medium-duty brushing such as deburring, cleaning, derusting and descaling, and removing spatter
• Steel wire is highly suitable for steel and cast iron, and suitable for plastics
• Access to recesses and drilled holes

Features

• Brush diameter and cup diameter: 19 x 19mm and 30 x 28mm
• 6mm shank
• Steel wire (ST), filament diameter 0.35mm
• Reaches recesses and drilled holes
• Very stiff wire knots give an aggressive brushing effect

Key specifications

Choosing the right option

Match the 6mm shank to your chuck or collet. The recommended cutting speed is 5 to 15 m/s for end brushes, depending on the application and below the maximum permitted speed. Steel wire is rated not suitable for stainless steel, aluminium or non-ferrous metals. Never exceed the maximum permitted speed marked on the brush, its label and .

The same POS item in stainless steel wire, and the wider PBG range: Pferd Twist Knot Pencil Brush PBG (POS), Stainless Steel Wire 0.35mm, 6mm Shank, 19 x 19 and 30 x 28mm, Pferd Twist Knot Pencil Brush PBG, Steel Wire 0.50mm, 6mm Shank, 19 x 19 and 30 x 28mm.
