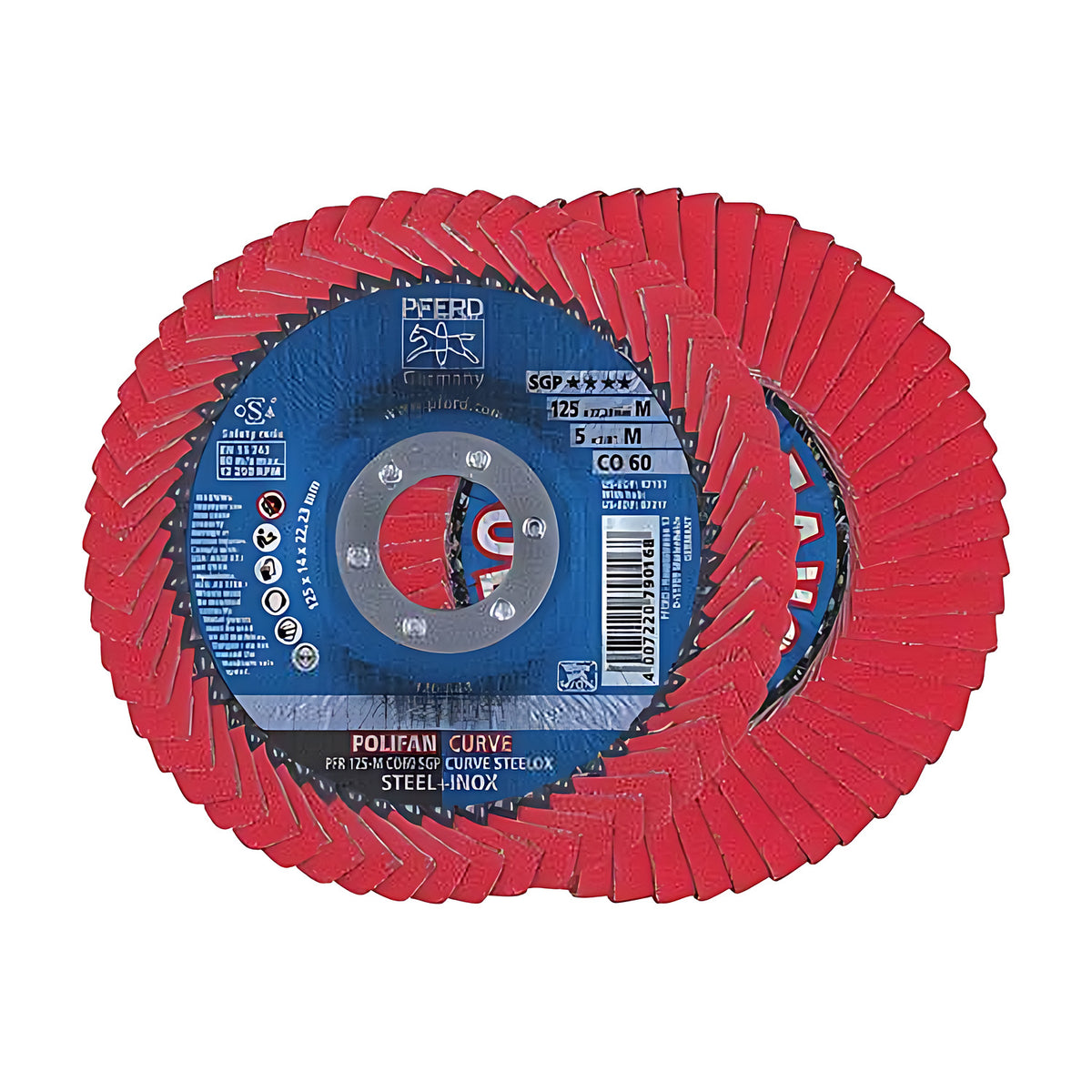

Pferd 67689056 POLIFAN Curve Flap Disc 125 mm, Type M, CO SGP CURVE STEELOX, Grit 60
Available
The Pferd POLIFAN CO SGP CURVE STEELOX is a curve flap disc with ceramic oxide grain flaps, listed by PFERD in its Special Line SGP range (manufacturer-stated). This page lists 4 items in 115 and 125 mm diameters, grit 60.

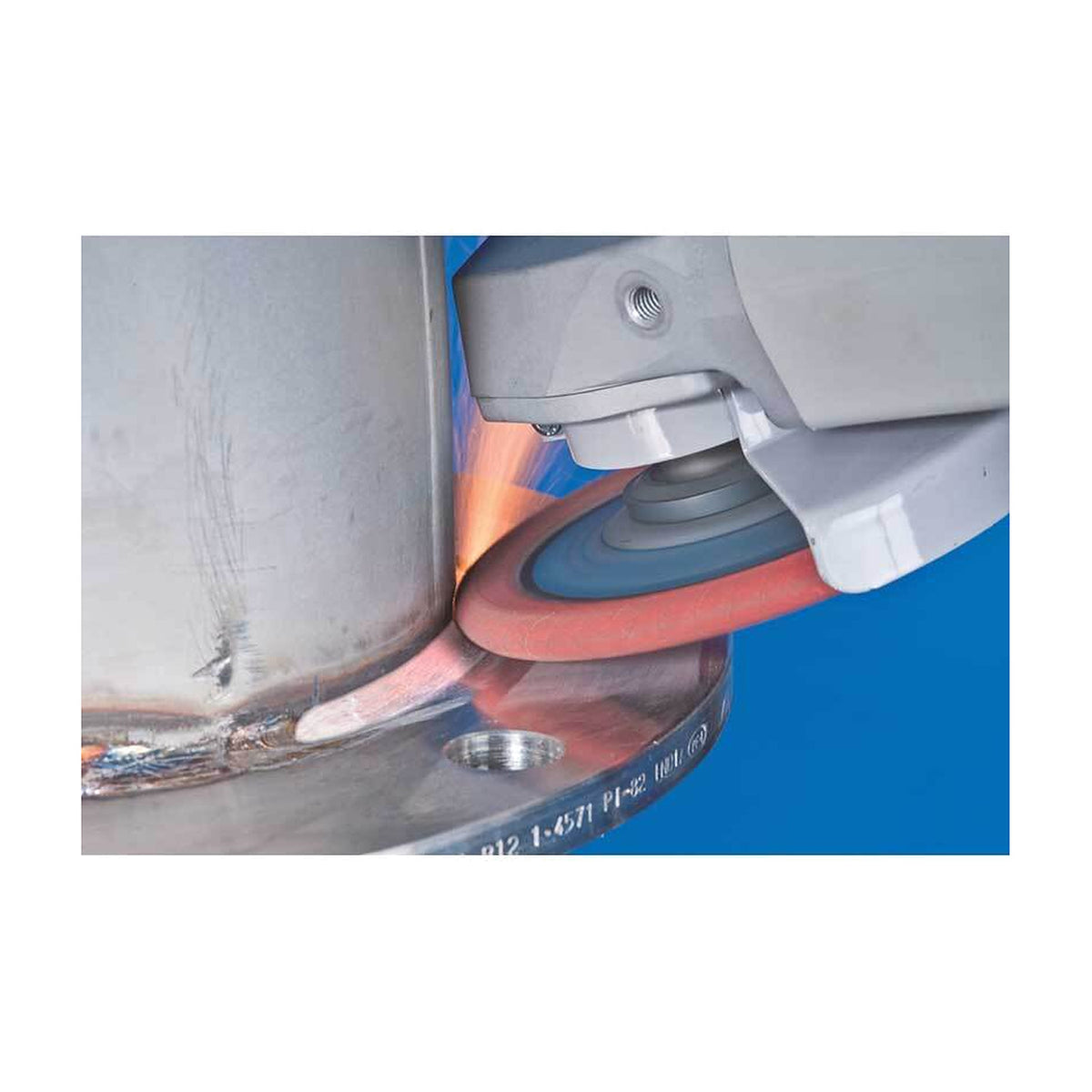

The catalogue describes the CO SGP CURVE STEELOX as a high-performance flap disc for fine finishes on steel and stainless steel (INOX), developed for work on fillet welds and also suitable for work on weld seams, chamfering and deburring (manufacturer-stated).

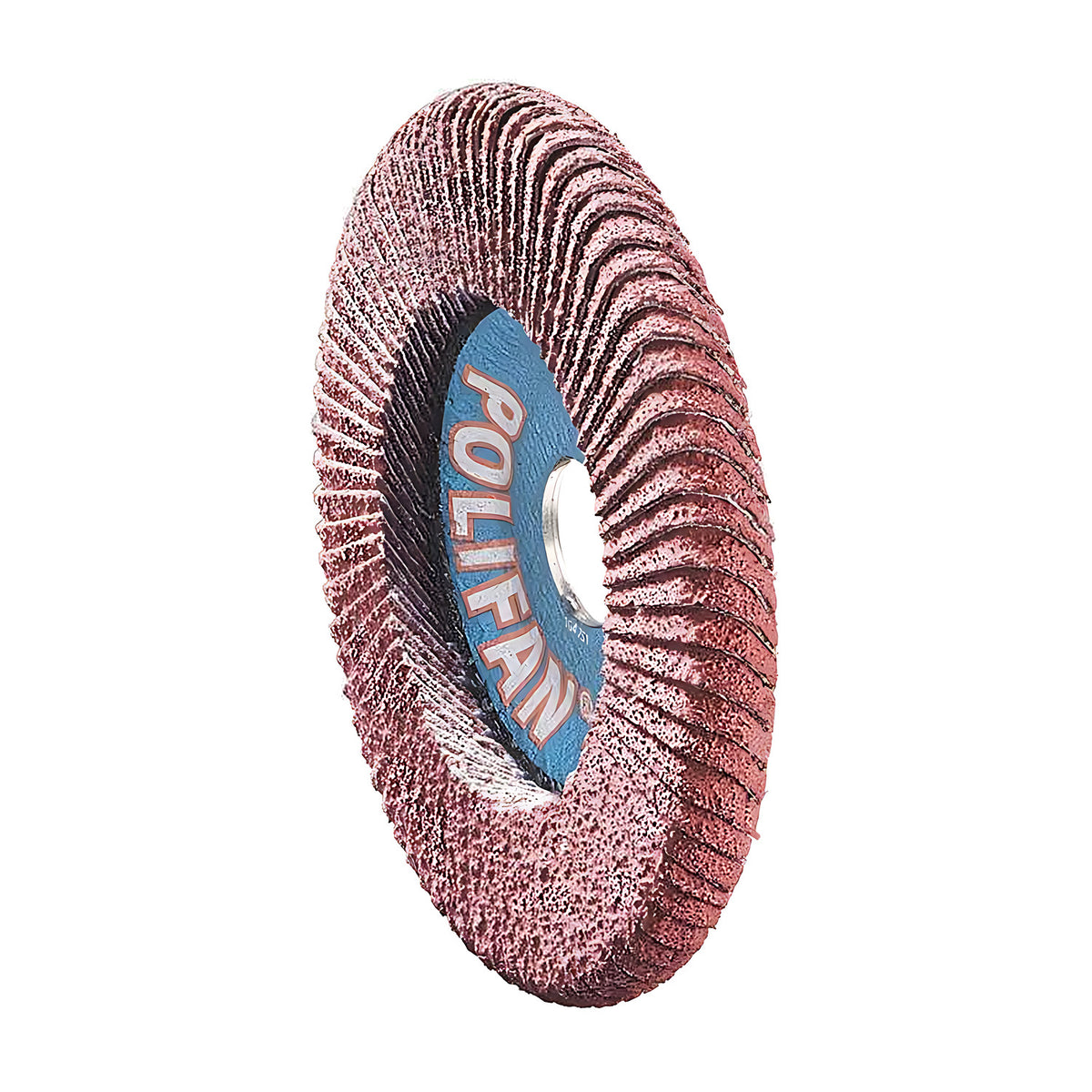

The radial CURVE design is described as the specialist for work on fillet welds, and once the circumference has worn down it can continue to be used as a conventional flap disc (manufacturer-stated).
Specially developed for work on fillet welds (manufacturer-stated).
Where this product is used
- Work on fillet welds (manufacturer-stated)
- Work on weld seams (manufacturer-stated)
- Chamfering and deburring (manufacturer-stated)
Features
- Curve flap disc, 115 and 125 mm
- Ceramic oxide grain flaps, grit 60 (manufacturer-stated)
- Specially developed for work on fillet welds (manufacturer-stated)
- Ceramic oxide grain with active-grinding special coating: no heat discolouration, even under adverse thermal conditions (manufacturer-stated)
- Bore 22.23 mm; maximum speed 13,300 rpm at 115 mm and 12,200 rpm at 125 mm (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Shape | Radial design (PFR, CURVE) (manufacturer-stated) |
| Abrasive | Ceramic oxide grain (CO) (manufacturer-stated) |
| Series | Special Line SGP, CO SGP CURVE STEELOX (manufacturer-stated) |
| Disc diameters | 115 and 125 mm (manufacturer-stated) |
| Grit sizes | 60 |
| Bore (H) | 22.23 mm (manufacturer-stated) |
Key specifications
| Model | Designation | Disc diameter | Width | Fillet weld radius (>) | Maximum speed |
|---|---|---|---|---|---|

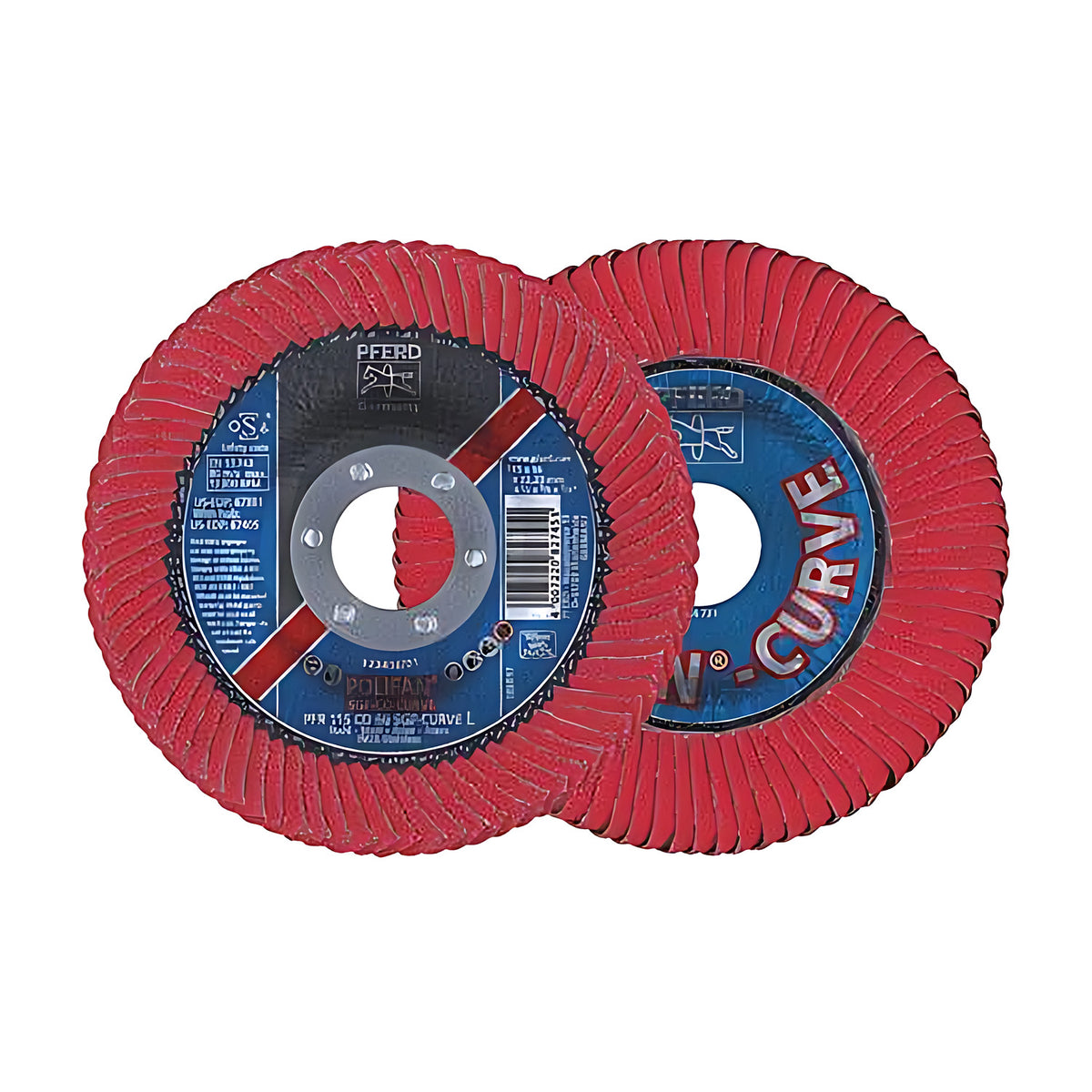

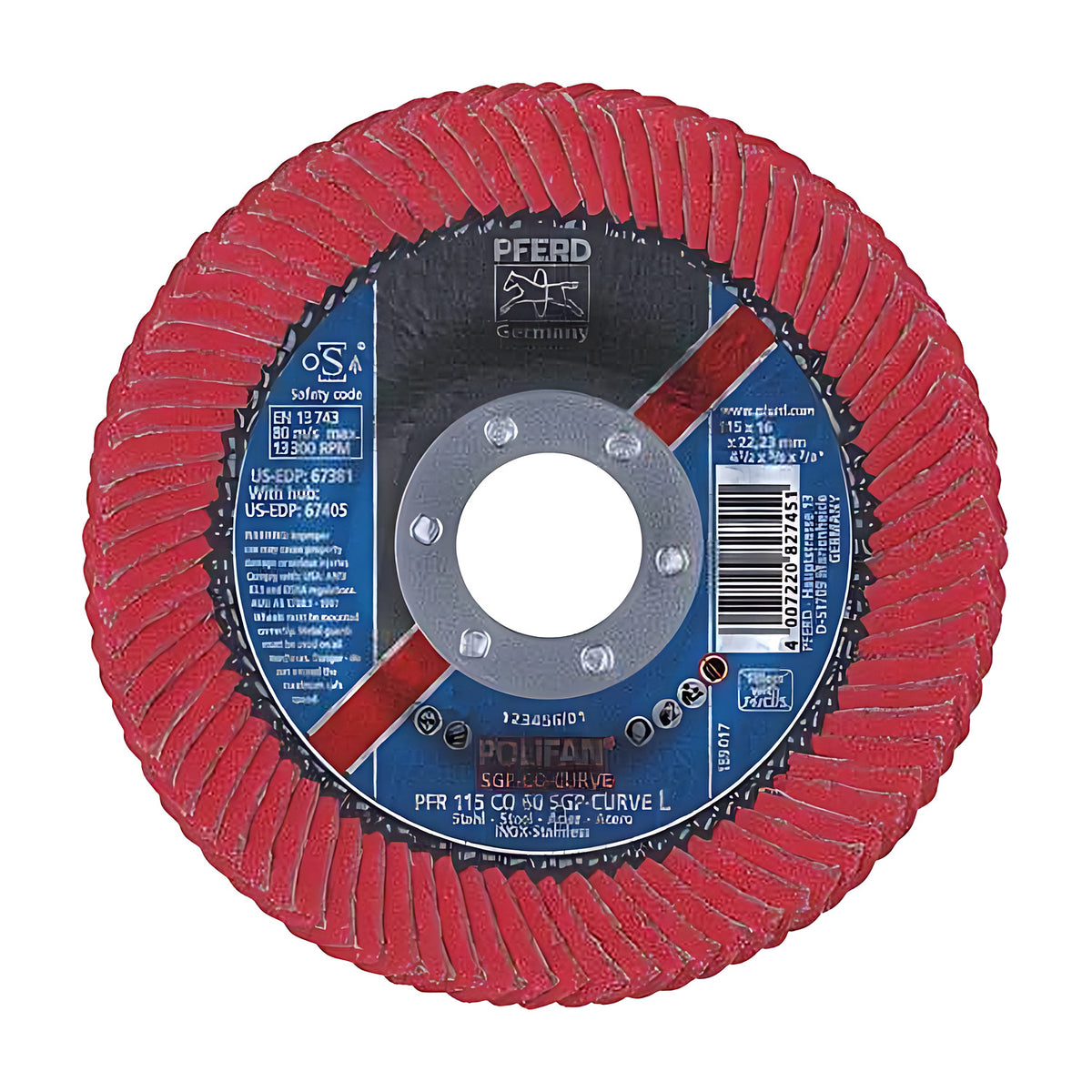

| 67689046 | PFR 115-L CO 60 SGP CURVE STEELOX | 115 mm | L (14 mm) (manufacturer-stated) | 8 mm (manufacturer-stated) | 13,300 rpm (manufacturer-stated) |

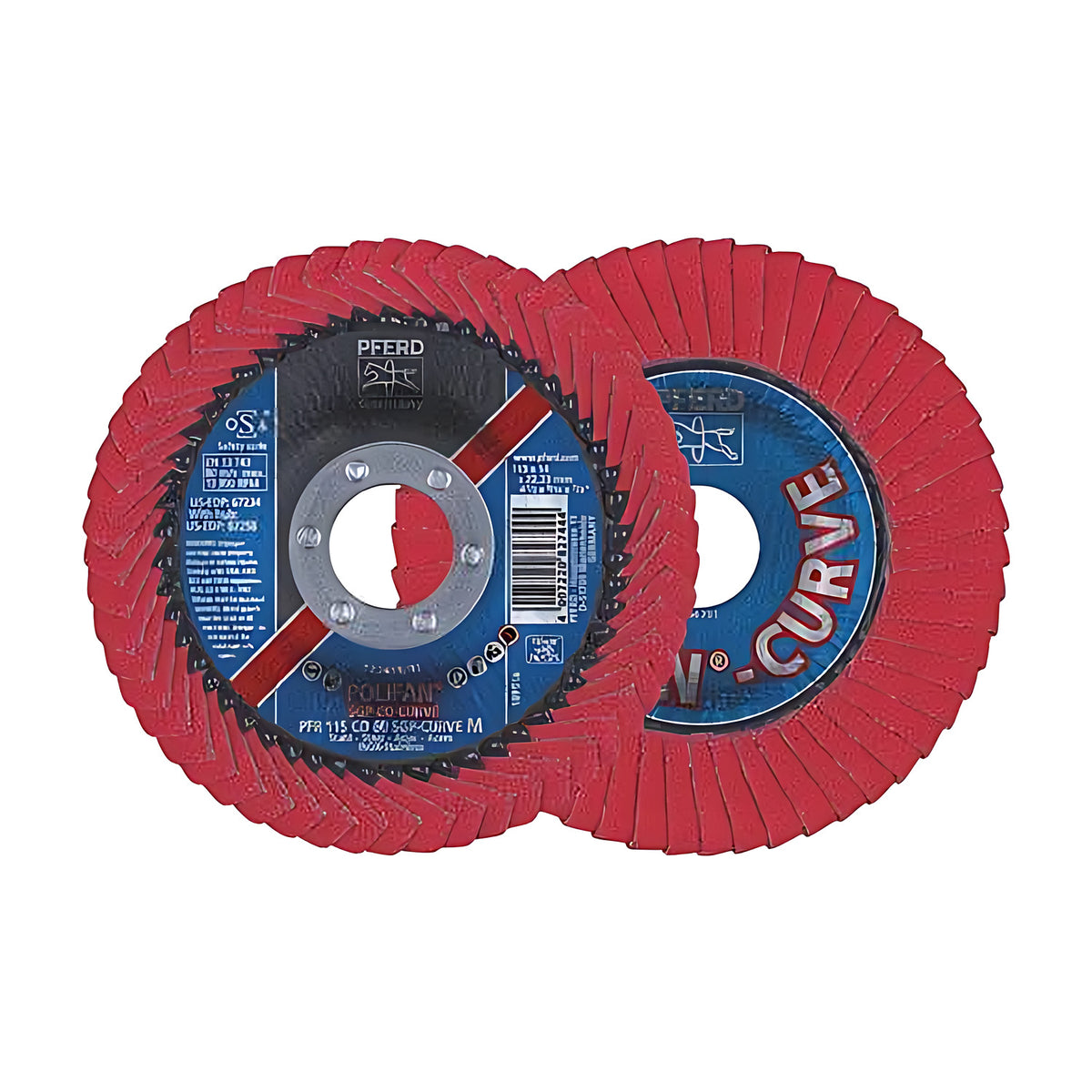

| 67689036 | PFR 115-M CO 60 SGP CURVE STEELOX | 115 mm | M (11 mm) (manufacturer-stated) | 5 mm (manufacturer-stated) | 13,300 rpm (manufacturer-stated) |

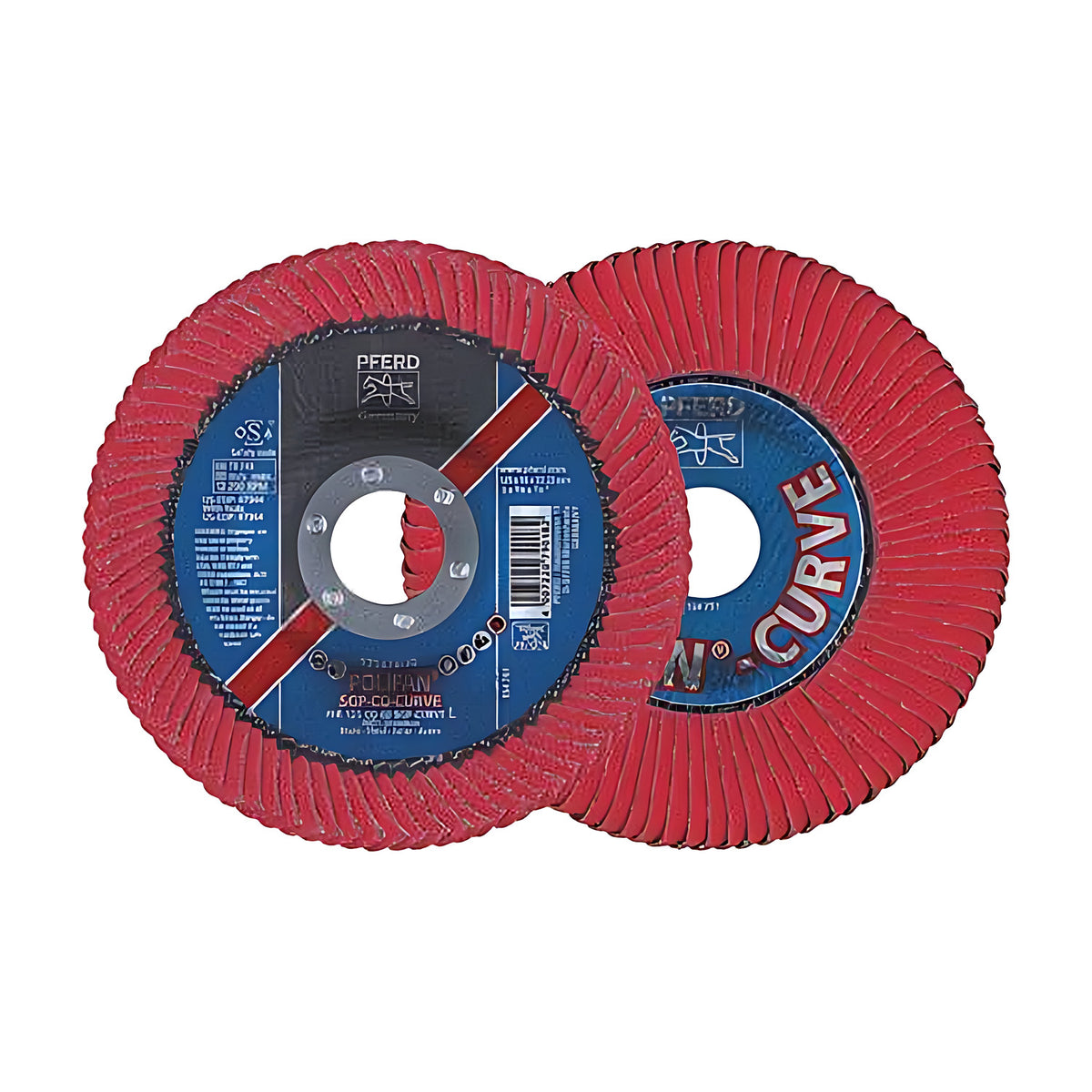

| 67689066 | PFR 125-L CO 60 SGP CURVE STEELOX | 125 mm | L (14 mm) (manufacturer-stated) | 8 mm (manufacturer-stated) | 12,200 rpm (manufacturer-stated) |
| 67689056 | PFR 125-M CO 60 SGP CURVE STEELOX | 125 mm | M (11 mm) (manufacturer-stated) | 5 mm (manufacturer-stated) | 12,200 rpm (manufacturer-stated) |
Each item number is one diameter and type combination. Maximum speed depends on the disc diameter, so each item lists its own.
Selecting the right option
A higher grit number is a finer abrasive. The catalogue notes that with POLIFAN flap discs a grit one grade coarser can be selected to reach the same surface as with fibre discs (manufacturer-stated). The catalogue pairs the shapes with jobs: flat (PFF) for surface grinding, conical (PFC) for weld seams, chamfering and deburring, and radial (PFR, CURVE) for fillet welds (manufacturer-stated). Check the maximum speed given for the item and keep the angle grinder at or below it (manufacturer-stated).
