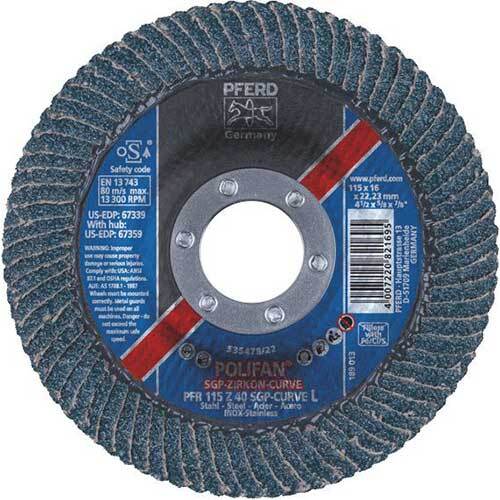

Pferd POLIFAN curve flap disc Z SGP CURVE STEELOX, 115mm / L
Available
The Pferd POLIFAN Z SGP CURVE STEELOX is a curve flap disc with zirconia alumina flaps, from its Special Line SGP range. The range has 5 options in 115 to 180mm diameters, grit 40.
The Z SGP CURVE STEELOX is a high-performance flap disc for maximum stock removal on steel and stainless steel (INOX), developed for work on fillet welds and also suitable for work on weld seams, chamfering and deburring. The radial CURVE design is described as the specialist for work on fillet welds, and once the circumference has worn down it can continue to be used as a conventional flap disc. It is specially developed for work on fillet welds.
Where this product is used

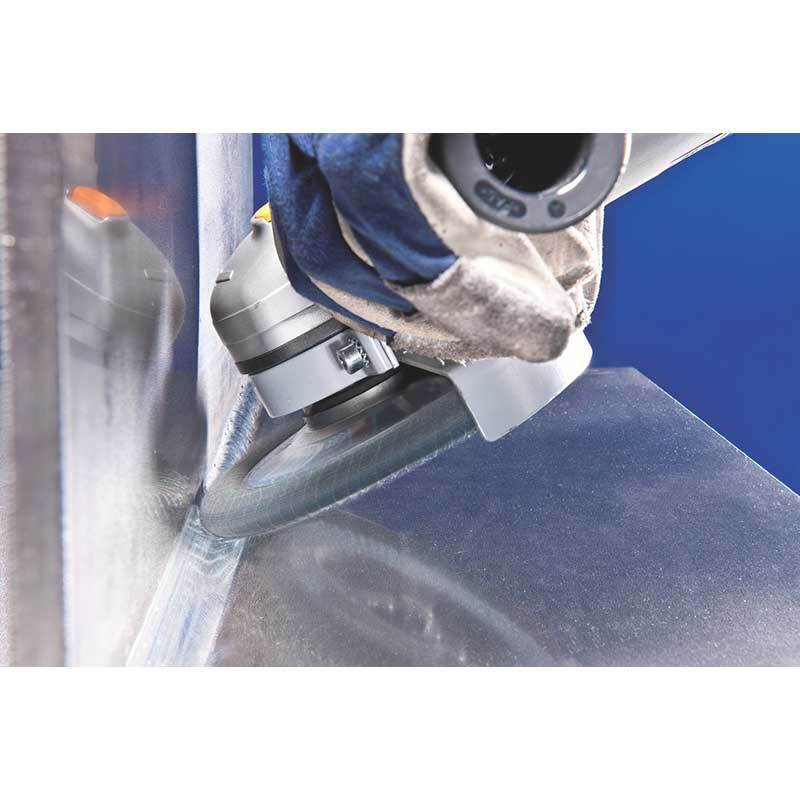

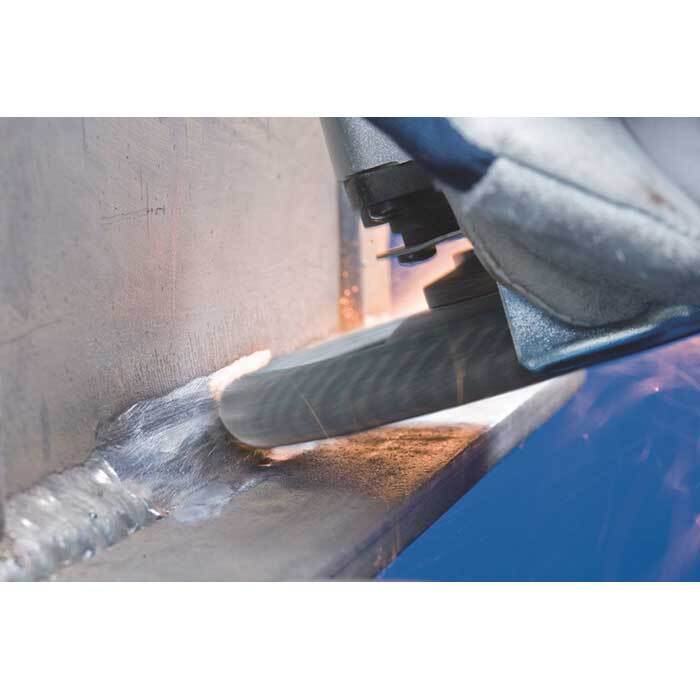

- Work on fillet welds
- Work on weld seams
- Chamfering and deburring
Features
- Curve flap disc, 115 to 180mm
- Zirconia alumina flaps, grit 40
- It is specially developed for work on fillet welds

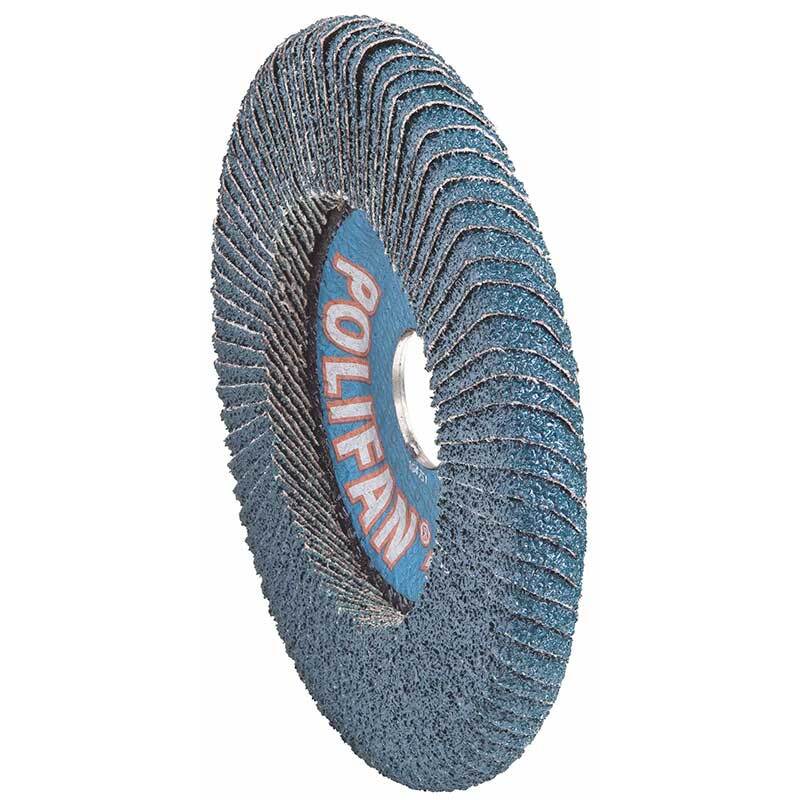

- Flaps on the grinding side, on the rear and on the radius
- Bore 22.23mm, maximum speed set by disc diameter, see table
Key specifications
| Specification | Detail |
|---|---|
| Brand | Pferd |
| Shape | Radial design (PFR, CURVE) |
| Abrasive | Zirconia alumina (Z) |
| Series | Special Line SGP, Z SGP CURVE STEELOX |
| Disc diameters | 115 to 180mm |
| Grit sizes | 40 |
| Bore (H) | 22.23mm |
Choosing the right option
A higher grit number is a finer abrasive. With POLIFAN flap discs a grit one grade coarser can be selected to reach the same surface as with fibre discs. Each shape suits a different job: flat (PFF) for surface grinding, conical (PFC) for weld seams, chamfering and deburring, and radial (PFR, CURVE) for fillet welds. Check the maximum speed given for the item and keep the angle grinder at or below it.
Other POLIFAN flap discs: Pferd POLIFAN Curve Flap Disc A SGP CURVE ALU, Pferd POLIFAN Curve Flap Disc CO SGP CURVE STEELOX, Pferd POLIFAN Conical Flap Disc A-COOL SG INOX+ALU.
| Option | Part number | SKU |
|---|---|---|

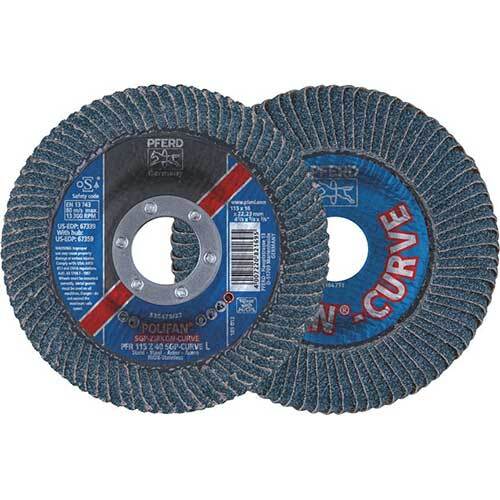

| 115mm / L | 67689042 | A0162097 |

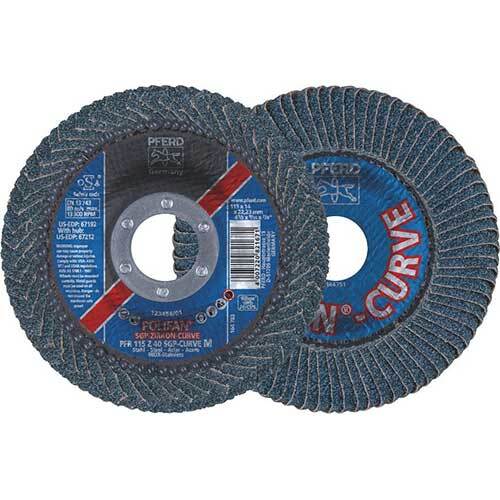

| 115mm / M | 67689032 | A0162098 |

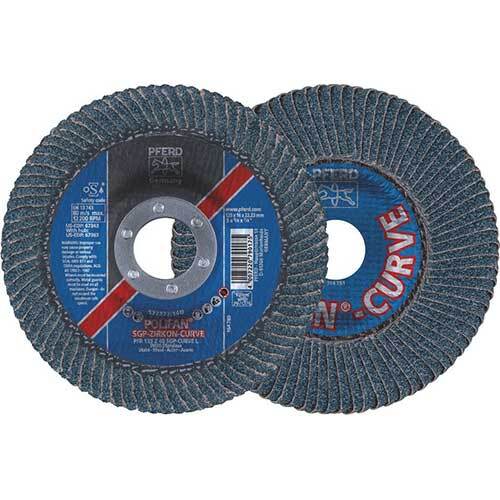

| 125mm / L | 67689062 | A0162099 |

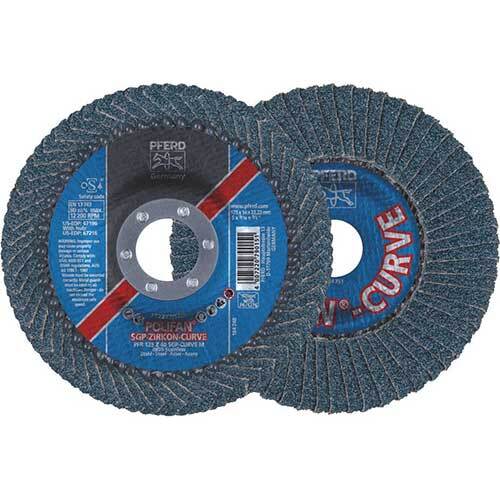

| 125mm / M | 67689052 | A0162100 |

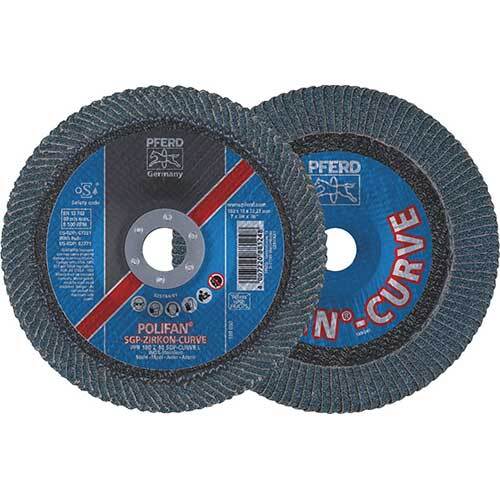

| 180mm / L | 67689095 | A0162101 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Pferd POLIFAN Curve Flap Disc Z SGP CURVE STEELOX, Types L and M, 115 to 180 mm, Grit 40: 115 mm / L
SKU: A0162097 | Model: 67689042
Pferd 67689042: 115mm curve flap disc, type L, Z SGP CURVE STEELOX, grit 40, max. 13,300rpm. Fillet weld radius (>): 8mm.
