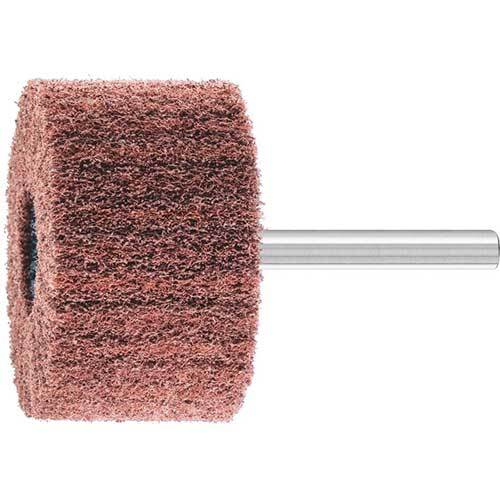

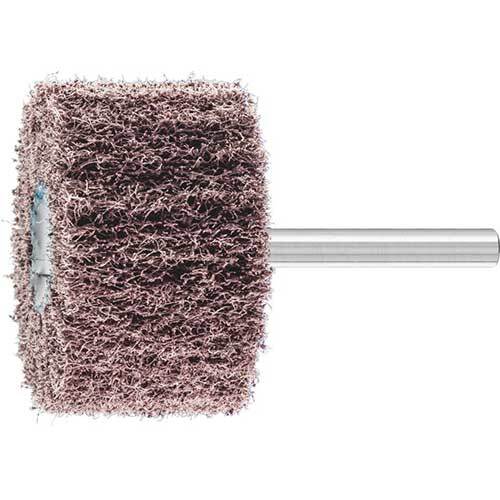

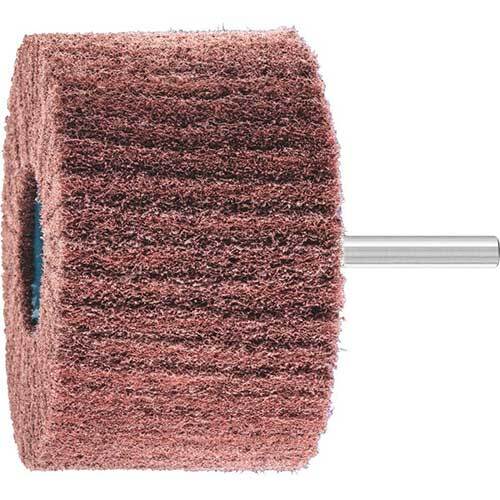

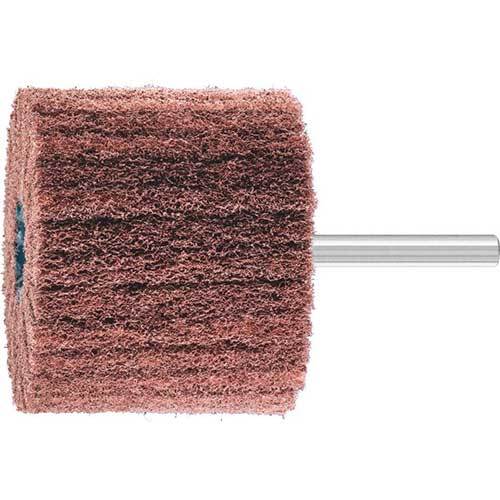

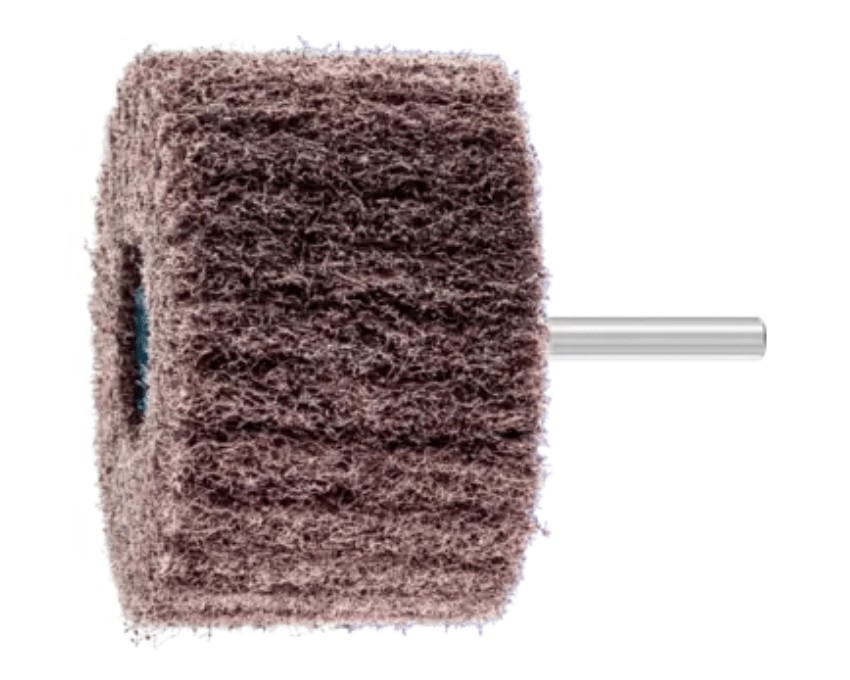

Pferd POLINOX PNL mounted non-woven wheel, 180 / 40 x 20mm
Available

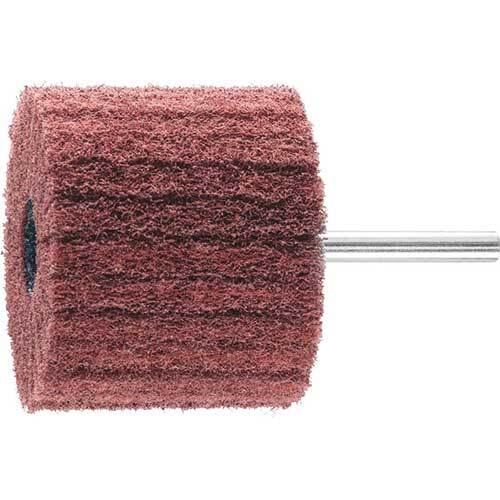

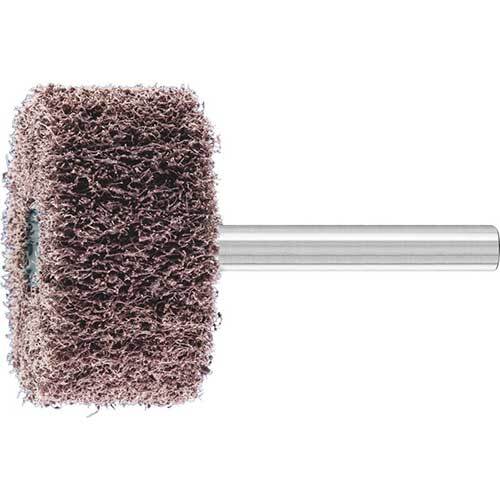

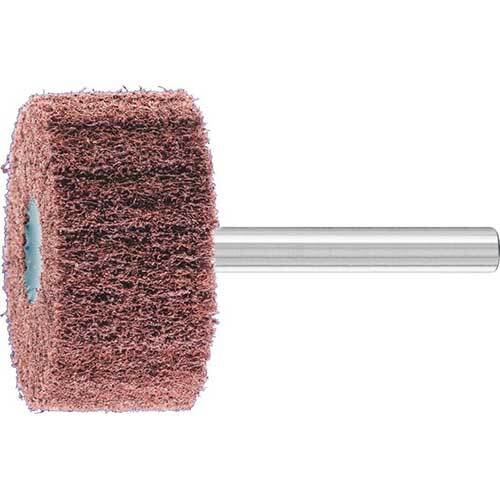

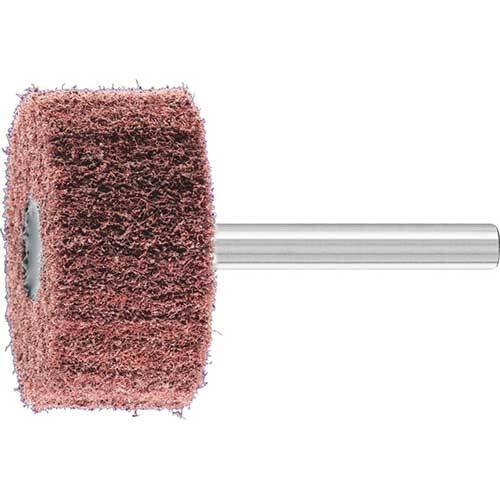

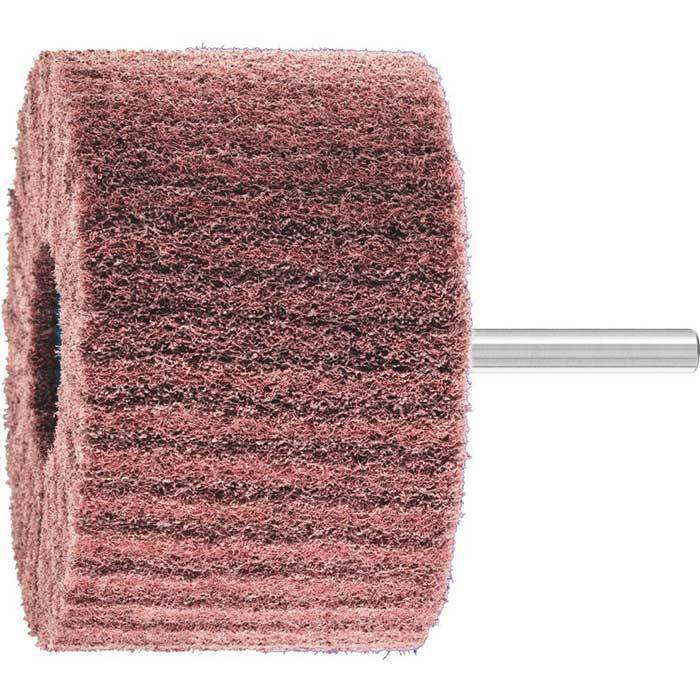

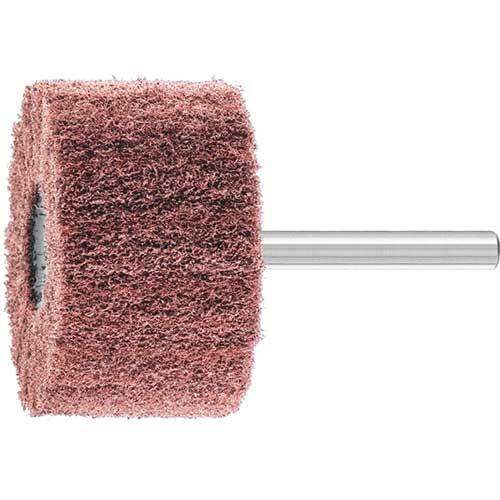

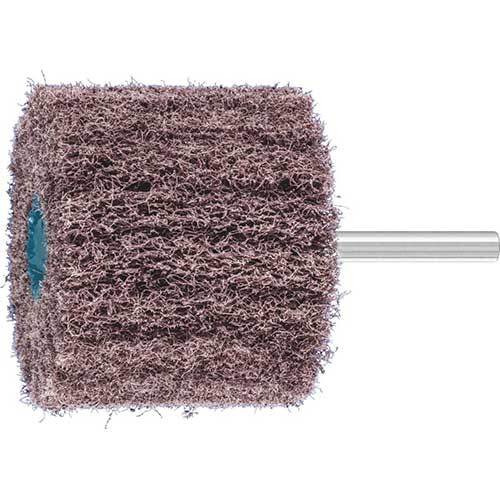

The Pferd POLINOX PNL is a mounted non-woven wheel with radial flaps and a 6mm shank, for surface work. The range has twelve options: four sizes (40 x 20, 50 x 30, 60 x 50 and 80 x 50mm), each in grits 100, 180 and 280, all with aluminium oxide (A) abrasive.
The non-woven abrasive material is arranged in multiple radial flaps and that the dense packing of the flaps gives a long tool life. The PNL is particularly used for surface work. Key features are high flexibility for adjusting to the contour, cool grinding with low thermal load on the workpiece, and an open structure that prevents tool clogging.
Where this product is used

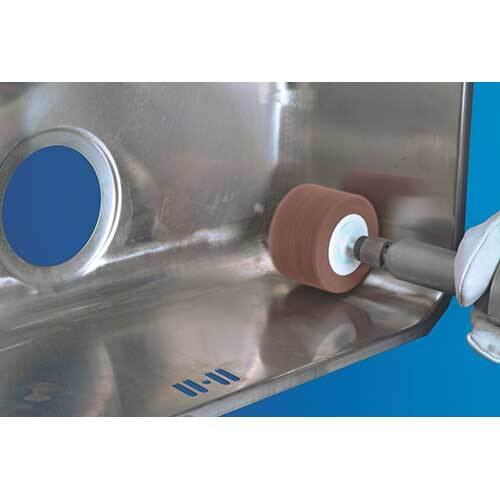

- Surface work on metal parts
- Cool grinding with low thermal load on the workpiece
- Adapting to contours thanks to the flexible flaps
Features
- Aluminium oxide (A) non-woven flaps in grits 100, 180 and 280
- Sizes 40 x 20, 50 x 30, 60 x 50 and 80 x 50mm on a 6mm shank, 40mm long
- Maximum speed from 15,000rpm (40mm) down to 7,500rpm (80mm)
- Open structure that prevents clogging
Key specifications
| Specification | Detail |
|---|---|
| Brand | Pferd |
| Abrasive | Aluminium oxide (A) |
| Shank diameter (Sd) | 6mm |
| Length (L) | 40mm |
| Grit sizes | 100, 180 and 280 |
Choosing the right option
Choose the size for the contour you are working and the grit for the finish you need; a higher grit number is a finer abrasive. Keep to the optimum speed where you can and never exceed the maximum speed for the item.
For the flap type with cloth interlayers see: Pferd POLINOX PNZ Mounted Wheel, Pferd POLINOX PNG Mounted Wheel.
| Option | Part number | SKU |
|---|---|---|
| 100 / 40 x 20mm | 44654100 | A0151827 |
| 100 / 50 x 30mm | 44655100 | A0151830 |
| 100 / 60 x 50mm | 44666100 | A0151835 |
| 100 / 80 x 50mm | 44658100 | A0151833 |
| 180 / 40 x 20mm | 44654180 | A0151828 |
| 180 / 50 x 30mm | 44655180 | A0151831 |
| 180 / 60 x 50mm | 44666180 | A0151836 |
| 180 / 80 x 50mm | 44658180 | A0151834 |
| 280 / 40 x 20mm | 44654280 | A0151829 |
| 280 / 50 x 30mm | 44655280 | A0151832 |
| 280 / 60 x 50mm | 44666280 | A0151837 |
| 280 / 80 x 50mm | 44658280 | A0088514 |
