Pferd BO 6/6 and BO 8/10 Arbors for POLINOX Wheels, 6 - 20
Available

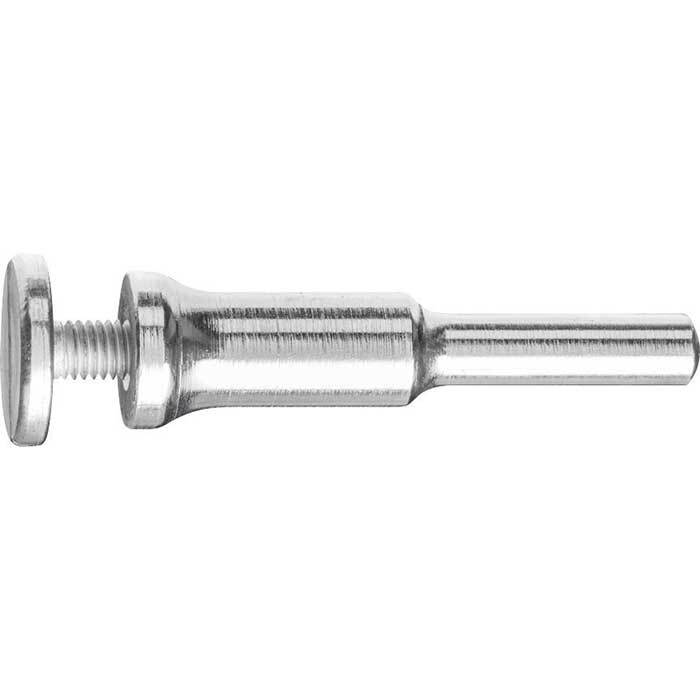

The Pferd BO arbors hold POLINOX wheels in a drive. It has two: BO 6/6 3-10 (6mm hole, 6mm shank, 25mm long) and BO 8/10 6-20 (10mm hole, 8mm shank, 30mm long).
The BO 6/6 3-10 is a matching arbor for POLINOX unitized wheels, and BO 8/10 6-20 as a matching arbor for POLINOX unmounted grinding wheels. High economic efficiency, because the tool can be changed quickly.
Where this product is used
- Mounting POLINOX unitized wheels (BO 6/6 3-10)
- Mounting POLINOX unmounted grinding wheels (BO 8/10 6-20)
- Quick tool changes
Features
- BO 6/6 3-10: 6mm shank, 25mm long, clamping range 3 - 10mm
- BO 8/10 6-20: 8mm shank, 30mm long, clamping range 6 - 20mm
- Two sizes, one item number each
- Hole diameters: 6mm and 10mm
Key specifications
| Specification | Detail |
|---|---|
| Brand | Pferd |
| Hole diameters | 6mm and 10mm |
| Shank diameters | 6mm and 8mm |
Choosing the right option
Pick the arbor by the wheel hole (6mm or 10mm) and the clamping range that covers your wheel width.
Other arbors for POLINOX tools: Pferd BO PNER 25 S6 Arbor for POLINOX Unitized Wheels, 6mm Shank (42700256), Pferd BO PNST Arbor for POLINOX Cross Buffs, 6mm Shank, 75mm and 125mm Long, Pferd PVR 6/13 1-25 Arbor for POLINOX Discs, 6mm Shank (23600506).
| Option | Part number | SKU |
|---|---|---|
| 3 - 10 | 42400006 | A0163893 |
| 6 - 20 | 42400008 | A0163894 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Pferd BO 6/6 and BO 8/10 Arbors for POLINOX Wheels, 6 mm and 8 mm Shank: 6 - 20
SKU: A0163894 | Model: 42400008
Pferd 42400008: BO 6/6 and BO 8/10 Arbors for POLINOX Wheels, 6 - 20. Designation: BO 8/10 6-20. Suitable hole diameter: 10mm.
