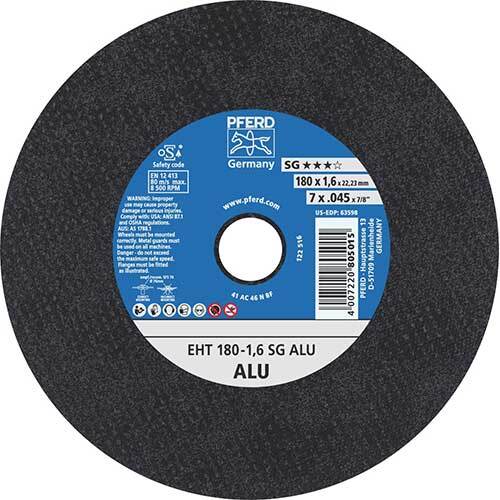

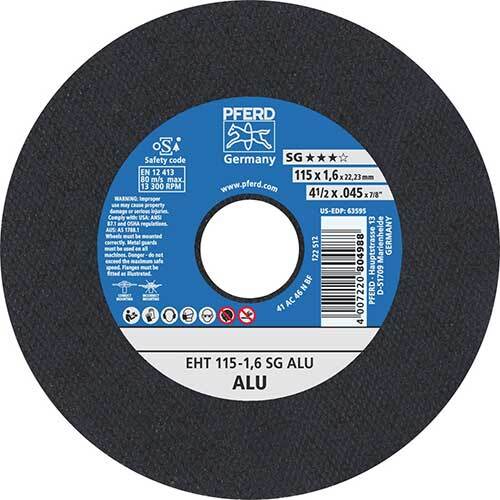

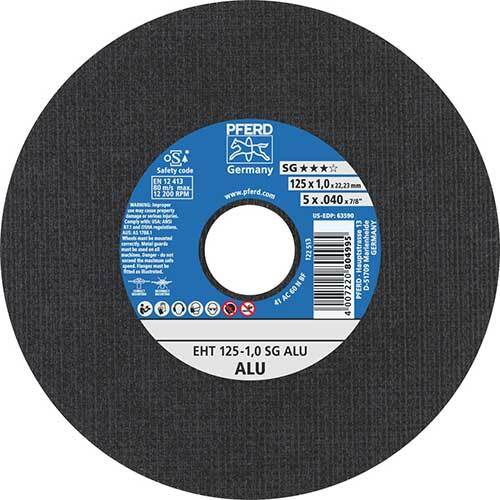

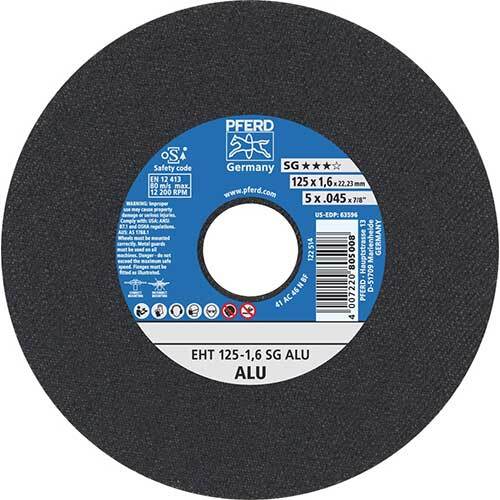

Pferd SG Alu flat cut-off wheel, 100mm / 1

It has 6 Pferd SG Alu flat cut-off wheels, 105 to 180mm in diameter and 1.0 and 1.6mm thick. The range is a Performance Line SG cut-off wheel for aluminium and other non-ferrous metals, with high cutting performance.

It has these wheels for cutting sheet metal, profiles and solid material in aluminium and other non-ferrous metals, and cutting out holes. Each item is a flat design EHT (shape 41) wheel in the angle grinders, cutting range. Pferd thin cut-off wheels give fast, thin cuts with minimised burr formation; its width guide counts wheels up to 1.6mm at 50 to 125mm diameter and up to 2.0mm at 150 to 230mm diameter as thin. The wheel contains no fillers that could leave undesirable residues on the workpiece, so the surface can be welded immediately.

Where this product is used

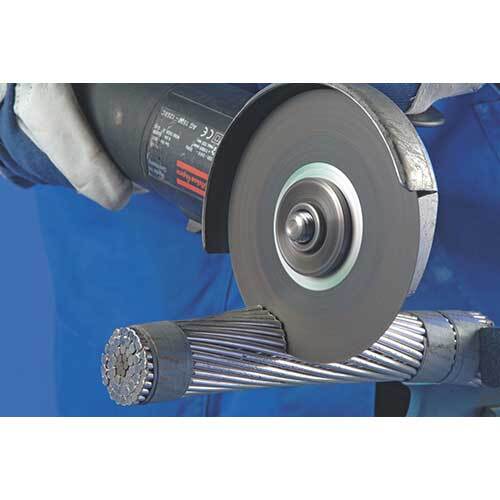

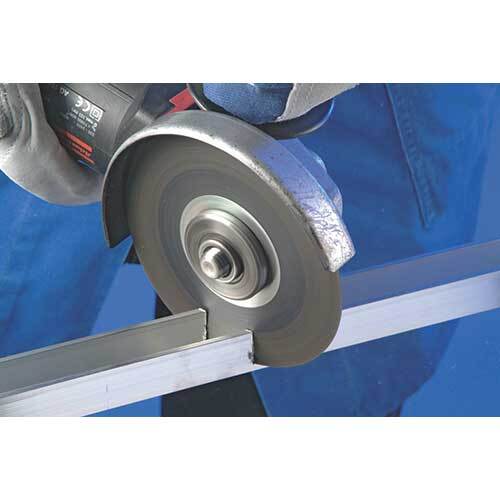

• Cutting sheet metal, profiles and solid material in aluminium and other non-ferrous metals, and cutting out holes
• Tool drive: angle grinders, cutting
• The label shows the material or materials each wheel is suitable for

Features

• Diameters 105 to 180mm, thicknesses 1.0 and 1.6mm, 16 and 22.23mm bore
• Maximum speed from 8,500 to 14,500rpm depending on diameter
• Flat design EHT (shape 41)
• Abrasive mixture and bond described as preventing clogging, even on soft, tough aluminium
• No fillers that could leave residues on the workpiece, so the surface can be welded immediately

Key specifications

Choosing the right option

Choose the diameter to suit your angle grinder and its guard, and the thickness to suit the job. Width guide: 1.0mm at 50 to 125mm diameter and 1.6mm at 150 to 230mm diameter for a universal width with a focus on speed and comfort; 1.6mm at 50 to 125mm diameter for a universal width with a focus on tool life and comfort. Check the Max. RPM for the item against the rated speed of your angle grinder before fitting it. Use a guard, wear eye protection, hearing protection, gloves and a dust mask, follow the safety instructions and not use a damaged tool.

Pferd is a founding member of the Organization for the Safety of Abrasives (oSa). Its grinding tools carry the oSa mark and the EN 12413 standard number for bonded abrasives such as cut-off wheels. Hand-held grinding tools with bond types B and BF, including cut-off wheels, must not be used after the expiry date marked on the label, in accordance with EN 12413; the date is given as month and year. Always observe the instructions on the grinding tool, the grinding machine and all accompanying user information; a tool that cannot be clearly identified should never be used.
