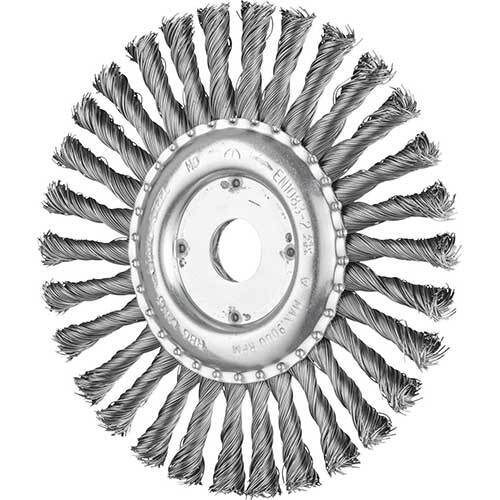

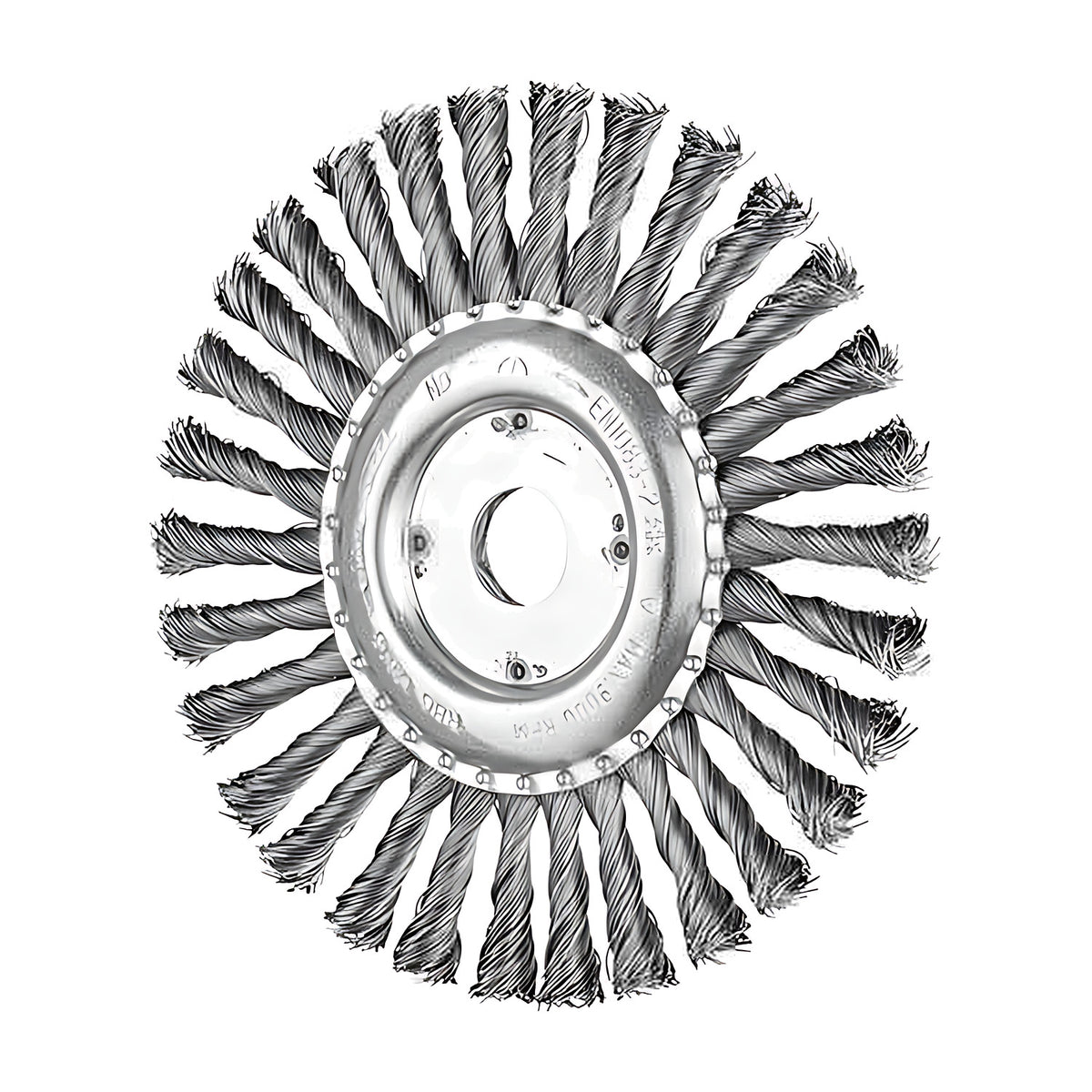

Pferd 43309015 Knotted Wheel Brush RBG 150 x 13 mm, Steel Wire 0.60 mm, 22.2 mm Hole
Available

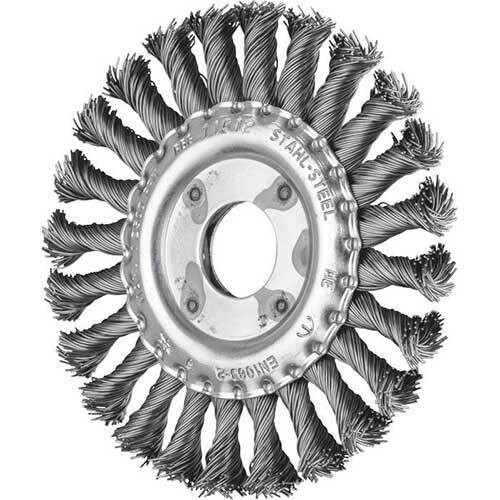

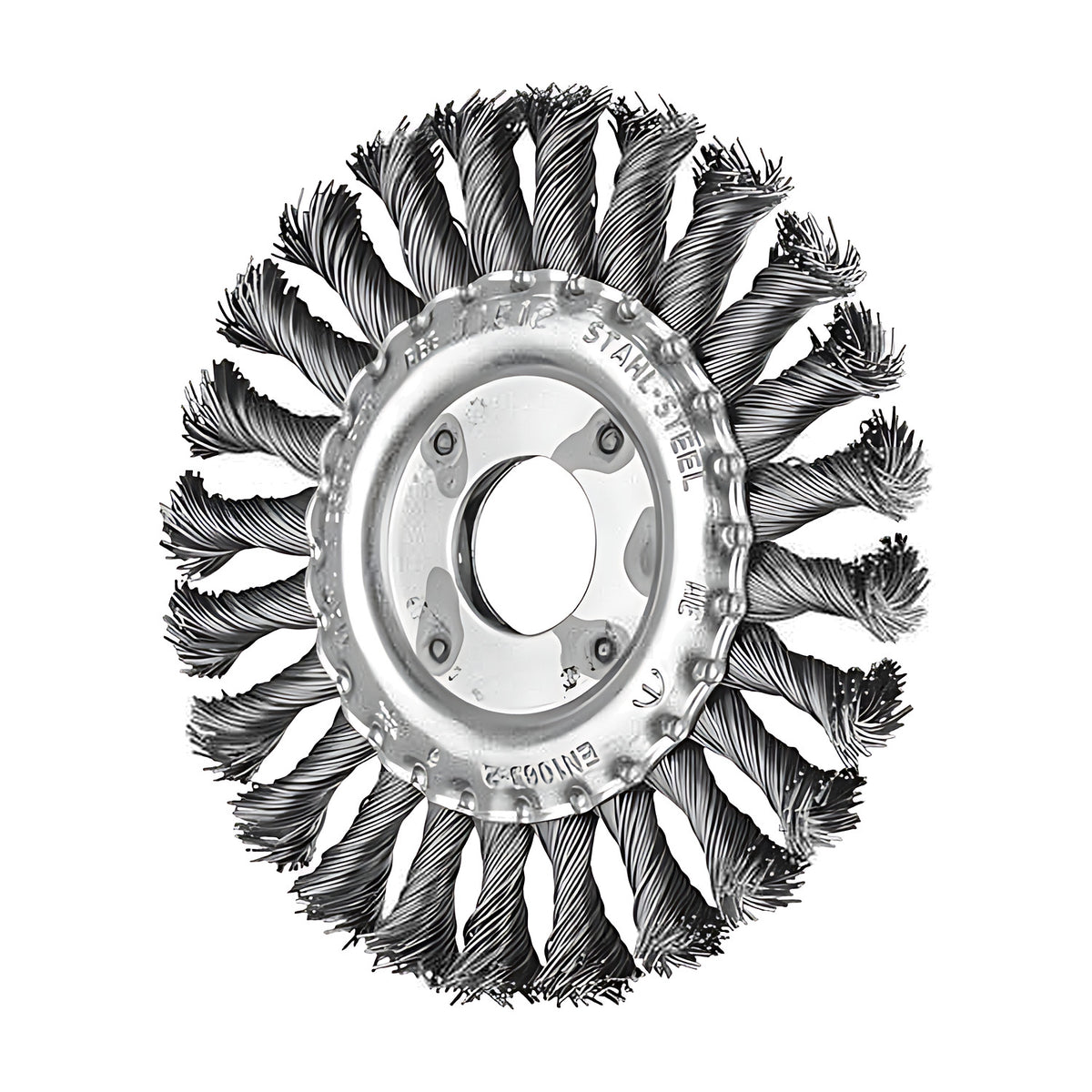

The Pferd knotted wheel brush RBG has a 22.2 mm hole and stiff wire knots. This page lists 2 items in steel wire: 115 x 12 mm with 0.50 mm wire (item 43312001) and 150 x 13 mm with 0.60 mm wire (item 43309015) (manufacturer-stated).

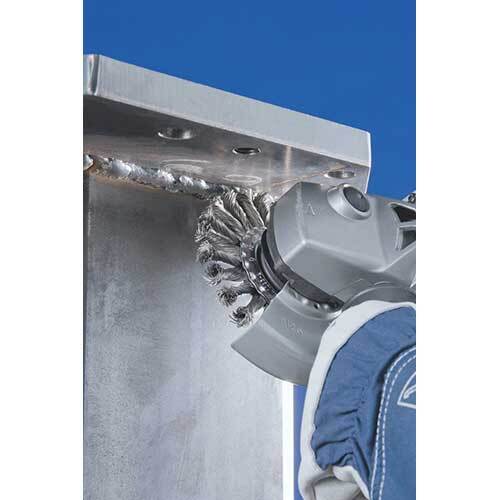

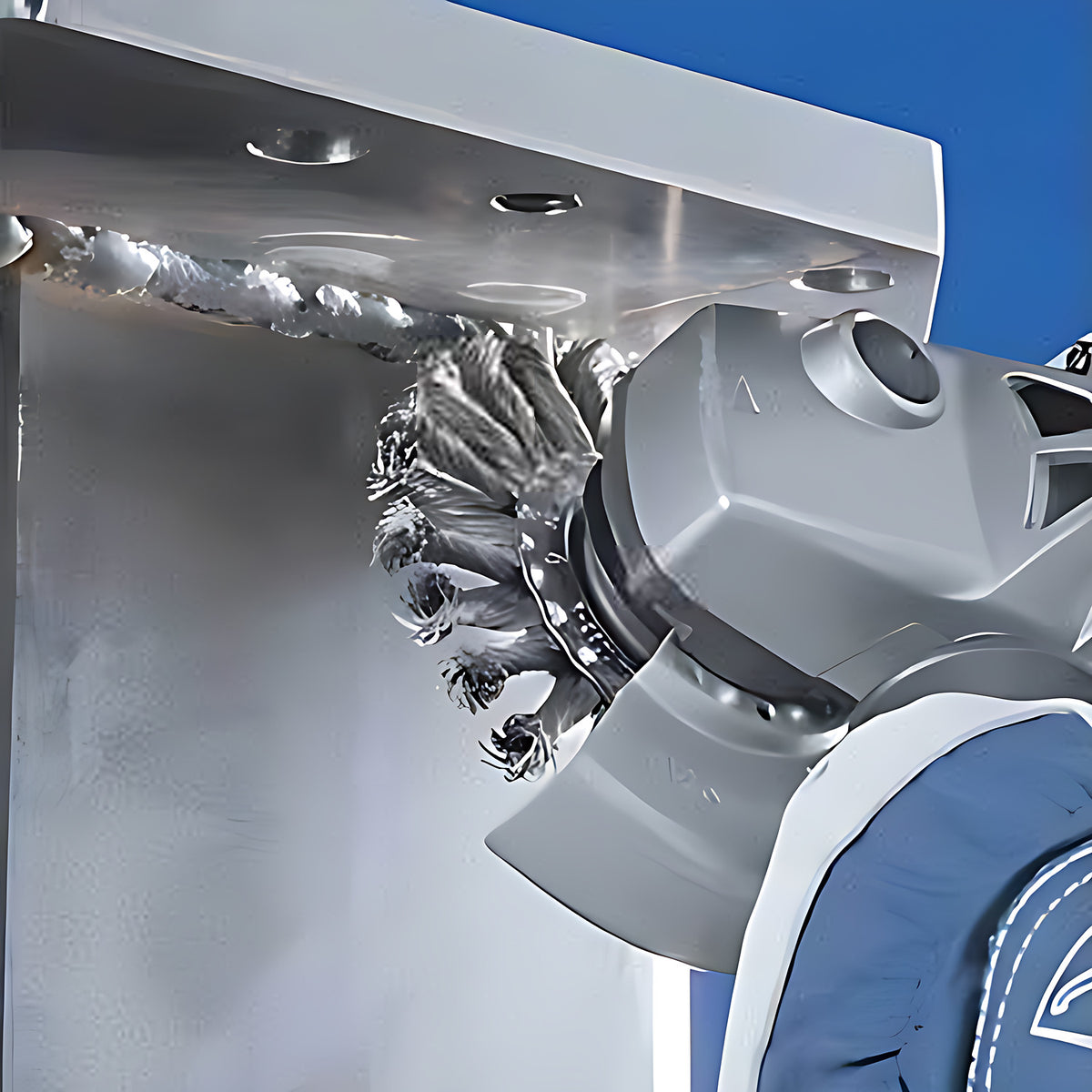

The catalogue describes the RBG as an aggressive brush for heavy-duty brushing in metalwork, such as descaling, derusting, deburring, cleaning weld seams and removing adhesive residues and spatter (manufacturer-stated).
Very stiff wire knots give an aggressive brushing effect (manufacturer-stated).
Optimum and maximum speeds depend on the brush size, so each item lists its own (manufacturer-stated).
Where this product is used
- Heavy-duty brushing in metalwork, such as descaling and derusting (manufacturer-stated)
- Deburring and cleaning weld seams (manufacturer-stated)
- Removing adhesive residues and spatter (manufacturer-stated)
- The catalogue's filament table rates steel wire as highly suitable for steel and cast iron, and suitable for plastics (manufacturer-stated)
Features
- Brush sizes 115 x 12 and 150 x 13 mm
- steel wire in knotted form (manufacturer-stated)
- 22.2 mm hole (manufacturer-stated)
- Optimum and maximum speeds listed per item (manufacturer-stated)
- Very stiff wire knots give an aggressive brushing effect (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Hole / thread (DA / DT) | 22.2 mm hole (manufacturer-stated) |
| Filament | Steel wire (ST) (manufacturer-stated) |
| Brush sizes (D x WF) | 115 x 12 mm and 150 x 13 mm |
Key specifications
| Model | Designation | Outer diameter (D) | Face width (WF) | Wire diameter (DF) | Optimum speed | Maximum speed |
|---|---|---|---|---|---|---|
| 43312001 | POS RBG 11512/22,2 ST 0,50 | 115 mm (manufacturer-stated) | 12 mm (manufacturer-stated) | 0.50 mm (manufacturer-stated) | 6,300 – 12,500 rpm (manufacturer-stated) | 12,500 rpm (manufacturer-stated) |
| 43309015 | POS RBG 15013/22,2 ST 0,60 | 150 mm (manufacturer-stated) | 13 mm (manufacturer-stated) | 0.60 mm (manufacturer-stated) | 5,000 – 10,000 rpm (manufacturer-stated) | 10,000 rpm (manufacturer-stated) |
Each item number is a separate size; the table shows the specifications for each item.
Selecting the right option
Choose the diameter and wire for the job; both items have a 22.2 mm hole. The wire diameter differs between the two items as well as the size. The catalogue's filament table rates steel wire as highly suitable for steel and cast iron, and suitable for plastics (manufacturer-stated). Never exceed the maximum permitted speed marked on the brush, and for hand-held tool drives the brush diameter should never exceed 180 mm (manufacturer-stated).
