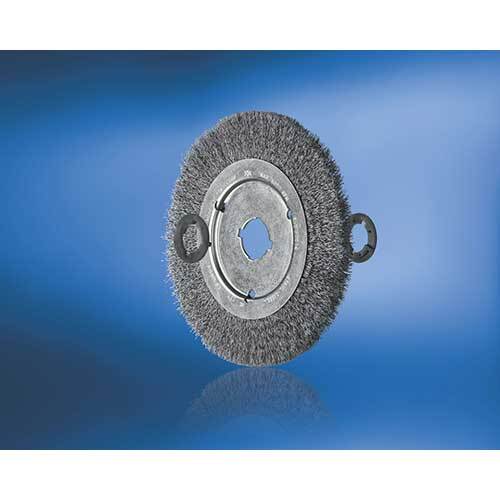

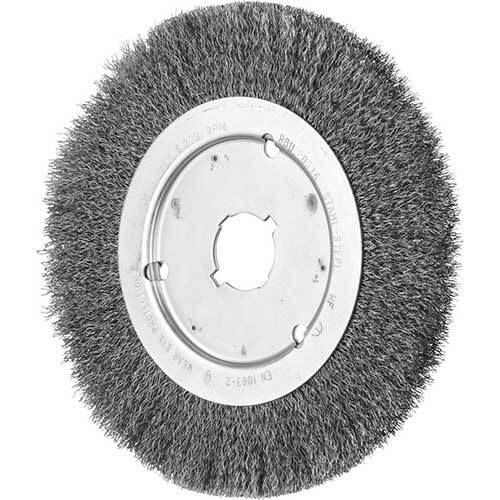

Pferd Slim Crimped Wheel Brush RBU 200 x 16 mm, Steel Wire 0.25 mm, 22.2 mm Hole (43506005)
Available
The Pferd slim crimped wheel brush 200 x 16mm, item 43506005, has 0.25mm steel wire and mounts on a 22.2mm hole.

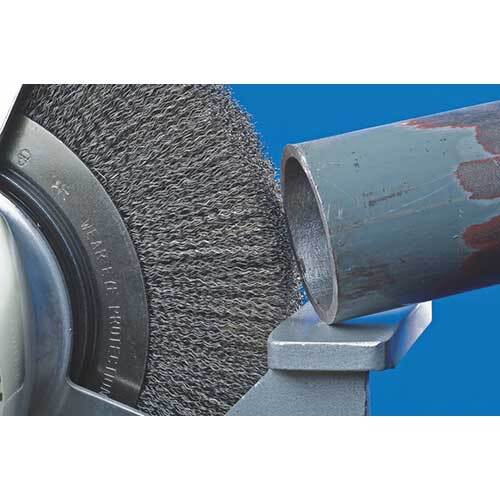

The slim RBU is suited to medium-duty hand-held or automated brushing of workpieces with large surfaces, with a variable hole diameter for commercially available stationary drive systems and bench grinders. Slim design allows bunching to create wide gapless rollers for a uniform surface finish. Optimum speed is 3,000 to 4,500rpm and the maximum permitted speed is 6,000rpm.
Where this product is used
- Medium-duty hand-held or automated brushing of workpieces with large surfaces
- Wide gapless rollers when brushes are bunched together
- Steel wire is highly suitable for steel and cast iron, and suitable for plastics
Features
- Brush size 200 x 16mm
- 0.25mm steel wire
- Mounting: 22.2mm hole
- Optimum speed 3,000 to 4,500rpm, maximum 6,000rpm
- Slim design allows bunching to create wide gapless rollers for a uniform surface finish
Key specifications
| Specification | Detail |
|---|---|
| Brand | Pferd |
| Designation | RBU 20016/22,2 ST 0,25 |
| Outer diameter (D) | 200mm |
| Face width (WF) | 16mm |
| Filament length (LT) | 44mm |
| Hole (DA) | 22.2mm hole |
| Max. hole in main body (DAM) | 31.8mm |
| Filament | Steel wire (ST) |
| Wire diameter (DF) | 0.25mm |
| Optimum speed | 3,000 to 4,500rpm |
| Maximum speed | 6,000rpm |
Choosing the right option
Choose the size, wire and mounting for the job and your machine: this item has a 22.2mm hole. Steel wire is highly suitable for steel and cast iron, and suitable for plastics. Never exceed the maximum permitted speed marked on the brush, and for hand-held tool drives the brush diameter should never exceed 180mm. It has adapter set AK 32 for slim RBU wheel brushes of 150mm diameter and above, to adjust the hole to the required dimension (see Pferd Adapter Set AS AK 32).
Related Pferd brushes: Pferd Wide Crimped Wheel Brush RBU 200 x 38mm, Stainless Steel Wire (INOX) 0.30mm, AK 32-2 Hole (43506003), Pferd Wide Crimped Wheel Brush RBU 200 x 25mm, Steel Wire 0.30mm, AK 32-2 Hole (43506101), Pferd Wide Crimped Wheel Brush RBU 200 x 38mm, Steel Wire 0.30mm, AK 32-2 Hole (43506001).
