Stenco 1A0624 V Pulley, A Section, 6-1/2 in OD, 1 in Bore
Available

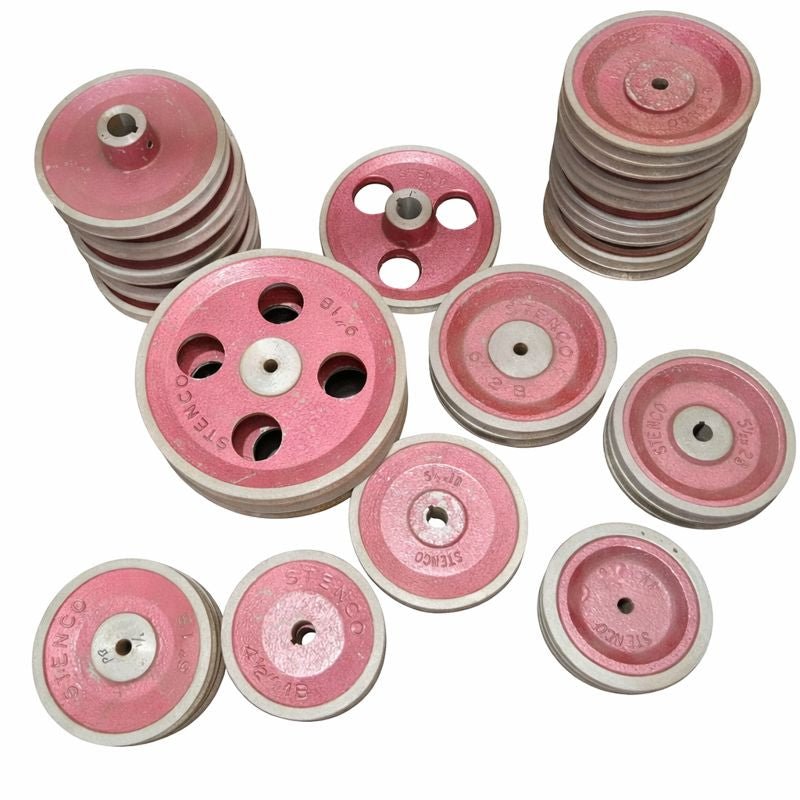

Image shown is for illustration purposes only.
This is a clearance item and is sold as-is. No returns or exchanges apply. Please contact us if you require further details or wish to inspect the item prior to purchase
Note: Pulleys are dirty and old, but they shouldn't affect performance.
These Stenco aluminium V pulleys are for A and B section V belts. The range here covers single and double groove pulleys with outside diameters from 4-1/2 in to 7 in (114.3 to 177.8 mm).
Pilot bore pulleys have a 1/2 in (12.7 mm) bore that you machine out to suit your shaft. The other pulleys are listed with a 5/8 in, 3/4 in or 1 in bore.
Choose the pulley by belt section, number of grooves, outside diameter and bore. Each model is listed below with its Stenco code.
Where this product is used
- V belt drives on industrial machinery
- Replacement pulleys for belt drives
- Custom drives where a pilot bore is machined to suit the shaft
Features
- Aluminium V pulley for A and B section belts
- Single and double groove models
- Outside diameters from 4-1/2 in to 7 in (114.3 to 177.8 mm)
- Pilot bore (1/2 in) or bored (5/8, 3/4 or 1 in) models
- Keyway sizes are listed for the 5/8 in, 3/4 in and B section 1 in bores
- Stenco model codes such as 1B0422, 2B0601 and 1A0704
Key specifications
| Specification | Detail |
|---|---|
| Brand | Stenco |
| Product | V pulley, pilot bore and bored |
| Material | Aluminium |
| Belt section | A and B |
| Grooves | Single and double |
| Outside diameter | 4-1/2 to 7 in (114.3 to 177.8 mm) |
| Bore | 1/2 in pilot bore; 5/8, 3/4 and 1 in bored |
| Models | A: 1A0624, 1A0704, 2A0521; B: 1B0422, 1B0423, 1B0501, 1B0504, 2B0421, 2B0601, 2B0522 |
Models
| Model | Section | Grooves | Outside diameter (in) | Outside diameter (mm) | Bore (in) |
|---|---|---|---|---|---|
| 1A0624 | A | 1 | 6-1/2 | 165.1 | 1 |
| 1A0704 | A | 1 | 7 | 177.8 | 1 |
| 1B0423 | B | 1 | 4-1/2 | 114.3 | 3/4 |
| 1B0422 | B | 1 | 4-1/2 | 114.3 | 5/8 |
| 1B0504 | B | 1 | 5 | 127 | 1 |
| 1B0501 | B | 1 | 5 | 127 | 1/2 (pilot) |
| 2A0521 | A | 2 | 5-1/2 | 139.7 | 1/2 (pilot) |
| 2B0421 | B | 2 | 4-1/2 | 114.3 | 1/2 (pilot) |
| 2B0522 | B | 2 | 5-1/2 | 139.7 | 5/8 |
| 2B0601 | B | 2 | 6 | 152.4 | 1/2 (pilot) |
Selecting and fitting
Match the belt section (A or B) to your belt and check the number of grooves. For a pilot bore pulley, check that the 1/2 in pilot bore leaves enough material to machine out to your shaft size.
Keyways: the 5/8 in and 3/4 in bores have a 3/16 in wide x 3/32 in high keyway, and the B section 1 in bore (1B0504) has a 1/4 in wide x 1/8 in high keyway. The keyway size for the 1 in bore A section pulleys (1A0624 and 1A0704) is not listed, so contact AIMS if you need it before ordering.
Dimensions are as listed by AIMS for each model and are for reference. Contact AIMS to confirm a measurement if it is critical to your application.
