Wiha pozidriv bits PZ0 to PZ4, PZ0 / 25
Available

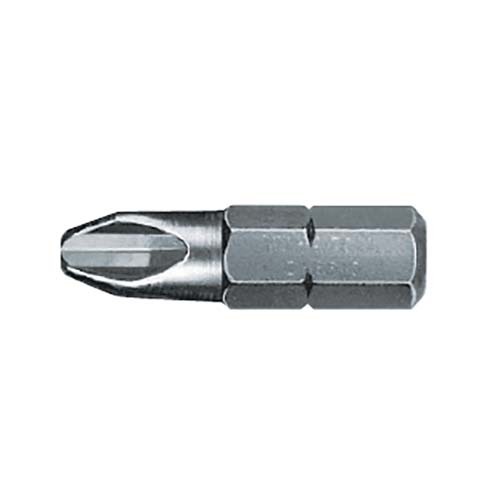

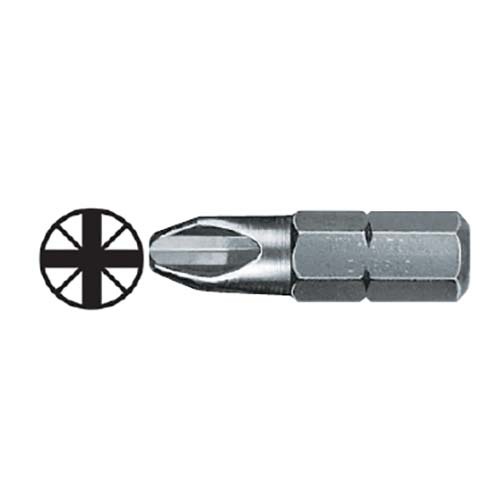

Wiha series 7012Z standard Pozidriv insert bits for the 1/4" hex drive (style C 6.3), in five articles from PZ0 to PZ4.
PZ0 to PZ3 are 25mm long and the PZ4 (01681) is 32mm. The series is standard bits in chrome-vanadium steel, through hardened, with the drive made to DIN 3126, ISO 1173, style C 6.3.
Where this product is used
- All types of screw applications in trade and industry
Features
- Chrome-vanadium steel, through hardened
- Drive to DIN 3126, ISO 1173, style C 6.3 (1/4" hex)
- Pozidriv sizes PZ0 to PZ4
- Overall length 25mm, or 32mm for the PZ4
Key specifications
| Specification | Detail |
|---|---|
| Brand | Wiha |
| Series | 7012Z |
| Drive | 1/4" hex, DIN 3126, ISO 1173, style C 6.3 |
| Material | Chrome-vanadium steel, through hardened |
| Pozidriv sizes | PZ0, PZ1, PZ2, PZ3 and PZ4 |
| Overall length | 25mm (PZ0 to PZ3), 32mm (PZ4) |
| Pozidriv size | PZ0, PZ1, PZ2, PZ3, PZ4 |
Choosing the right option
Choose the Pozidriv size that matches the screw head. Pozidriv (PZ) bits are not the same as Phillips (PH) bits, so match the marking on the screw. The PZ4 (01681) is the only article here with a 32mm length. For longer Pozidriv bits (style E 6.3) see the Wiha Pozidriv Power Insert Bit 1/4" Hex.
See also: Wiha Pozidriv Power Insert Bit 1/4" Hex, Wiha Pozidriv Power Insert Bit 1/4" Hex With Torsion Zone, Phillips Insert Bit 1/4" Hex.
| Option | Part number | SKU |
|---|---|---|
| PZ0 / 25 | 05300(7012Z) | A0144159 |
| PZ1 / 25 | 01688(7012Z) | A0144160 |
| PZ2 / 25 | 01689(7012Z) | A0144161 |
| PZ3 / 25 | 01690(7012Z) | A0144162 |
| PZ3 / 32 | 01681(7012Z) | A0144163 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Pozidriv Insert Bit 1/4" Hex: PZ0 / 25
SKU: A0144159 | Model: 05300(7012Z)
Wiha 05300(7012Z): PZ0 Pozidriv insert bit, 25mm long, 1/4" hex drive to DIN 3126 and ISO 1173, style C 6.3.
