Precision Brand Steel Shim Roll 6 x 100 in, 0.001 in | SHIM16130
Available

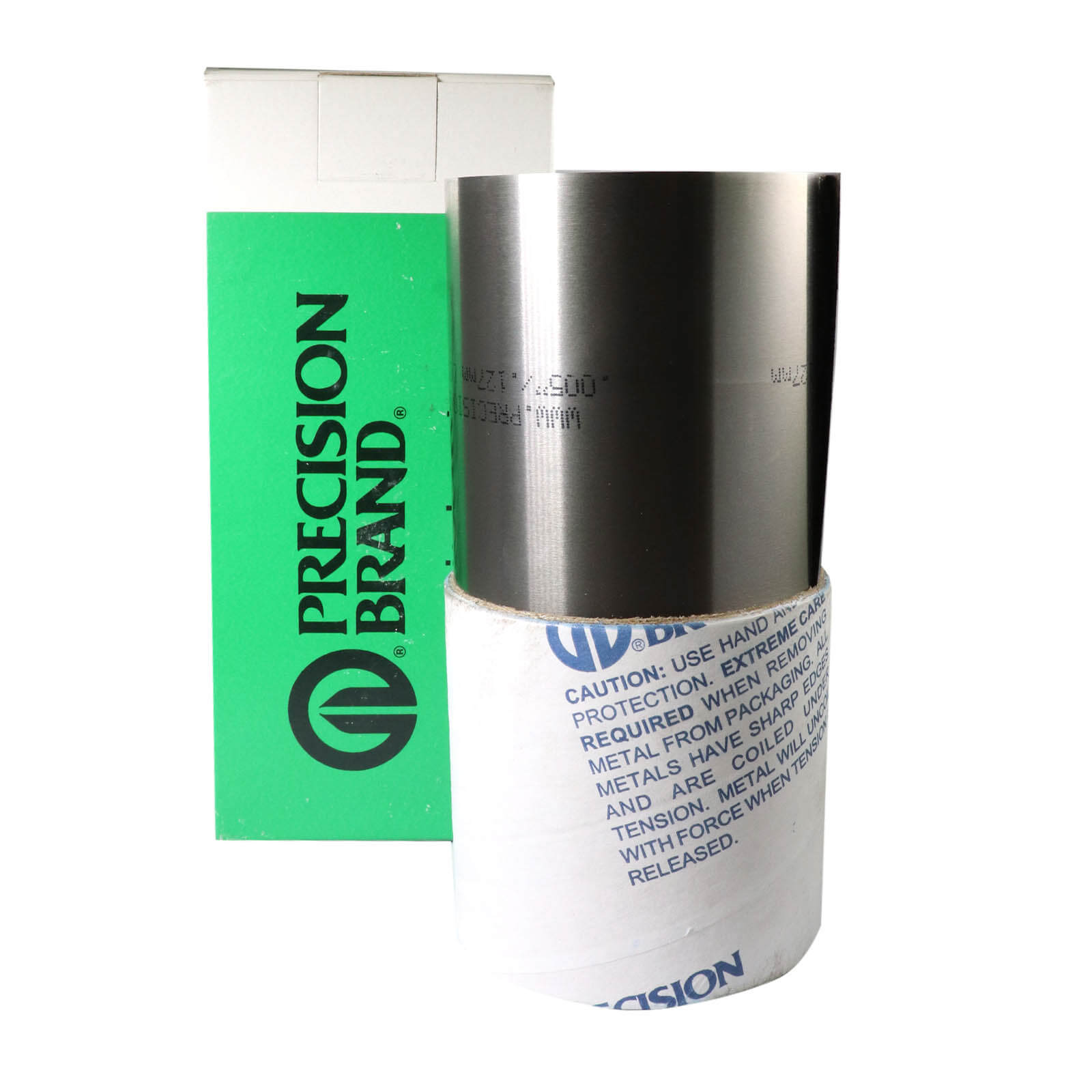

Precision Brand steel shim stock is supplied in rolls of 6 x 100 in (152 x 2,540 mm) and 12 x 120 in (305 x 3,048 mm). There are 22 options, from 0.001 in (0.025 mm) to 0.031 in (0.787 mm) thick, and each option is one roll in a single thickness.
The shim stock is full hard, cold rolled low carbon 1008-1010 steel, and it is marked with the material type and thickness. It is supplied one roll per box, and you cut it to size on the job. Made in USA (manufacturer-stated). Four of the options are special order, and these are marked in the options table.
Where this product is used
- Filling small gaps and adjusting clearances
- Aligning and levelling machinery
- Toolroom work and die setting
- Cutting shims to size on the job
Features
- Full hard, cold rolled low carbon 1008-1010 steel
- Marked with the material type and thickness
- Rolls of 6 x 100 in (152 x 2,540 mm) and 12 x 120 in (305 x 3,048 mm)
- 14 thicknesses, from 0.001 to 0.031 in (0.025 to 0.787 mm)
- One roll per box
- Made in USA (manufacturer-stated)
Key specifications
| Specification | Detail |
|---|---|
| Brand | Precision Brand |
| Material | Full hard, cold rolled low carbon 1008-1010 steel |
| Roll sizes | 6 x 100 in (152 x 2,540 mm) and 12 x 120 in (305 x 3,048 mm) |
| Thickness range | 0.001 to 0.031 in (0.025 to 0.787 mm) |
| Supplied as | One roll per box |
| Origin | Made in USA (manufacturer-stated) |
Options and part numbers
| Option | Part number | Availability |
|---|---|---|
| 6 x 100 in (152 x 2,540 mm), 0.001 in (0.025 mm) | SHIM16130 | - |
| 6 x 100 in (152 x 2,540 mm), 0.002 in (0.051 mm) | SHIM16195 | - |
| 6 x 100 in (152 x 2,540 mm), 0.003 in (0.076 mm) | SHIM16245 | - |
| 6 x 100 in (152 x 2,540 mm), 0.004 in (0.102 mm) | SHIM16280 | - |
| 6 x 100 in (152 x 2,540 mm), 0.005 in (0.127 mm) | SHIM16320 | - |
| 6 x 100 in (152 x 2,540 mm), 0.006 in (0.152 mm) | SHIM16345 | - |
| 6 x 100 in (152 x 2,540 mm), 0.007 in (0.178 mm) | SHIM16370 | Special order |
| 6 x 100 in (152 x 2,540 mm), 0.008 in (0.203 mm) | SHIM16395 | - |
| 6 x 100 in (152 x 2,540 mm), 0.010 in (0.254 mm) | SHIM16450 | - |
| 6 x 100 in (152 x 2,540 mm), 0.012 in (0.305 mm) | SHIM16480 | Special order |
| 6 x 100 in (152 x 2,540 mm), 0.015 in (0.381 mm) | SHIM16530 | - |
| 6 x 100 in (152 x 2,540 mm), 0.020 in (0.508 mm) | SHIM16590 | - |
| 6 x 100 in (152 x 2,540 mm), 0.025 in (0.635 mm) | SHIM16630 | Special order |
| 6 x 100 in (152 x 2,540 mm), 0.031 in (0.787 mm) | SHIM16660 | Special order |
| 12 x 120 in (305 x 3,048 mm), 0.005 in (0.127 mm) | SHIM16330 | - |
| 12 x 120 in (305 x 3,048 mm), 0.006 in (0.152 mm) | SHIM16355 | - |
| 12 x 120 in (305 x 3,048 mm), 0.007 in (0.178 mm) | SHIM16380 | - |
| 12 x 120 in (305 x 3,048 mm), 0.008 in (0.203 mm) | SHIM16405 | - |
| 12 x 120 in (305 x 3,048 mm), 0.010 in (0.254 mm) | SHIM16460 | - |
| 12 x 120 in (305 x 3,048 mm), 0.012 in (0.305 mm) | SHIM16490 | - |
| 12 x 120 in (305 x 3,048 mm), 0.015 in (0.381 mm) | SHIM16540 | - |
| 12 x 120 in (305 x 3,048 mm), 0.020 in (0.508 mm) | SHIM16600 | - |
Selecting the right option
Choose the roll width and length, then the thickness you need. Each option is a single thickness. Plain steel shim is not corrosion resistant, so choose stainless steel shim stock for damp or corrosive conditions. If you are unsure which thickness you need, contact AIMS.
Related products
See also Precision Brand Brass Shim Stock Roll - Imperial, Precision Brand Stainless Shim Stock Roll - Imperial, Precision Brand Steel Shim Assortment Kit, 12 Piece 6 x 12 in and Precision Brand Stainless Steel Slotted Shim - Metric.
