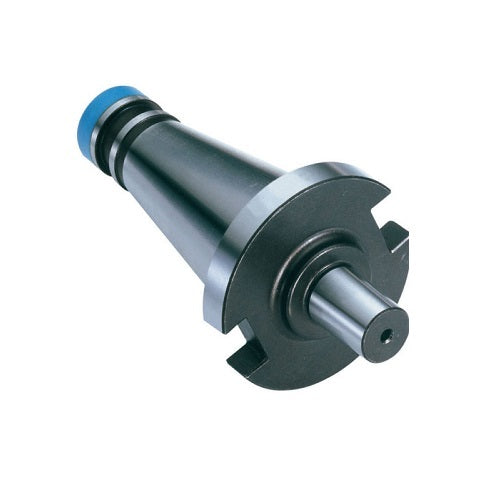

Shin-Yain NT(ISO) Drill Chuck Arbor, 5/8 x 11
Available
The Shin-Yain imperial drill chuck arbor has an NT(ISO) 7:24 shank at one end and a Jacobs taper at the other, with an imperial thread. The Jacobs taper end takes a drill chuck with a matching JT bore.
Three models are available: NT(ISO) 30 with JT3 (1/2-12 thread), NT(ISO) 30 with JT6 (1/2 thread) and NT(ISO) 40 with JT6 (5/8 x 11 thread). Match the NT(ISO) size to your spindle and the JT number to your drill chuck. Use the metric-thread arbor if your machine has a metric draw bar.
Where this product is used
- Mounting a drill chuck on a machine with an NT(ISO) spindle and an imperial draw bar
- Drilling, reaming and tapping set-ups using a Jacobs taper chuck
- Workshop and toolroom machines
Features
- NT(ISO) 30 and 40 shanks (7:24)
- Jacobs taper JT3 or JT6 for mounting a drill chuck
- Imperial thread: 1/2-12, 1/2 or 5/8 x 11
- Three models: SY81533-IMP, SY81536-IMP and SY81546-IMP
Key specifications
| Specification | Detail |
|---|---|
| Brand | Shin-Yain |
| Product | Drill chuck arbor, imperial thread |
| Shank | NT(ISO) 30 and 40 (7:24) |
| Chuck taper | Jacobs taper JT3 and JT6 |
| Thread (inch) | 1/2-12, 1/2 and 5/8 x 11 |
| Models | SY81533-IMP, SY81536-IMP, SY81546-IMP |
Choosing the right option
Check the shank size against your spindle, the JT number against your drill chuck and the thread against your draw bar.
Specifications are for each model.
| Option | Part number | SKU |
|---|---|---|
| 1/2-12 | A0108602 | |
| 1/2 | A0108603 | |
| 5/8 x 11 | A0108605 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Shin-Yain Drill Chuck Arbor, NT(ISO) 30/40 to Jacobs Taper JT3/JT6, Imperial Thread: 5/8 x 11
SKU: A0108605 | Model: SY81546-IMP
Shin-Yain A0108605 is a NT(ISO) Drill Chuck Arbor, 5/8 x 11. Product: Shin-Yain Drill Chuck Arbor. Model: SY81546-IMP.
