Shin-Yain NT(ISO) and BT Drill Chuck Arbor
Available
The Shin-Yain drill chuck arbor has a 7:24 shank at one end and a Jacobs taper at the other. The Jacobs taper end takes a drill chuck with a matching JT bore, so a drill chuck can be mounted on a machine with an NT(ISO) or BT spindle.
Six models are available. NT(ISO) 30 comes with JT3 or JT6 and an M12 x 1.75 thread, and NT(ISO) 40 comes with JT3 or JT6 and an M16 x 2.0 thread. BT 30 (JT6, M12 x 1.75) and BT 40 (JT6, M16 x 2.0) are also available. Match the shank (NT(ISO) or BT, and the size) to your spindle and the JT number to your drill chuck. Overall lengths are 111, 117, 138 and 175mm depending on the model.
Where this product is used
- Mounting a drill chuck on a machine with an NT(ISO) or BT spindle
- Drilling, reaming and tapping set-ups using a Jacobs taper chuck
- CNC machining centres and workshop machines
Features
- NT(ISO) 30 and 40 shanks, and BT 30 and 40 shanks (7:24)
- Jacobs taper JT3 or JT6 for mounting a drill chuck
- Metric thread: M12 x 1.75 or M16 x 2.0
- Overall length 111, 117, 138 or 175mm
- Six models: SY81533, SY81536, SY16506, SY81543, SY81546 and SY16524
Key specifications
| Specification | Detail |
|---|---|
| Brand | Shin-Yain |
| Product | Drill chuck arbor |
| Shank | NT(ISO) 30 and 40, BT 30 and 40 (7:24) |
| Chuck taper | Jacobs taper JT3 and JT6 |
| Thread | M12 x 1.75 and M16 x 2.0 |
| Overall length | 111 to 175mm |
| Models | SY81533, SY81536, SY16506, SY81543, SY81546, SY16524 |
Choosing the right option
Check the shank (NT(ISO) or BT) and size against your spindle, and the JT number against your drill chuck. The thread size depends on the shank size: M12 x 1.75 for 30 and M16 x 2.0 for 40.
Specifications are for each model.
| Option | Part number | SKU |
|---|---|---|
| M12 x 1.75 / 111 / 3 | A0108595 | |
| M12 x 1.75 / 111 / 6 | A0108596 | |
| M12 x 1.75 / 117 / 6 | A0108599 | |
| M16 X 2.0 / 138 / 3 | A0108597 | |
| M16 X 2.0 / 138 / 6 | A0108598 | |
| M16 X 2.0 / 175 / 6 | A0108600 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

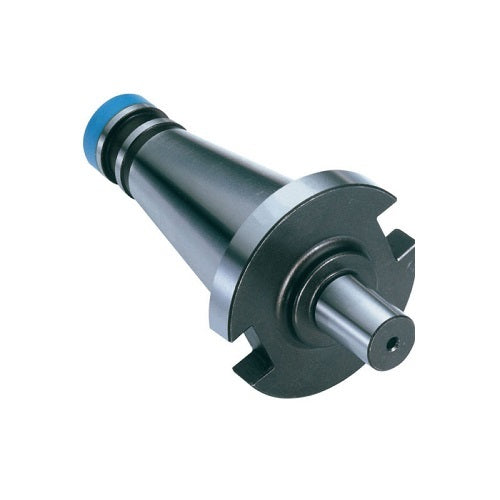

Shin-Yain Drill Chuck Arbor, NT(ISO) and BT 30/40 to Jacobs Taper JT3/JT6, Metric Thread: M16 X 2.0 / 175 / 6
SKU: A0108600 | Model: SY16524
Shin-Yain SY16524 drill chuck arbor with a BT 40 shank and a Jacobs taper JT6, M16 X 2.0 thread, 175mm overall length.
