Shin-Yain SY81201 R-8 to Morse Taper #1 Sleeve
Available

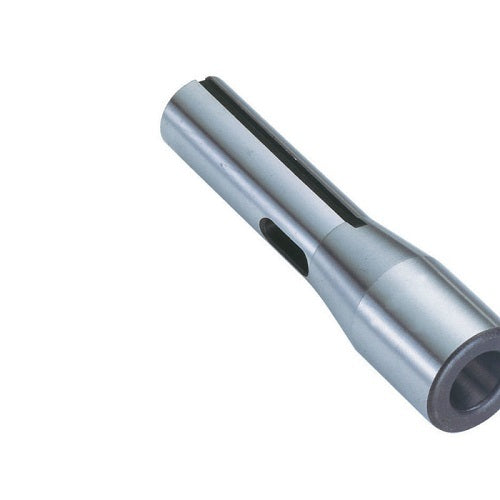

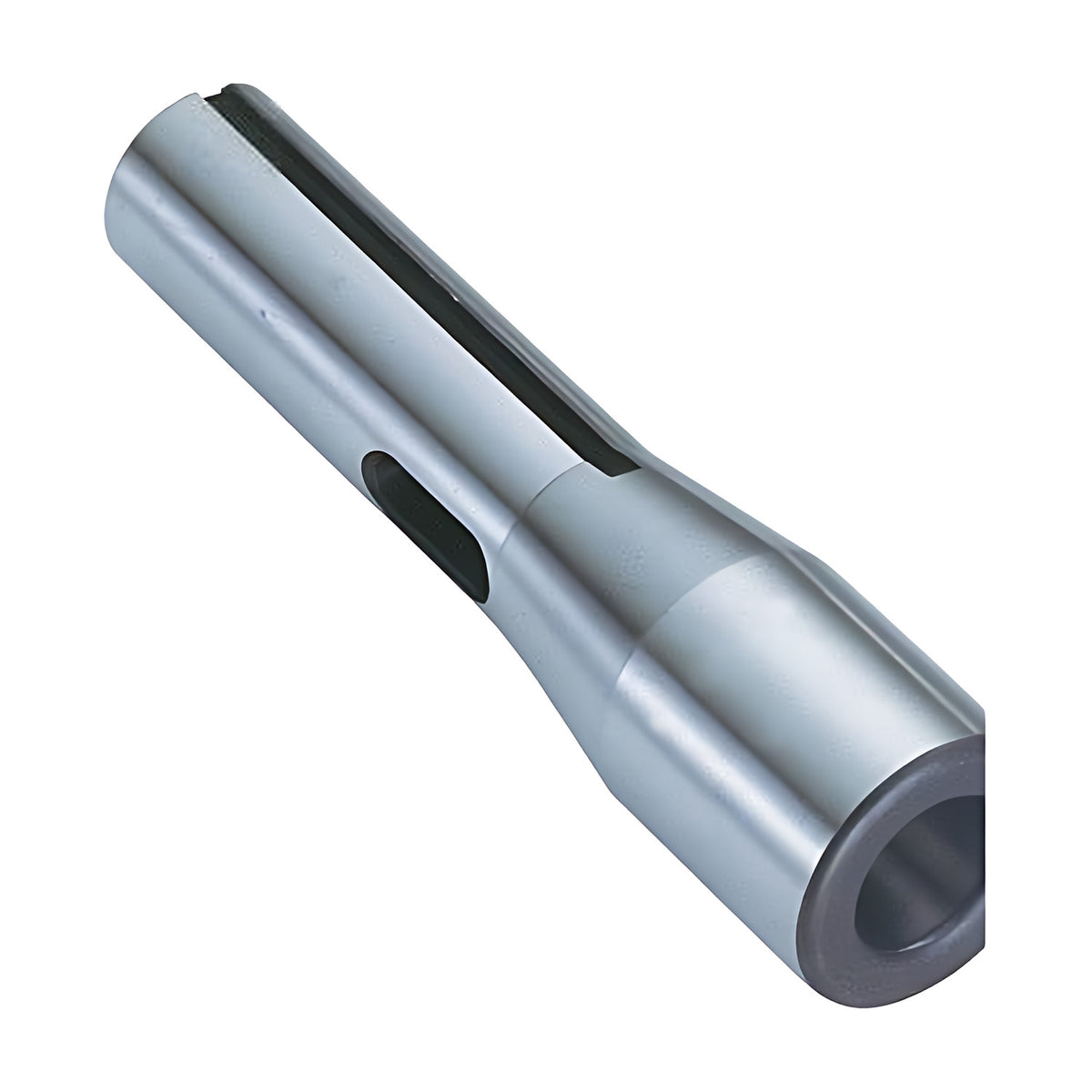

The Shin-Yain drill sleeve has an R-8 shank and a Morse taper socket. It lets you run Morse taper drills, reamers and other Morse taper tooling in a machine with an R-8 spindle, such as a Bridgeport-type knee mill.
Four sizes are available, with a Morse taper #1, #2, #3 or #4 socket. The sleeve has a 7/16-20 internal thread for the draw bar.
Match the Morse taper number to the tool shank you want to fit. Overall lengths are 124, 136.5, 150 and 170 mm.
Where this product is used
- Running Morse taper drills and reamers in an R-8 spindle
- Bridgeport-type knee mills and other machines with an R-8 spindle
- Workshop and toolroom set-ups
Features
- R-8 shank to Morse taper socket
- Four sizes: Morse taper #1, #2, #3 and #4
- Internal thread 7/16-20 for the draw bar
- Lets Morse taper tooling run in an R-8 spindle
- Shin-Yain model numbers SY81201 to SY81204
Key specifications
| Specification | Detail |
|---|---|
| Brand | Shin-Yain |
| Product | Drill sleeve |
| Spindle shank | R-8 |
| Morse taper socket | #1, #2, #3 and #4 |
| Internal thread | 7/16-20 |
| Overall length | 124 to 170 mm |
| Models | SY81201, SY81202, SY81203, SY81204 |
Models
| Model | Shank | Morse taper socket | Overall length (mm) |
|---|---|---|---|
| SY81201 | R-8 | #1 | 124 |
| SY81202 | R-8 | #2 | 136.5 |
| SY81203 | R-8 | #3 | 150 |
| SY81204 | R-8 | #4 | 170 |
Selecting and fitting
Check that the sleeve matches your machine and your tooling: the shank is R-8 and the socket is the Morse taper number shown for each model. The sleeve has a 7/16-20 internal thread for the draw bar.
Specifications are as listed for each model. Contact us to confirm a dimension if it is critical to your application.
