Precision Brand metric and 1 in square key steel KS1X1
Available
This Precision Brand metric square key steel comes in 13 sizes and is supplied in 300mm lengths, with the size marked on each piece. The sizes are 4 x 4, 5 x 5, 6 x 6, 7 x 7, 8 x 8, 10 x 10, 12 x 12, 14 x 14, 16 x 16, 18 x 18, 20 x 20, 22 x 22 and 25 x 25mm.
The key steel is cold drawn C1020 to C1045 steel, plated for rust prevention and gold dichromated for easier identification. Most dimension tolerances are oversized, so the key fits tightly in the keyway for positive, zero backlash power transmission.
Where this product is used
- Power transmission, where a key drives a pulley, coupling, propeller or drum from a shaft
- Keyway fitting by manufacturers and fitters
- Die setting
Features
- 13 sizes, from 4 x 4 to 25 x 25mm
- 300mm lengths, with the size marked on each piece
- Made from cold drawn C1020 to C1045 steel
- Plated for rust prevention and gold dichromated for easier identification
- Most dimension tolerances are oversized for a tight keyway fit and zero backlash power transmission
Key specifications
| Specification | Detail |
|---|---|
| Brand | Precision Brand |
| Product | Square key steel |
| Sizes | 13 sizes (metric), plus 1 imperial size |
| Length | 300mm |
| Material | Cold drawn C1020 to C1045 steel |
| Finish | Plated for rust prevention and gold dichromated for easier identification |
Choosing the right option
Match the key to the keyway on your shaft and hub, using the size in the options table. Square key steel suits a keyway where the width and height are equal. Imperial and metric keyways are not interchangeable, so check the unit on your shaft. Key steel is supplied in 300mm lengths and is cut to the length you need.
See also: Precision Rectangle Key Steel, Metric Steel - 7 x 8 to 22 x 40mm, Precision Metric Key Steel 300mm Long - Zinc Plated, Precision Square Key Steel, Metric Stainless Steel 303/304.
| Option | Part number | SKU |
|---|---|---|

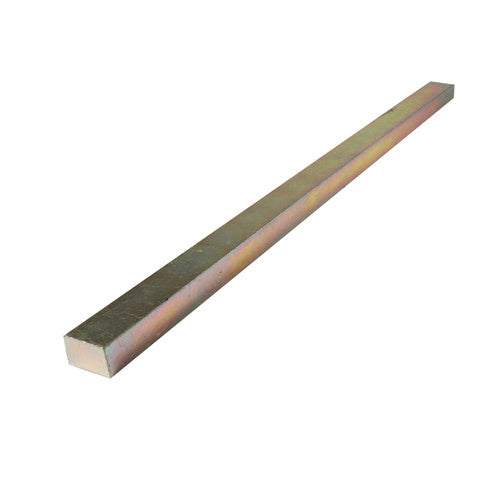

| 1" x 1" | KS1X1 | A0154762 |
| 4 x 4mm | KS4X4MM | A0154770 |
| 5 x 5mm | KS5X5MM | A0154771 |
| 6 x 6mm | KS6X6MM | A0154772 |

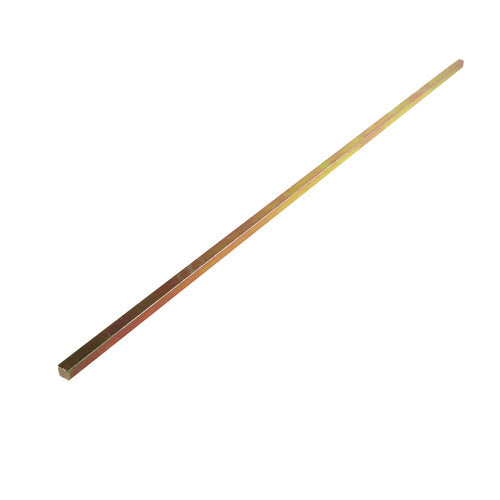

| 7 x 7mm | KS7X7MM | A0154773 |
| 8 x 8mm | KS8X8MM | A0154774 |
| 10 x 10mm | KS10X10MM | A0154766 |
| 12 x 12mm | KS12X12MM | A0154768 |
| 14 x 14mm | KS14X14MM | A0154767 |
| 16 x 16mm | KS16X16MM | A0154769 |
| 18 x 18mm | KS18X18MM | A0154761 |
| 20 x 20mm | KS20X20MM | A0154763 |
| 22 x 22mm | KS22X22MM | A0154764 |

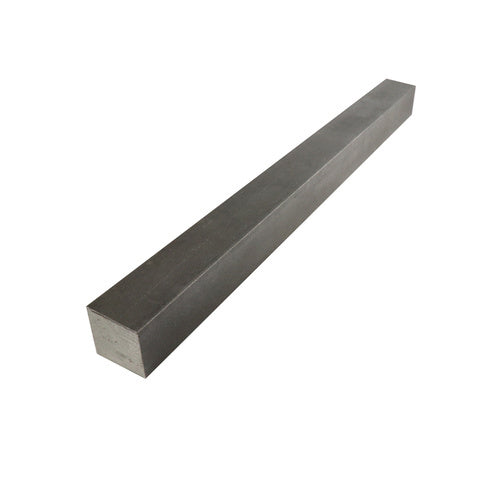

| 25 x 25mm | KS25X25MM | A0154765 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Precision Square Key Steel, Metric Steel - 4 to 25 mm: 1" x 1"
SKU: A0154762 | Model: KS1X1
Key Steel Size 1" x 1". Square Key Steel Metric C1020 to C1045 Steel. Manufacturers, Fitters, Die Setting. Square Keystock, Metric. Used in Power Transmission applications to drive pulleys, couplings, propellers & drums via a drive shaft. Key Points:. Plated for rust prevention and sizes are clearly marked on each piece. Most tolerances on dimensions are oversized. Metric sizes are cold drawn C1020 to C1045 steel.
